BrandMAZAK

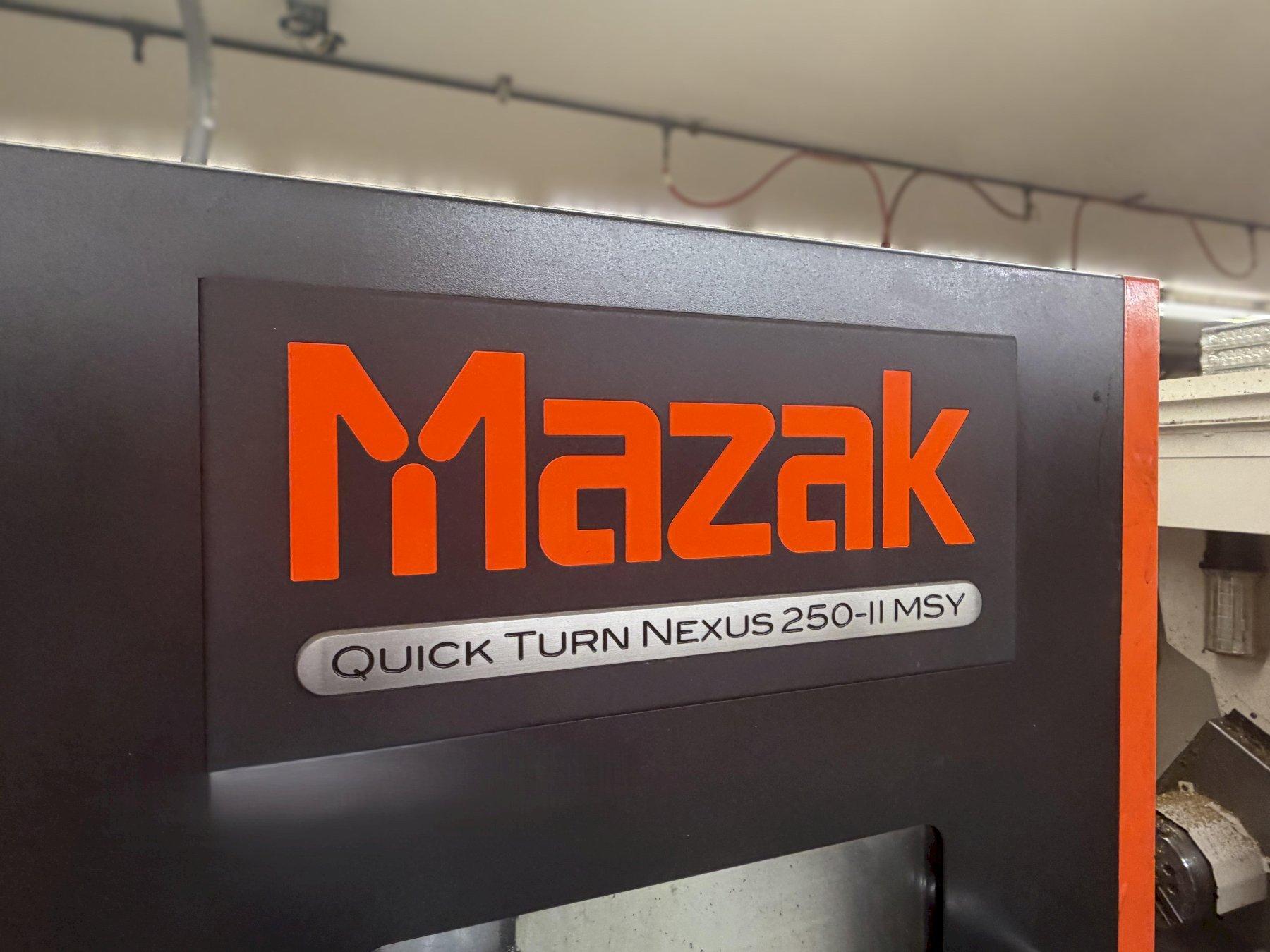

ModelQUICK TURN NEXUS 250MSY-II
TypeTurning Centers
Stock #7180
ConditionNot specified
Year2014
LocationFullerton, California
United States
| Maximum Swing Over Bed | 26.57" |
| Maximum Machining Diameter | 14.96" |
| Maximum Machining Length | 21.27" |
| Maximum Bar Work Capacity | 3.03" |
| 1st Spindle Motor | AC 35 HP (26 KW) |
| 1st Spindle Speed | 4,000 RPM |
| 1st Spindle Bore / Nose | 3.58: (91MM) / A2-8 |
| 2nd Spindle Motor | 15 HP |
| 2nd Spindle Speed | 6,000 RPM |
| 2nd Spindle Bore / Nose | 2.05″ (52 MM) / A2-5 |

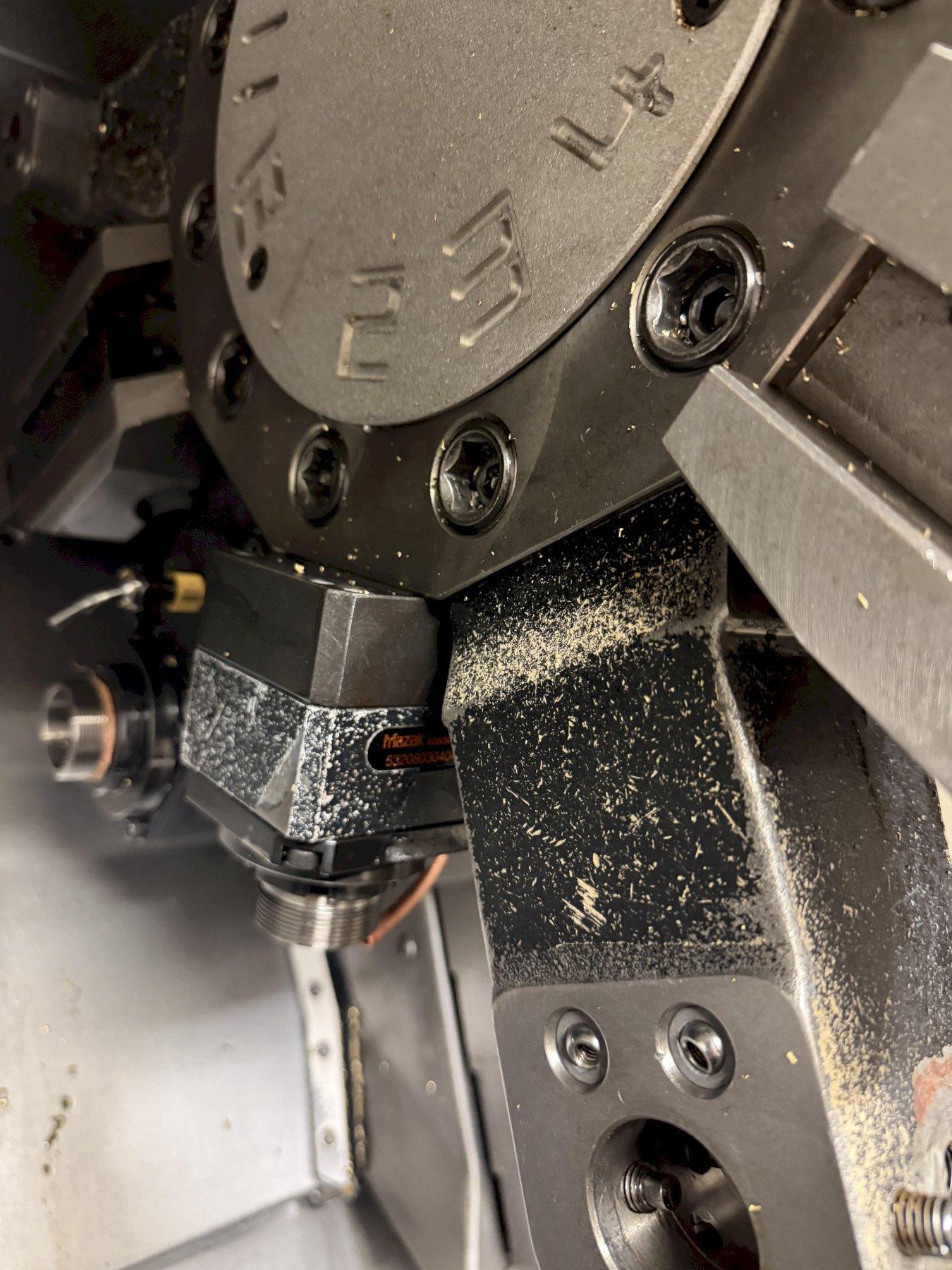

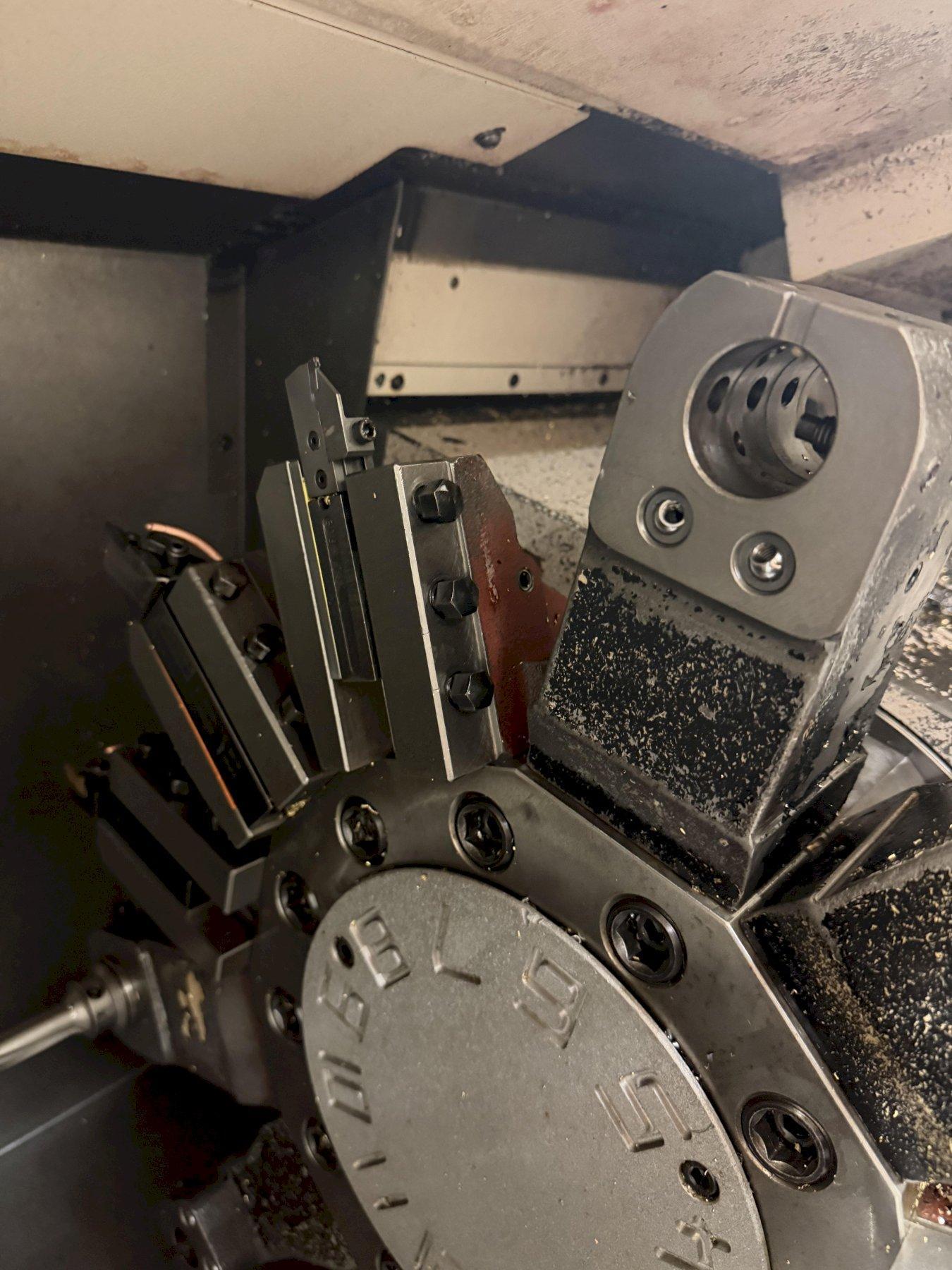

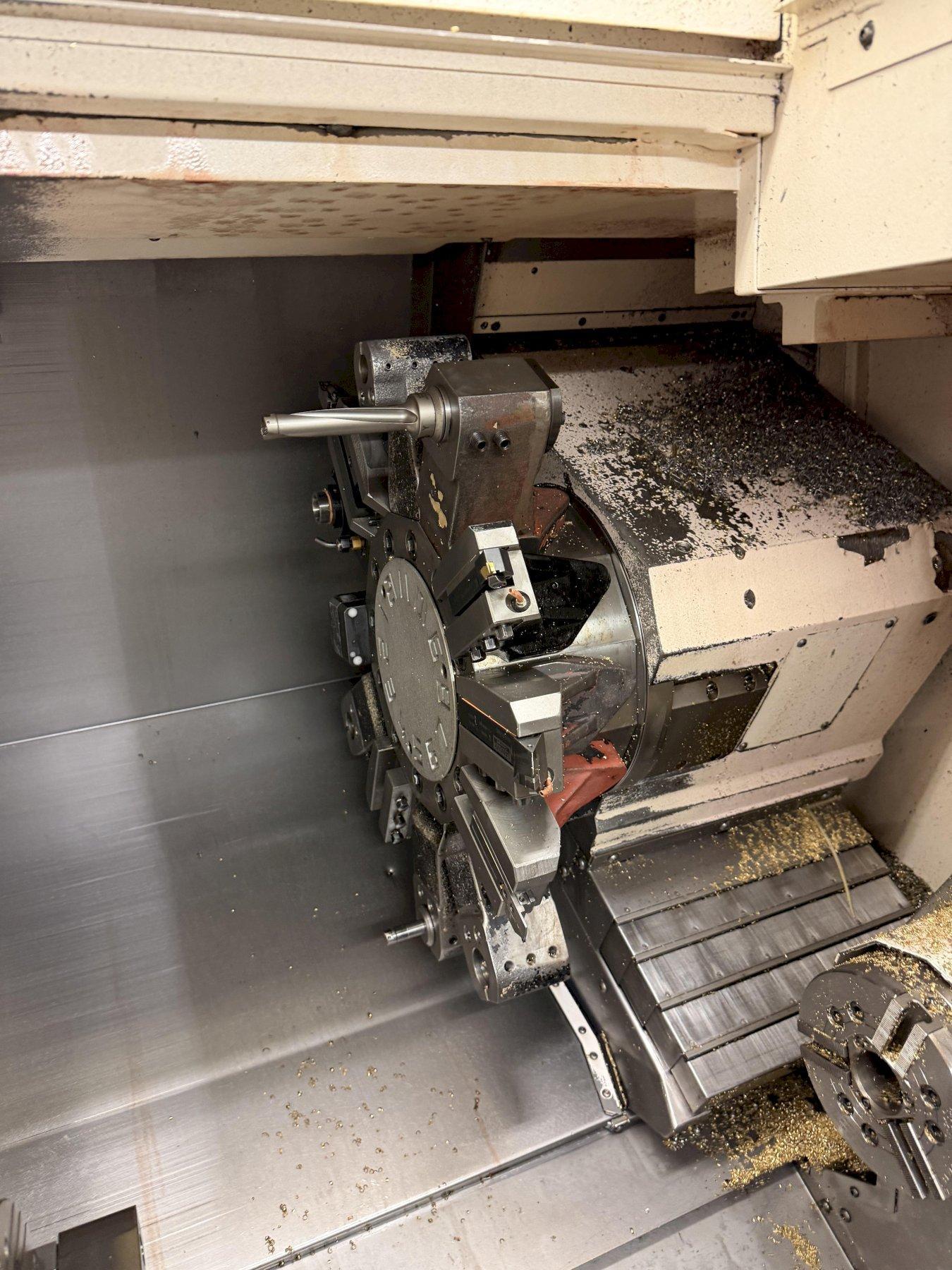

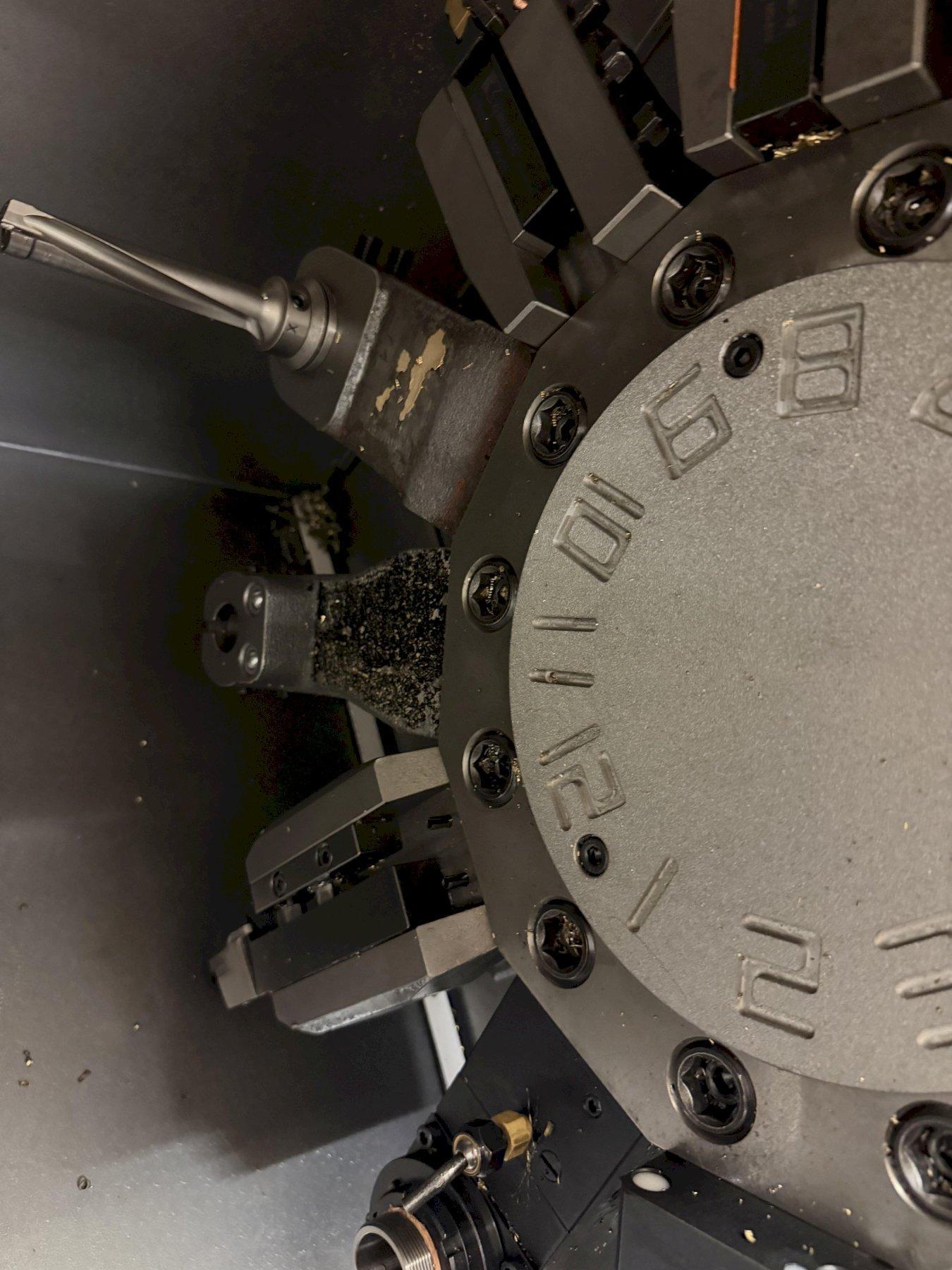

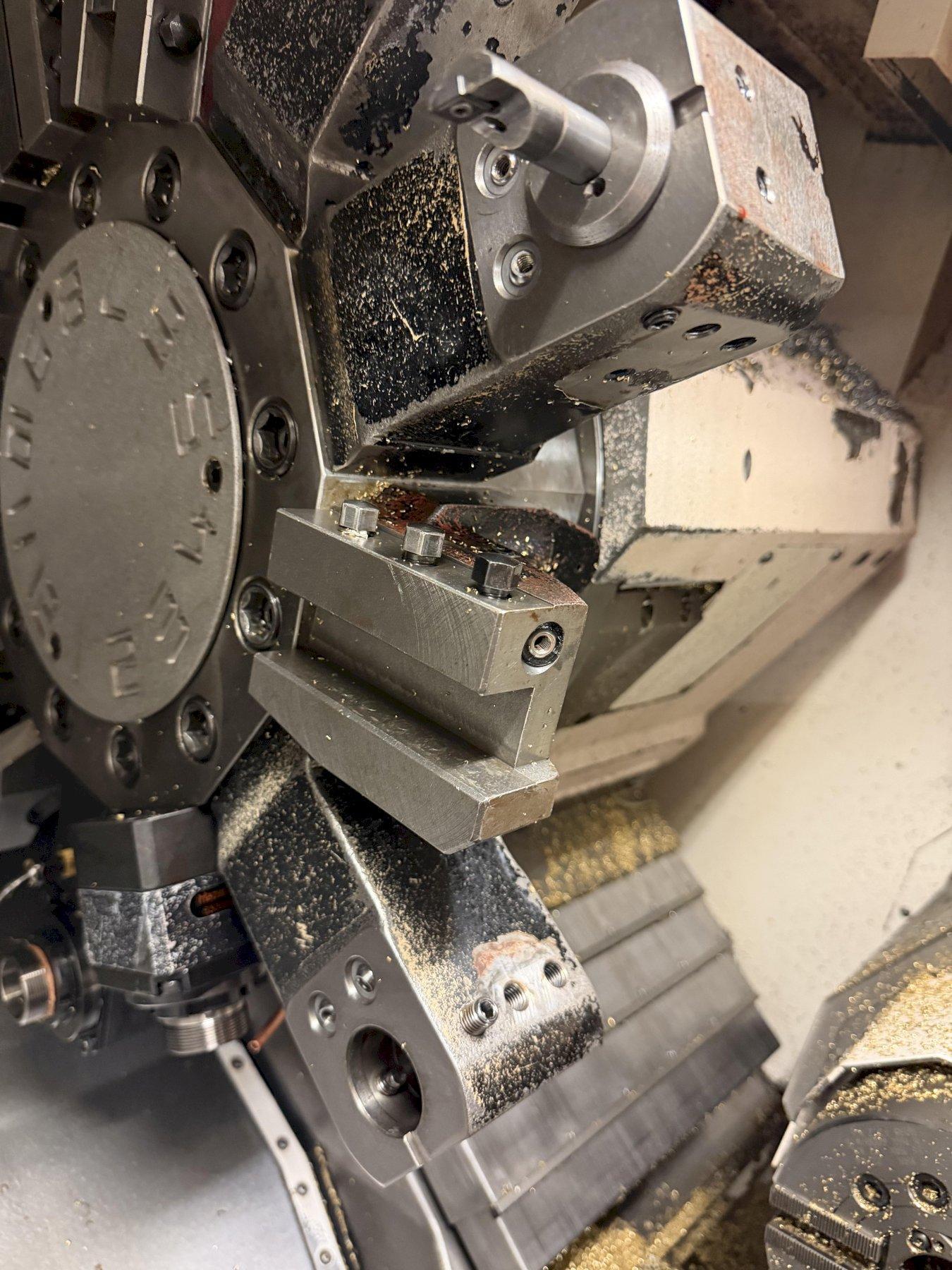

| Turret Capacity | 12-POSITION VDI TURRET |

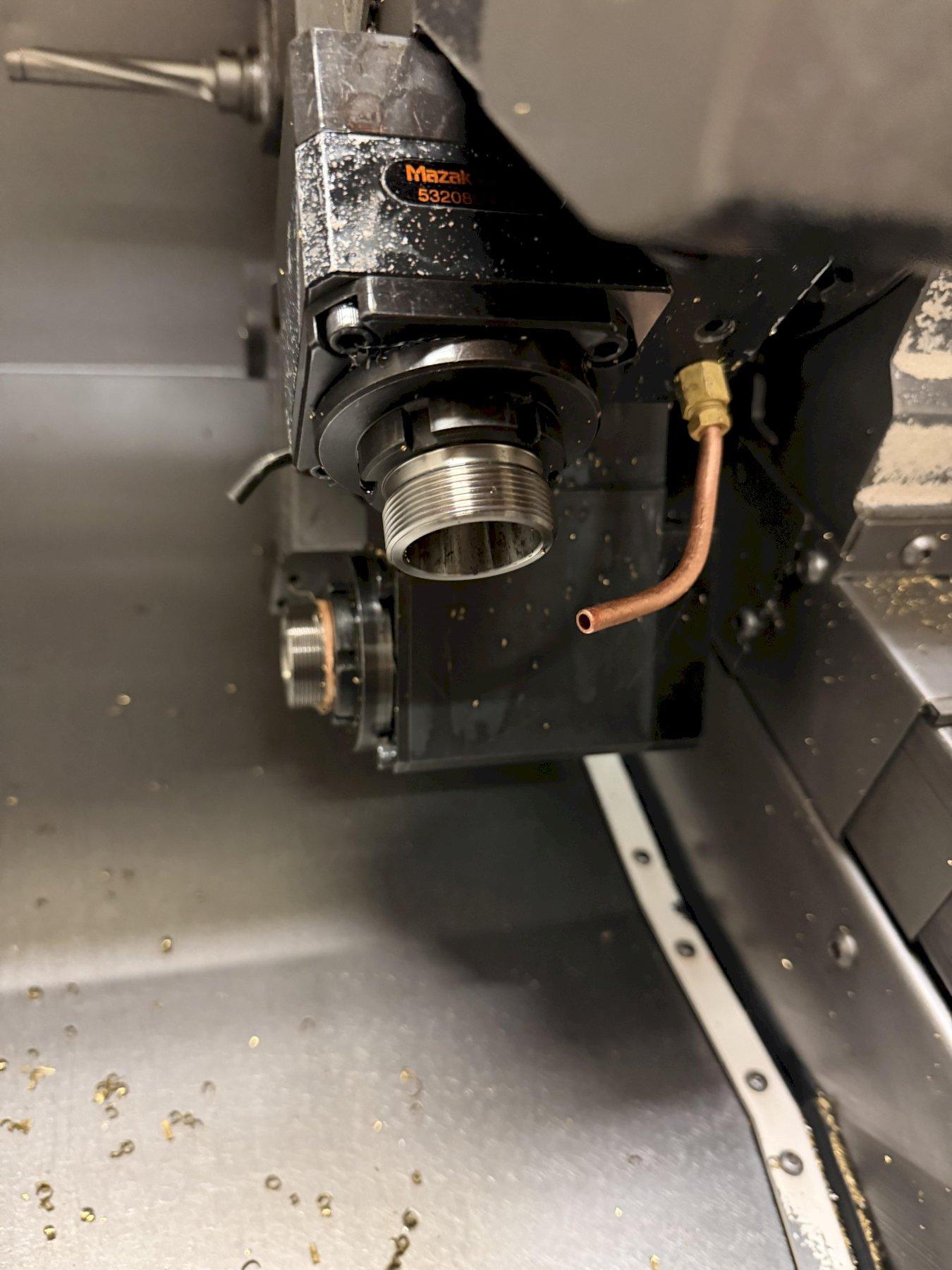

| Rotary Tool Speed | 4,500 RPM |
| X-Axis Travel | 9.05″ |
| Y-Axis Travel | ±2.0″ (100 MM TOTAL STROKE) |
| Z-Axis Travel | 22.63″ |
| C-Axis Indexing (Both Spindles) | 0.0001 DEGREE INCREMENTS |
| Machine Weight | 12,588 LBS |

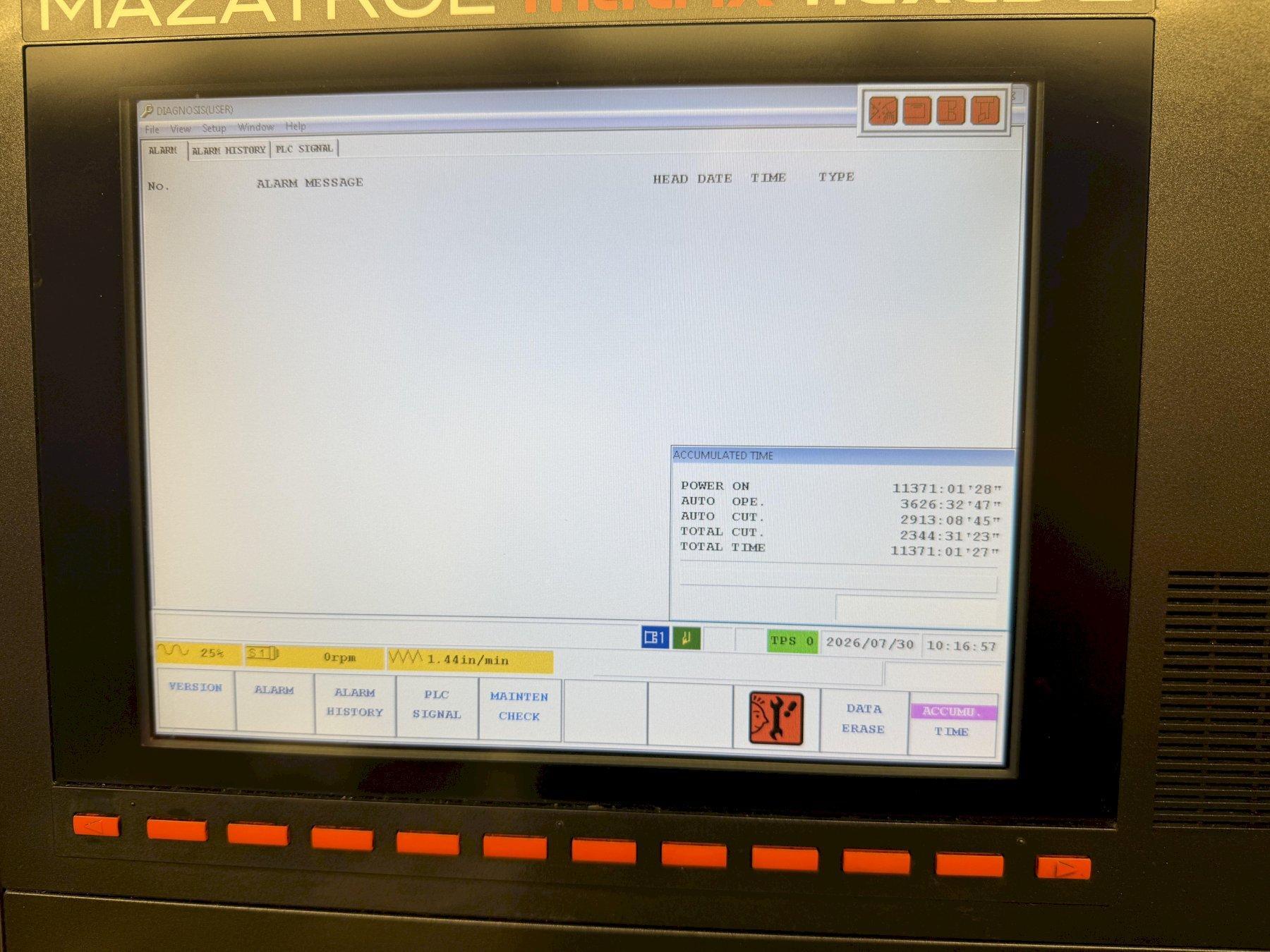

| Power On | 11,371 HOURS |
| Auto Ope. | 3,626 HOURS |
| Auto Cut. | 2,913 HOURS |
| Total Cut. | 2,344 HOURS |
| Total Time | 11,371 HOURS |

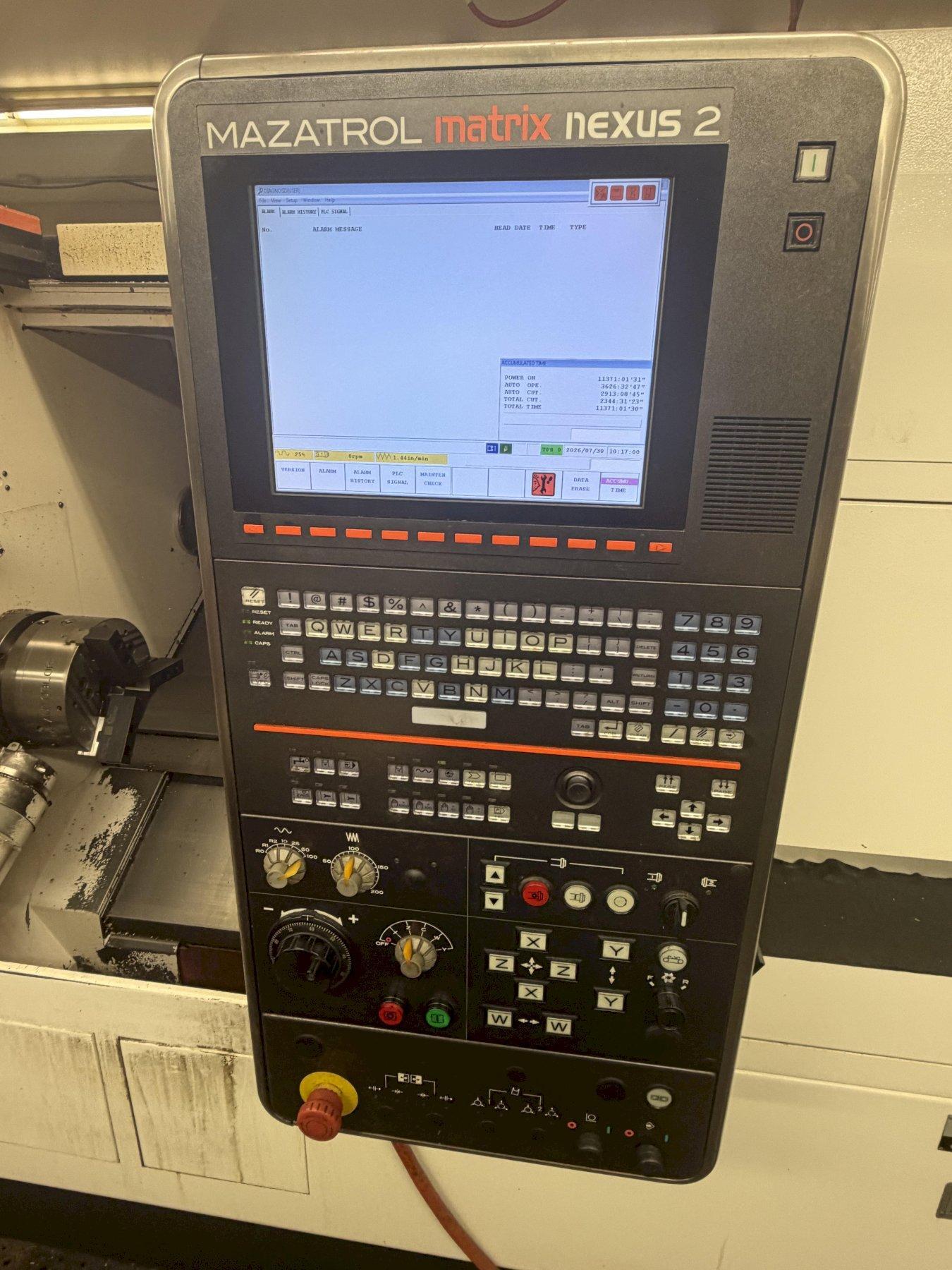

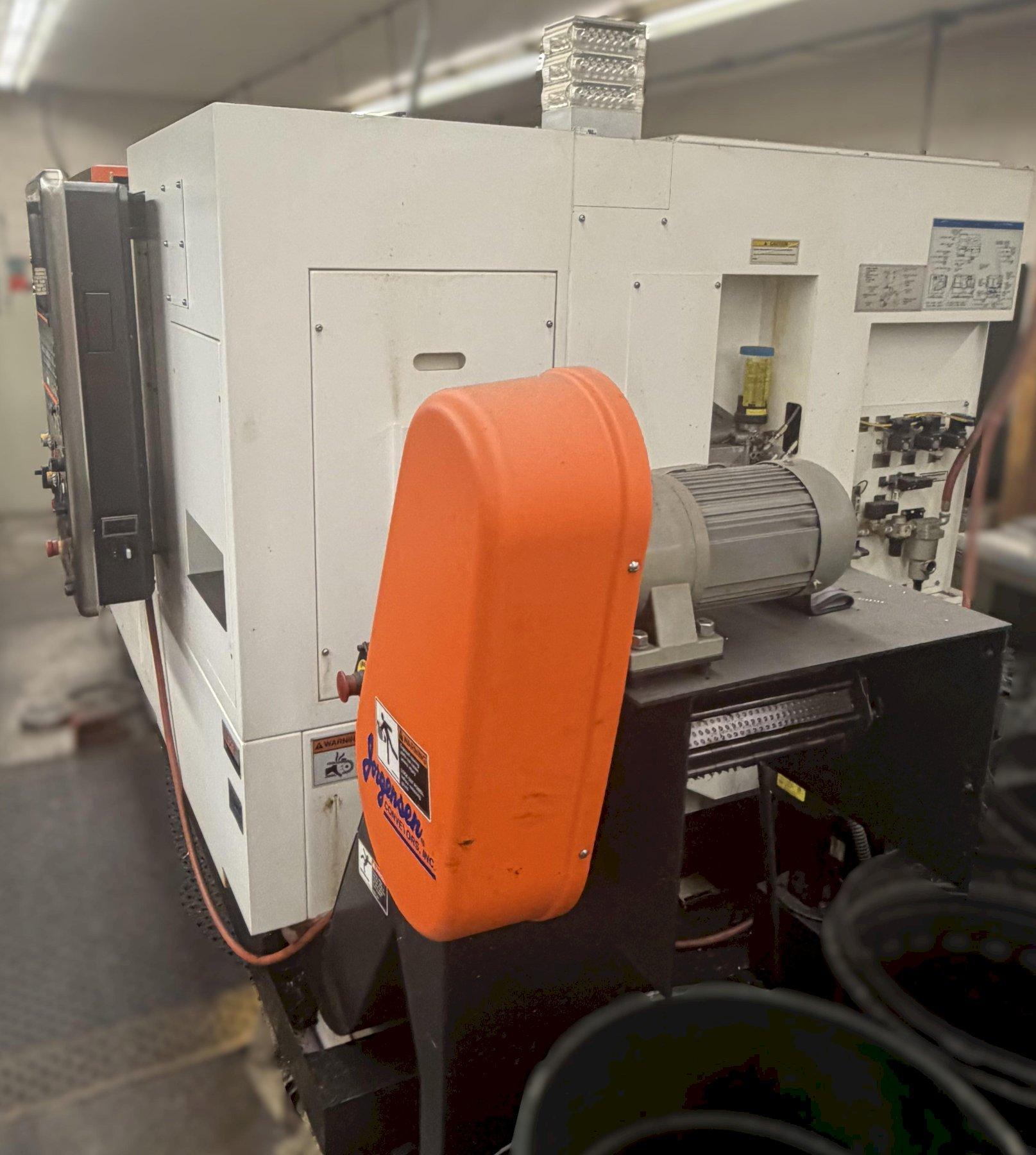

EQUIPPED WITH MAZATROL MATRIX NEXUS 2 CONTROL (12.1" COLOR LCD), EIA/ISO INPUT FUNCTION, AUTOMATIC TOOL EYE, KITAGAWA B-210A8 8" HYDRAULIC CHUCK (MAIN SPINDLE), KITAGAWA B-206AS 6" HYDRAULIC CHUCK (SUB-SPINDLE), HINGE-TYPE SIDE CHIP CONVEYOR

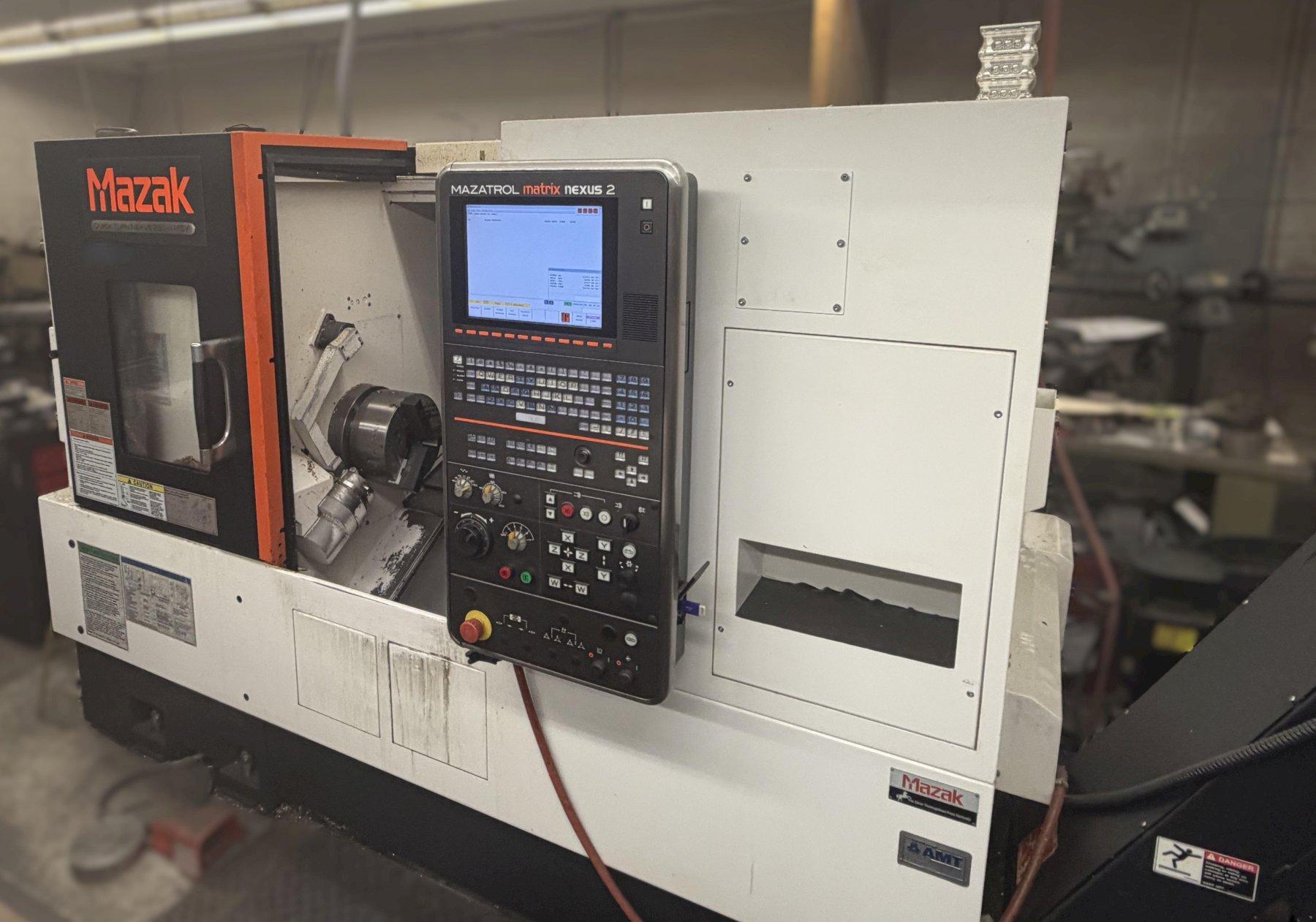

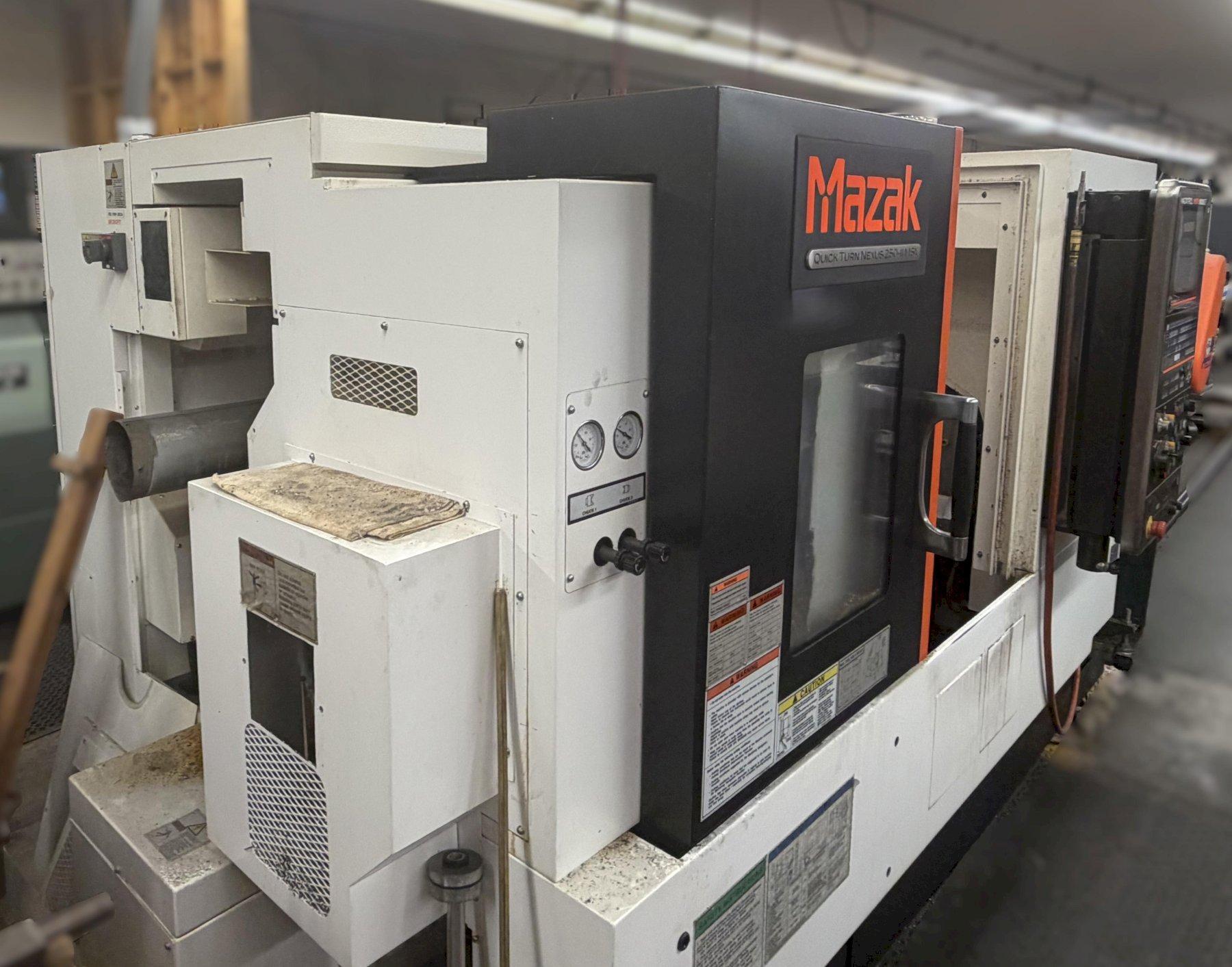

2014 MAZAK QUICK TURN NEXUS 250MSY-II CNC TURNING CENTER, MAZATROL MATRIX NEXUS 2 CONTROL, TWIN SPINDLE, LIVE TOOLING, Y-AXIS, TOOL EYE, CHIP CONVEYOR
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
