| CNC Control |
yes |
| Type of CNC Control |

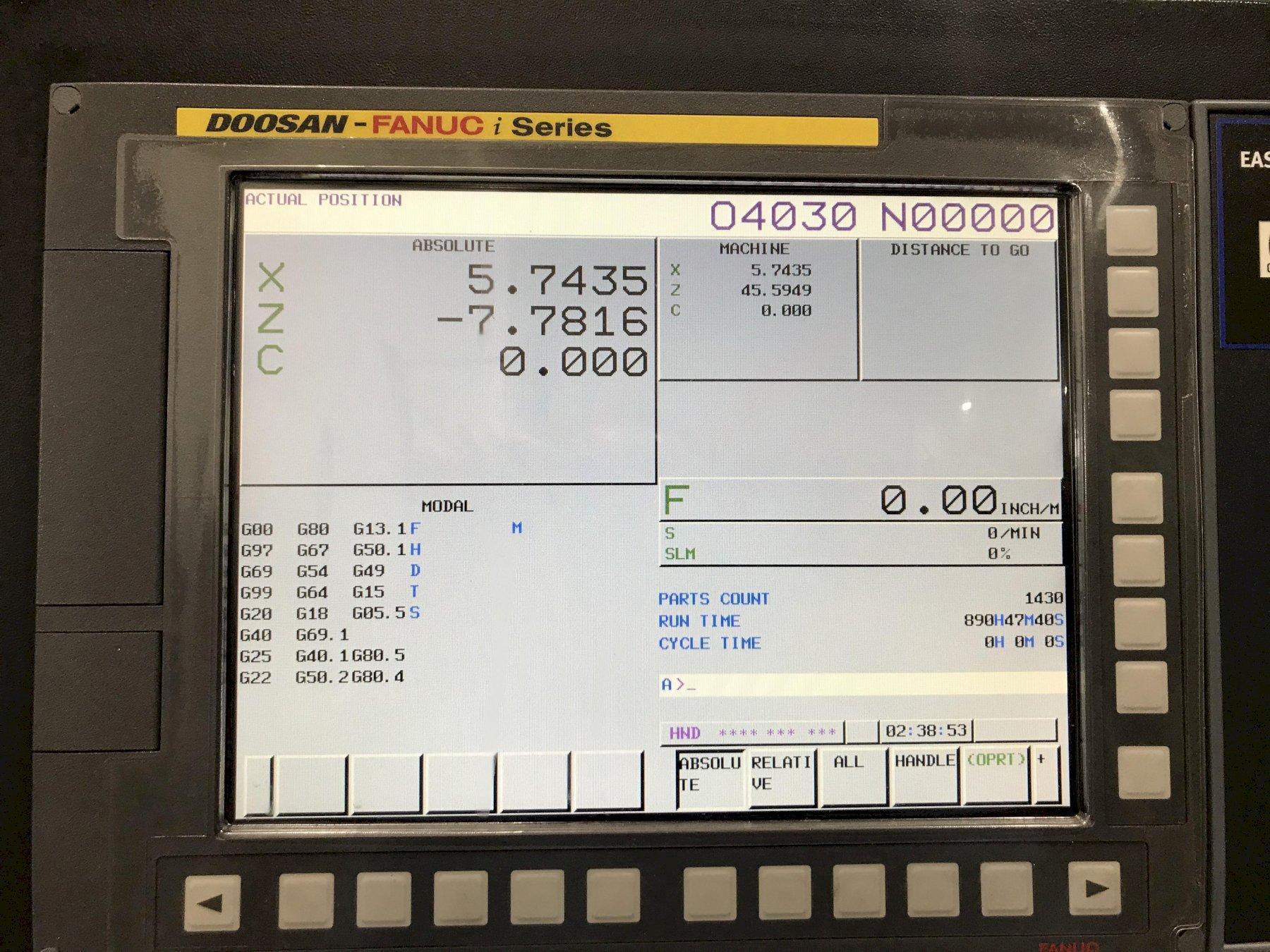

Fanuc i Series |
| Chuck Size |
15 inches |
| Swing |
31.1 inches |
| Turning Diameter |
21.7 inches |
| Bar Capacity |
4.6 inches |
| Spindle Bore |
5.2 inches |
| X Axis Travel |
13.8 inches |
| Z Axis Travel |
84.8 inches |
| Rapid Traverse (X/Z) |
630 / 787 ipm |
| Main Motor |
50 HP |
| Turret Capacity |
12 |
| Tailstock |
yes |
| Y Axis |
no |
| Dimensions |
227" x 90" x 90" |
| Weight |
25130 pounds |
| Live Tooling |
no |
| Sub Spindle |
yes |
Equipped With

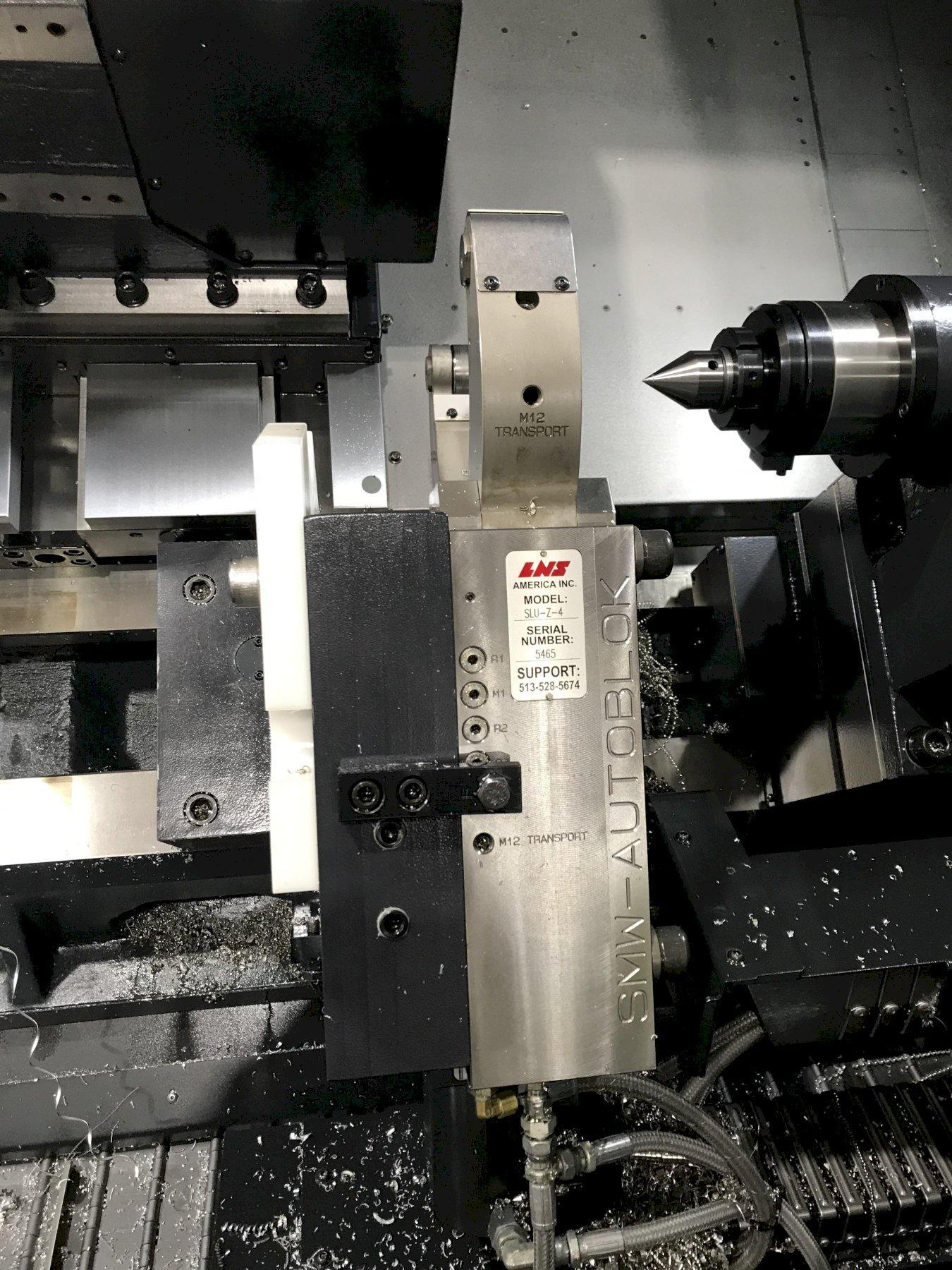

Equipped With: Fanuc i Series EZ-Guide Conversational Programming CNC Control, 15" Samchully 3-Jaw Hydraulic Chuck, Hydraulic Automatic Tool Setter, LNS Programmable Hydraulic Steady Rest, Way Lube Recovery System, Programmable High/Low Chucking Pressure, Chip Conveyor, and Coolant Tank and Pump.
