| CNC Control |
yes |
| Type of CNC Control |
Fanuc |
| # Axis |
4 |
| Chuck Size |
10 inches |
| Swing |
34.3 inches |
| Turning Diameter |
16.5 inches |
| Bar Capacity |
3.2 inches |
| Spindle Bore |
3.6 inches |
| X Axis Travel |
10.4 inches |
| Z Axis Travel |
32.7 inches |
| Y Axis (Yes / No) |
yes |
| X Axis Rapid Feedrate |
1181 inches-per-minute |
| Z Axis Rapid Feedrate |
1181 inches-per-minute |
| Spindle Speed (RPM) |
4000 |
| Main Motor |
30-HP |
| Sub Spindle Chuck Size |
6 inches |
| Sub Spindle Speed (RPM) |
6000 |
| Sub Spindle Motor |
20.1-HP |
| Live Milling (Yes / No) |
yes |
| Live Milling Speed (RPM) |
5000 |
| Live Milling Motor |
7.4-HP |
| Turret Capacity |
12 |
| Dimensions |
142" x 74.4" x 76.8" |
| Weight |
14440 pounds |
Equipped With

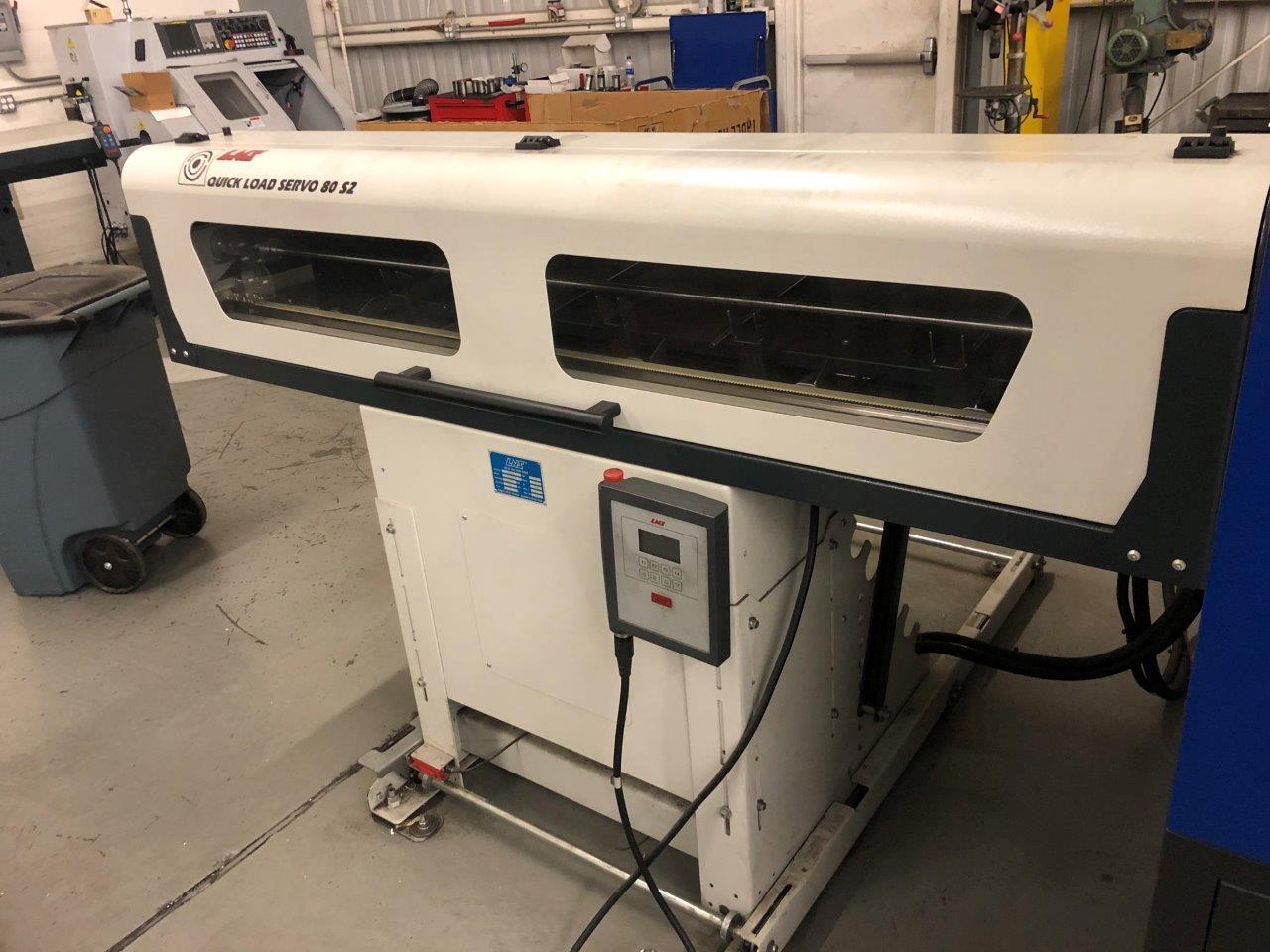

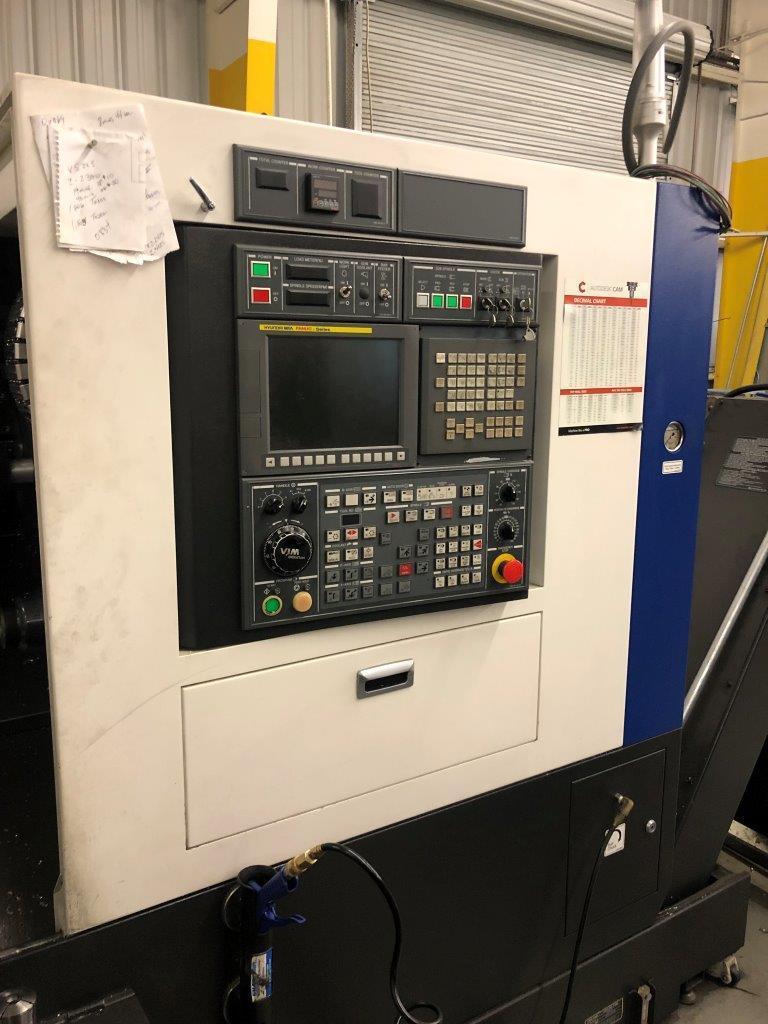

Fanuc Control, Tool Presetter, Quick Load Servo 80 S2 Bar Feeder, Chip Conveyor, and Coolant Tank.
