Listing Details

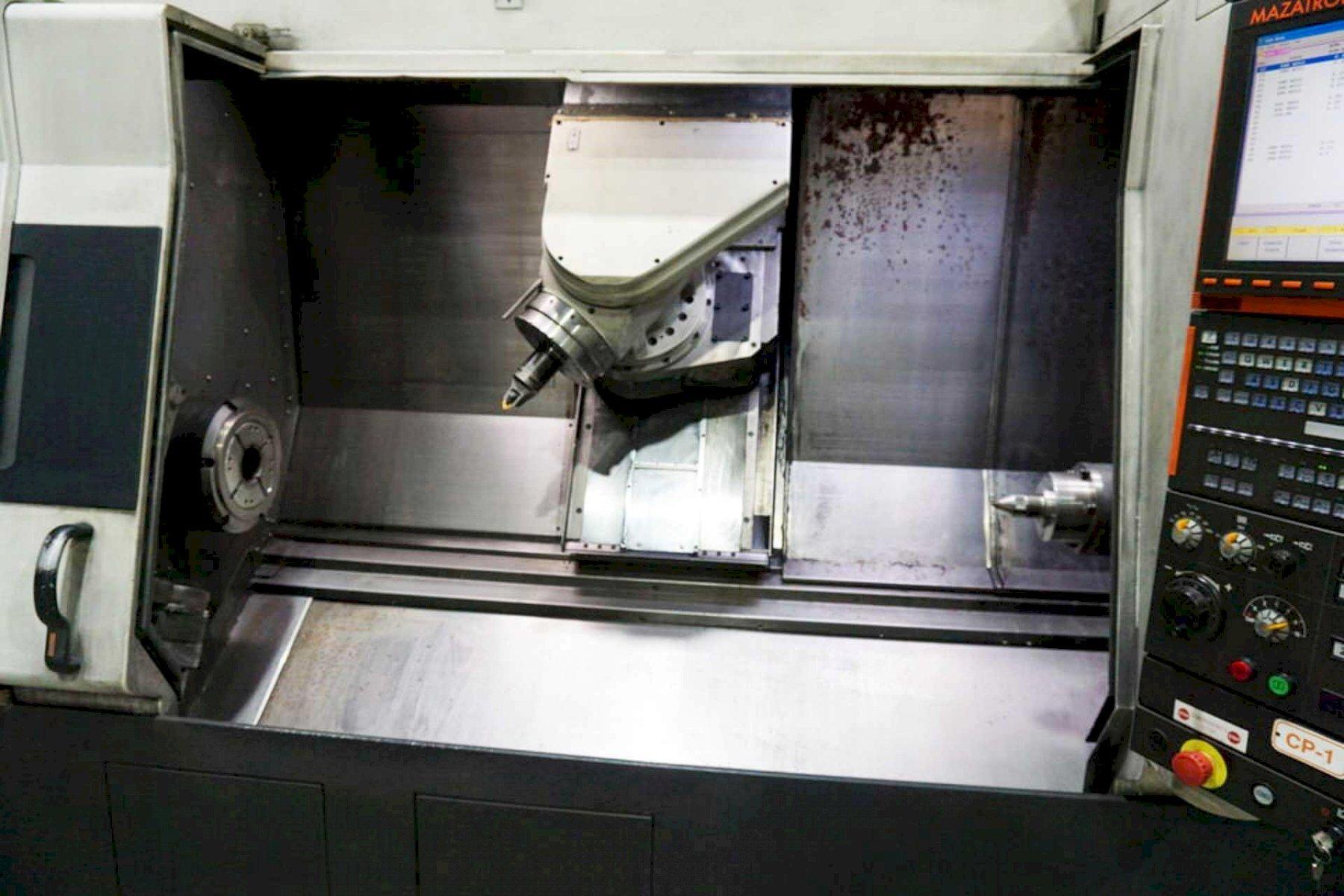

Mazak Integrex 400-IV Multi-Tasking CNC Turning Center 2007 with Mazatrol Matrix CNC Control, Live Milling, 5-Axis, Tailstock, Coolant Thru Spindle, and Chip Conveyor.


Not specified

Integrex 400-IV

Stock #


CNC Control yes
Type of CNC Control Mazatrol Matrix
Control Options EIA/ISO Code Input Function
Additional Control Options Windows XP Operating System 3-D Coordinate Conversion G00 Slope Constant
Machine Options Tool Eye
Max. Swing Over Bed 33.6
Distance Between Centers 60
Max. Cutting/Turning Diameter 30
Max. Cutting/Turning Length 60
Bar Capacity 4
# Axis 5
X 24.8
Z 62
C Axis yes
Y Axis yes
B Axis yes
Rapid Traverse 1496 IPM
Spindle Speed 3,300 RPM
Power 40
Spindle Bore 4.4
Live Tooling / Milling yes
Max. Live Milling Speed 12,000 RPM
Single Turret yes
# ATC 40
Programmable Tailstock yes
Chuck Type Collet

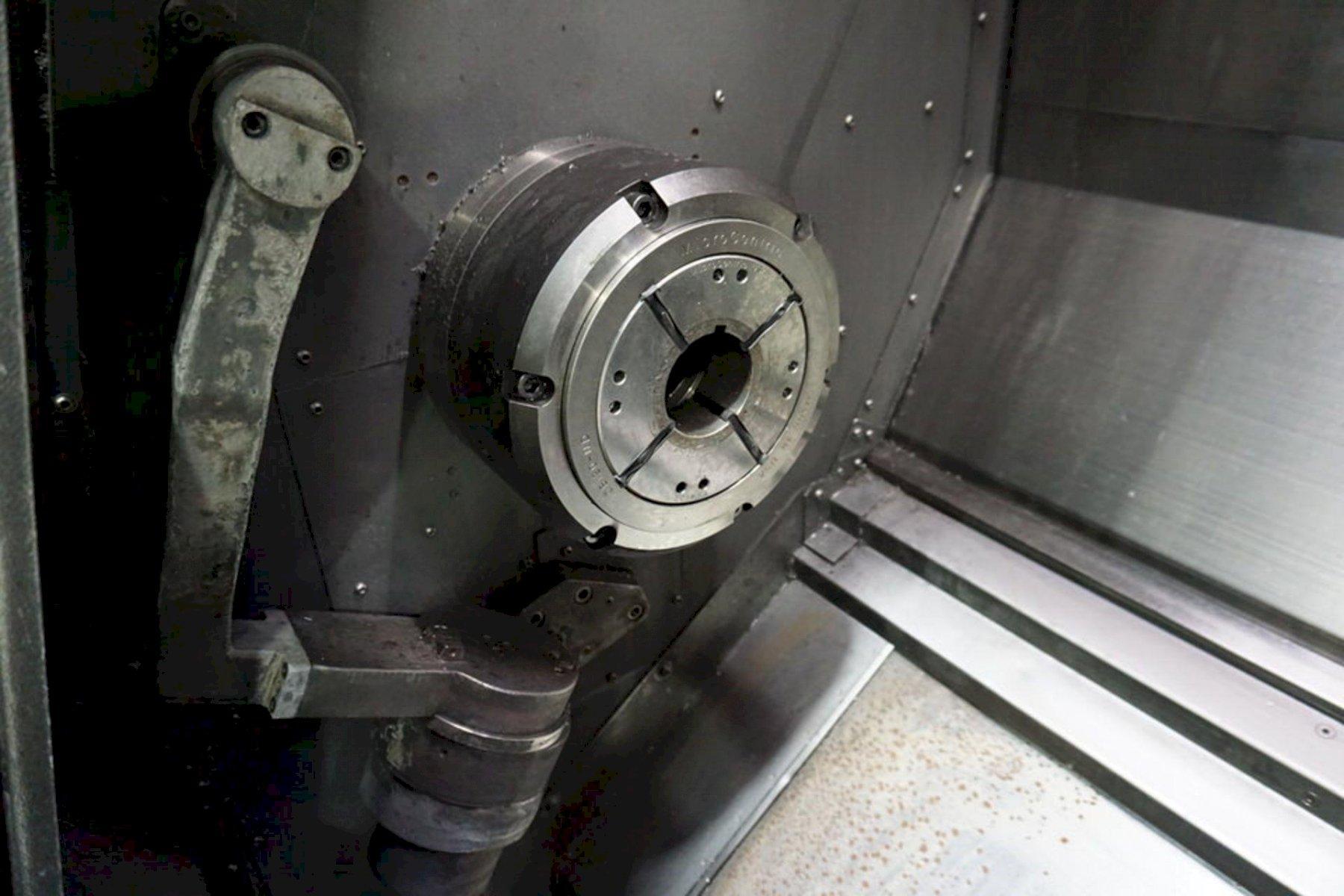

Chuck Description Microcentric CB120-Tru Length
Thru-Spindle Coolant yes
Coolant PSI 213 PSI
Chip Removal Chip Conveyor

Equipped With

Shape Compensation for Rotary Axes
Cylindrical (G07) & Polar Coordinate (G12)
40 Tool Magazine
Milling-Spindle Synchronous Tapping
Y-Axis Control
Coolant Through Milling Head
Flood Simul-Flowable
B-Axis Index 5 Degree (Coupling Clamp)
C-Axis .0001 Chip Conveyor Side Disposal (Hinge)
Foundation Kit
Operator Door Interlock with Lock-Switch
Hydraulic Pressure Interlock
Preparation for Capto Multi & Flash System
Overload Detection System
Work Measuring System OMP60
