| CNC Control |
yes |

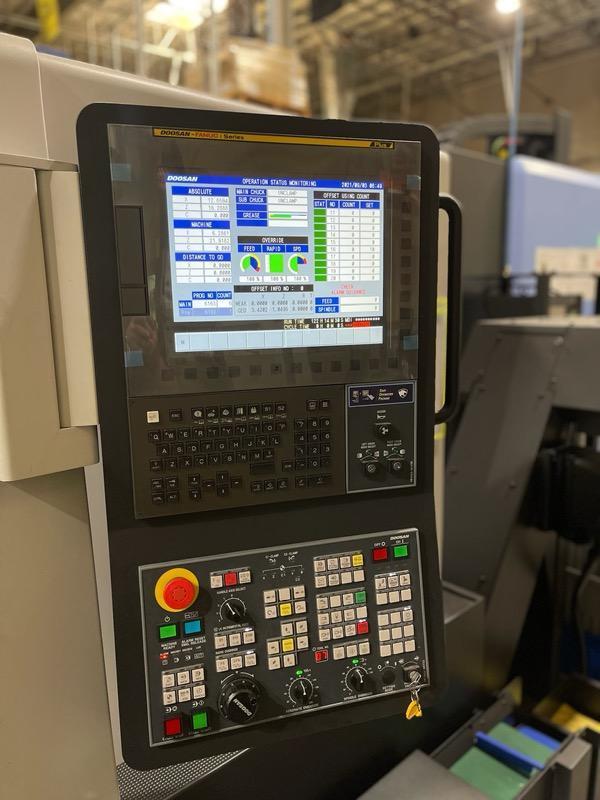

| Type of CNC Control |
Fanuc i Series |
| # Axis |
4 |
| Chuck Size |
8 inches |
| Turning Diameter |
11.8 inches |
| X Axis Travel |
8.1 inches |
| Z Axis Travel |
22 inches |
| B-Axis Travel |
22 inches |
| Y Axis (Yes / No) |
yes |
| Y-Axis Travel |
4.1" +/- 2.1" |
| X-Axis Traverse Rate |
1181 IPM |
| Y-Axis Rapid Traverse Rate |
394 IPM |
| Spindle Speed (RPM) |
4500 |
| Main Motor |
20-HP |

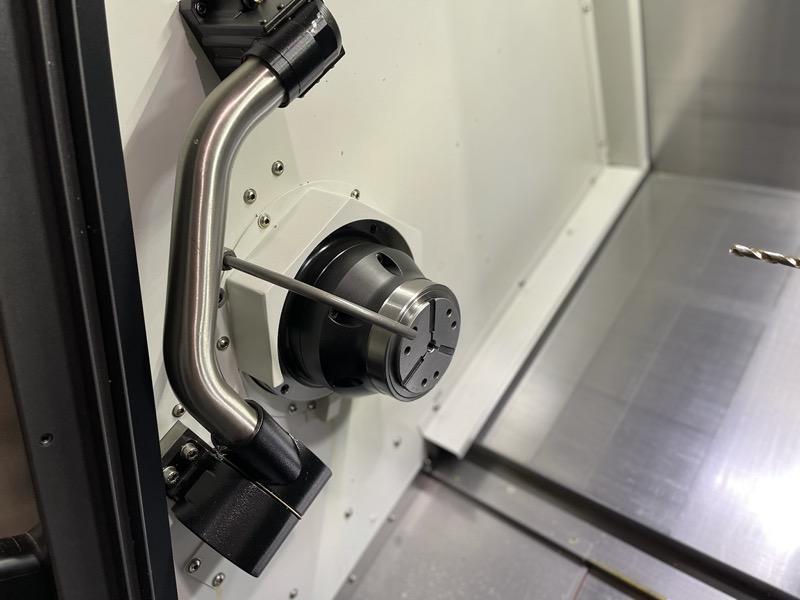

| Sub Spindle Chuck Size |
5 inches |
| Sub Spindle Speed (RPM) |
6000 |
| Sub Spindle Motor |
7.5-HP |
| Live Milling (Yes / No) |
yes |
| Live Milling Speed (RPM) |
6000 |
| Live Milling Motor |
5-HP |

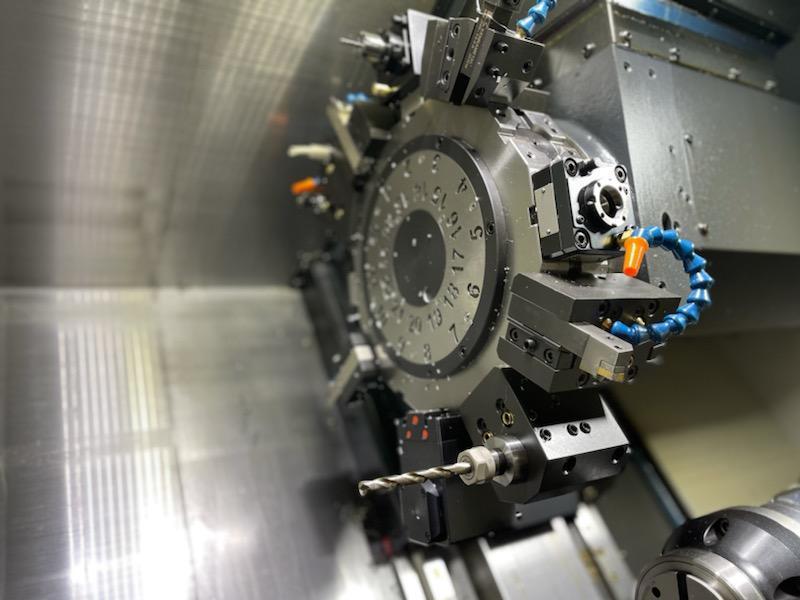

| Turret Capacity |
12 |
| Tailstock (Yes/No) |
no |
| Dimensions |
114" x 68" x 76" |
| Weight |
9259 pounds |
Equipped With

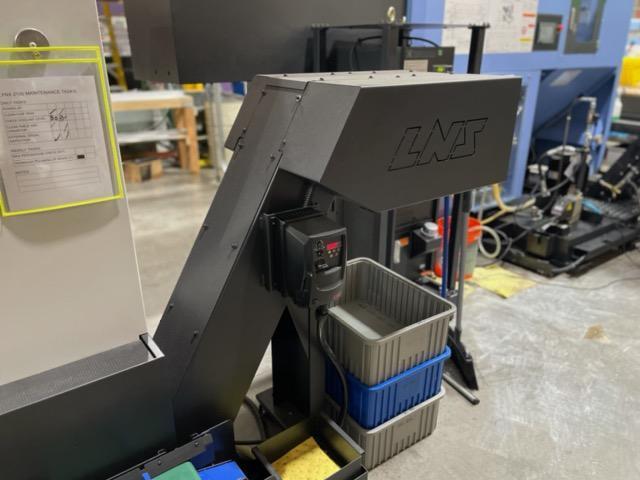

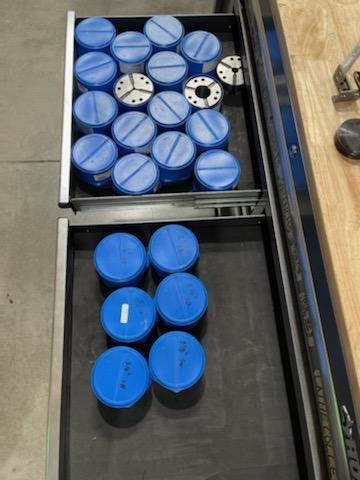

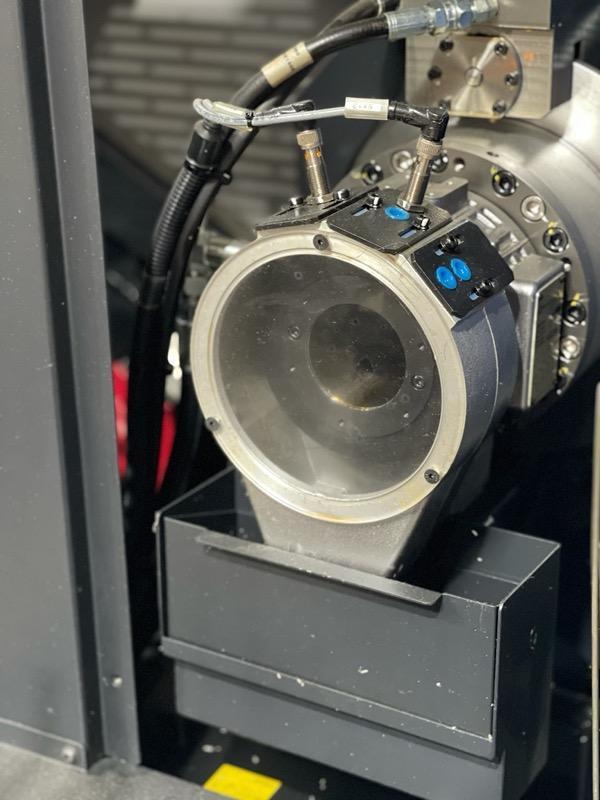

Fanuc i Series CNC Control, Live Tooling, Royal Collet Chucks, Collets, Tool Setter, Y-Axis, and Chip Conveyor.
