Listing Details

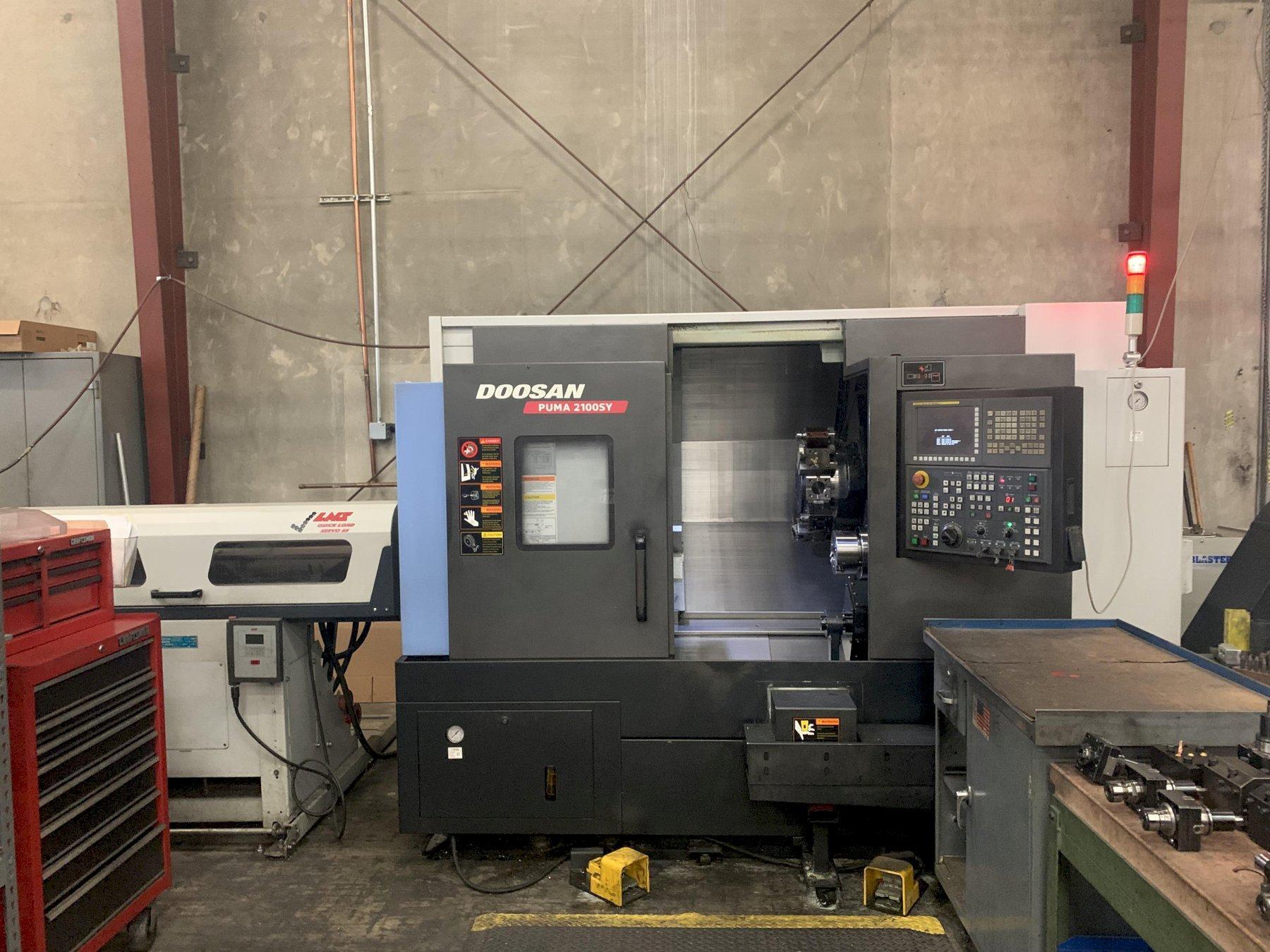

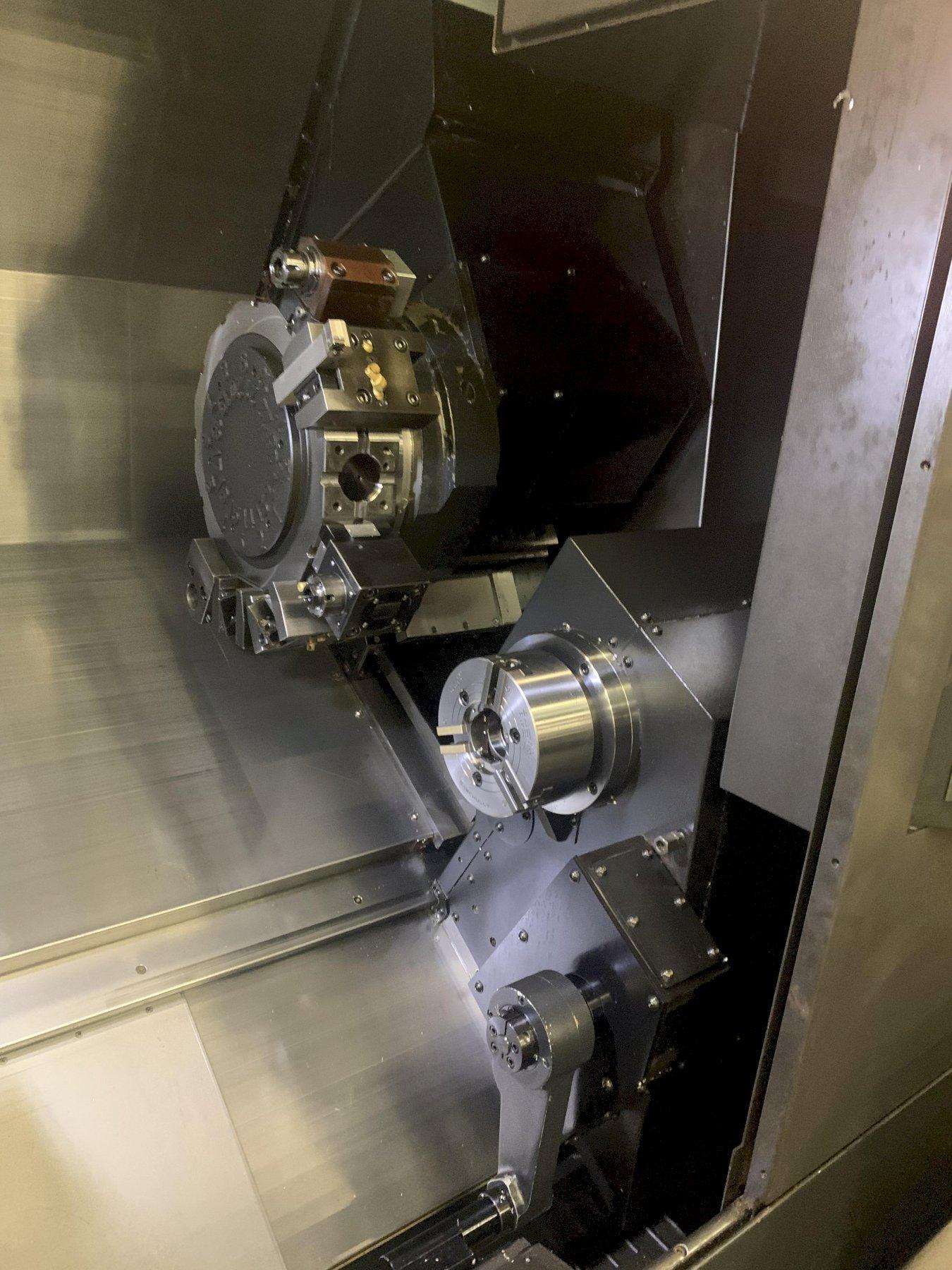

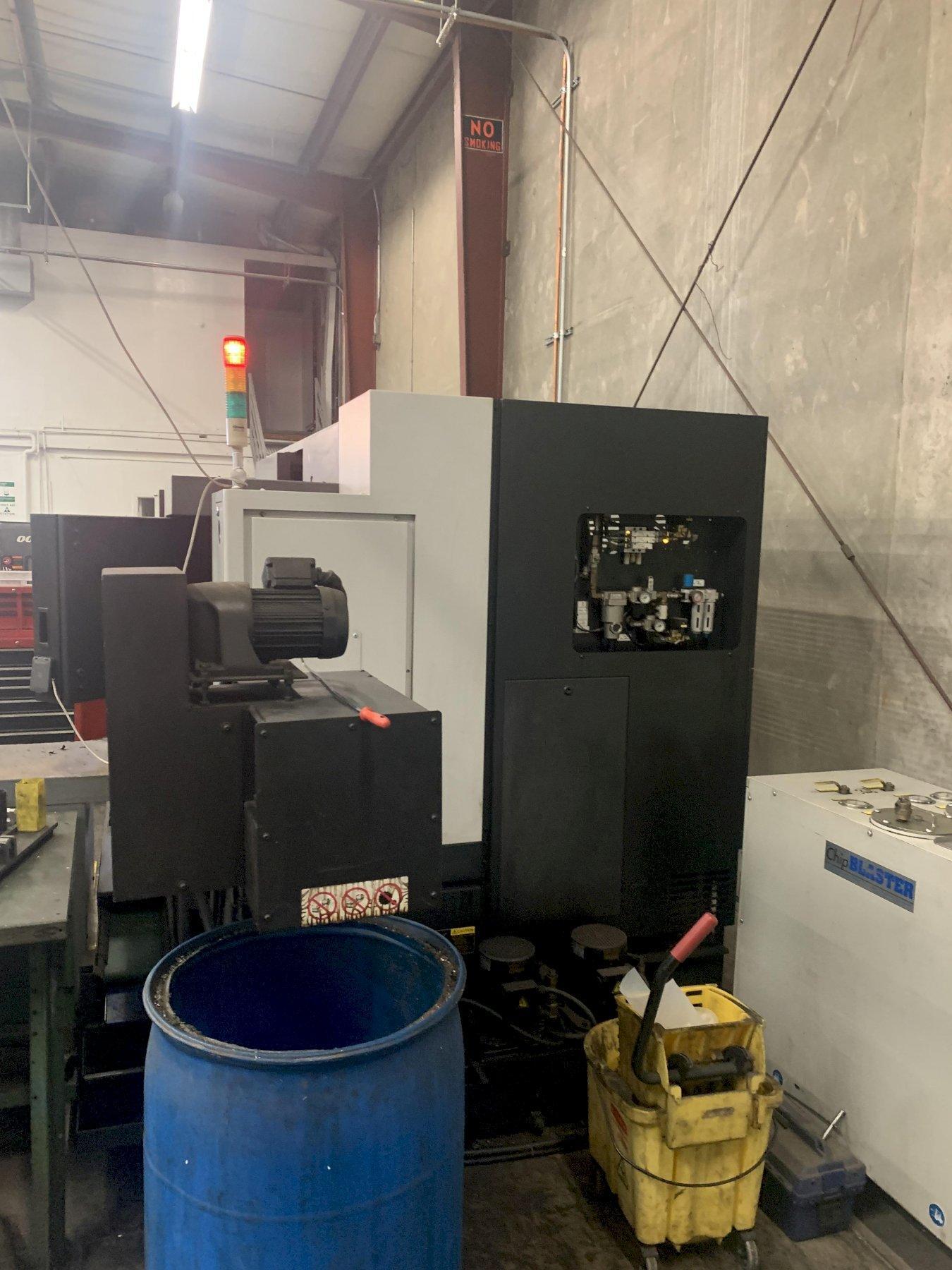

Doosan Puma 2100SY Turning Center 2013 with: Fanuc Control, Sub Spindle, Tool Pre-Setter, 3-Jaw Chuck, LNS Barfeed, Chip Conveyor, and Coolant Tank.


Not specified

Puma 2100SY

Stock #


Chuck Size 8 inches
Swing Over Bed 30.7 inches
Swing Over Carriage 24.8 inches
Swing Over Front Door 26.8 inches
Max. Turn Length 20.47 inches
Max. Turn Diameter 15.98 inches
Bar Capacity 2.6 inches
Main Spindle C-Axis .001 Degrees
C-Axis Rapid Traverse Rate 400 RPM
C-Axis Contouring Torque 70 ft.-lbs.
C-Axis Braking Torque 663 ft.-lbs.
X-Axis Travels 10.2 inches
Z-Axis Travels 23.2 inches
Angle of Slant Bed 30 Degrees
X & Z Axis Rapid Traverse Rate 1,181 IPM
Z-Axis Guideway Span 17.2 inches
Y-Axis Travel 4.13" (+/- 2.065")
Y-Axis Rapid Traverse Rate 394 IPM
Main Spindle Speed 5,000 RPM
Main Spindle Motor 30-HP
Main Spindle Bore 2.99 inches
Sub-Spindle Speed 6,000 RPM
Sub-Spindle Motor 20-HP
Sub-Spindle Bore 2.44 inches
B-Axis Travel (Sub-Spindle) 23.2 inches
Sub-Spindle Guideway Span 13.2 inches

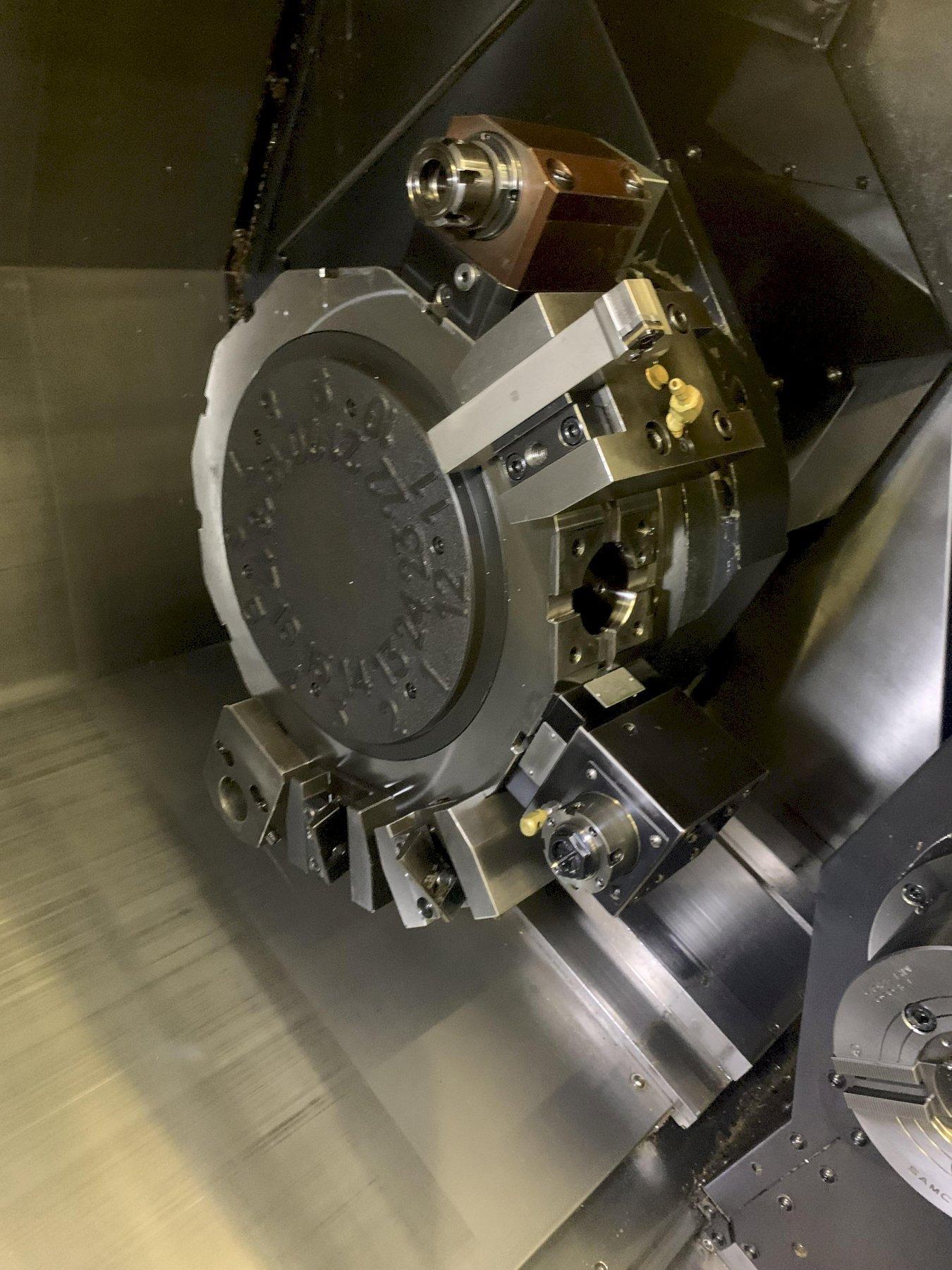

Turret Stations 12
No. Index Positions 24
Turning Tool Shank Size 1.0 inches
Turret Index Time 0.15 sec.
Tool Selection Bi-Directional
Rotary Tool Speed 5,000 RPM
Rotary Tool Motor 7.5 HP
Rotating Tool Collet Type ER25
Milling Collet Capacity 1/8" - 5/8"
Approx. Dimensions 135" x 75" x 85"
Approx. Weight 13225 pounds

Equipped With

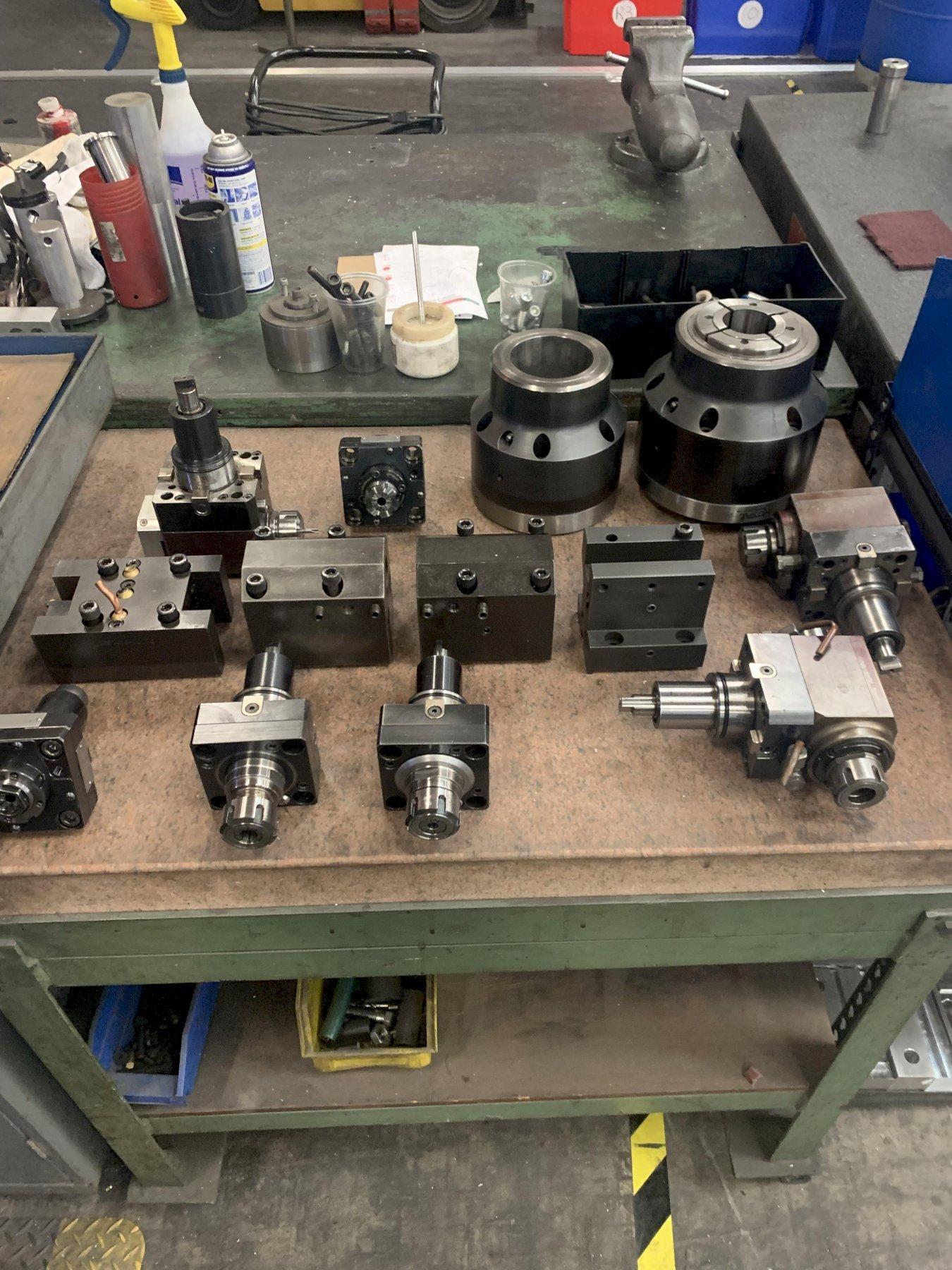

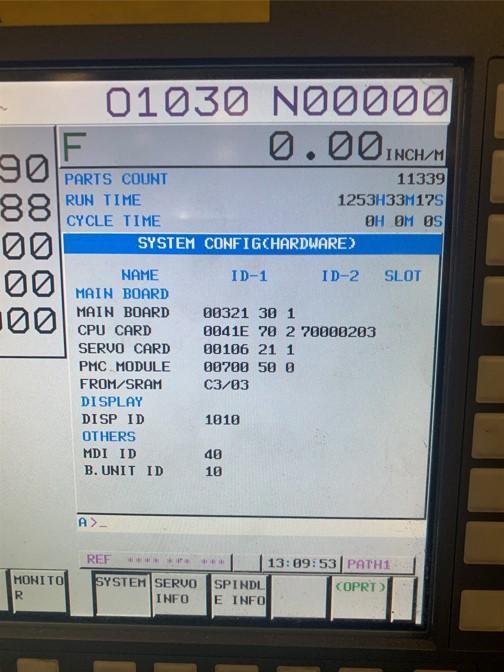

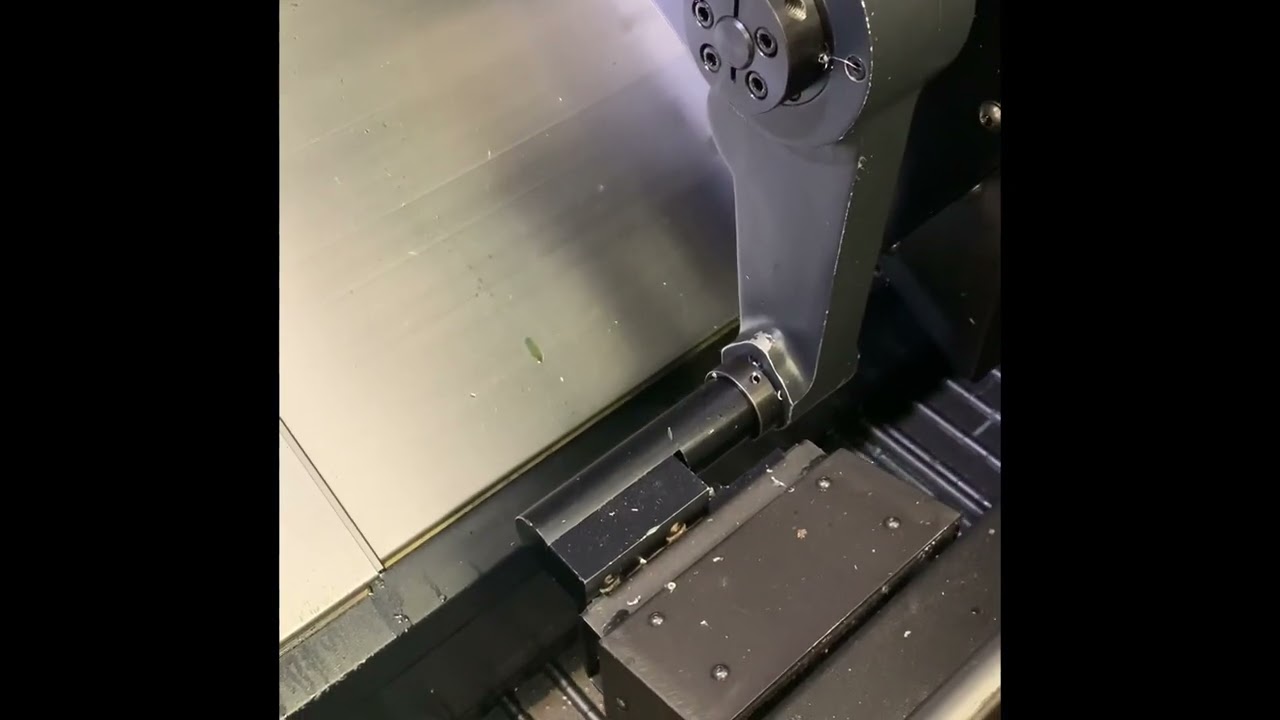

Fanuc CNC Control, Sub Spindle, Tool Pre-Setter, 3-Jaw Chucks, Chip Conveyor, LNS Barfeed, Chip Master High Pressure System and Coolant Tank.

Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
