Listing Details

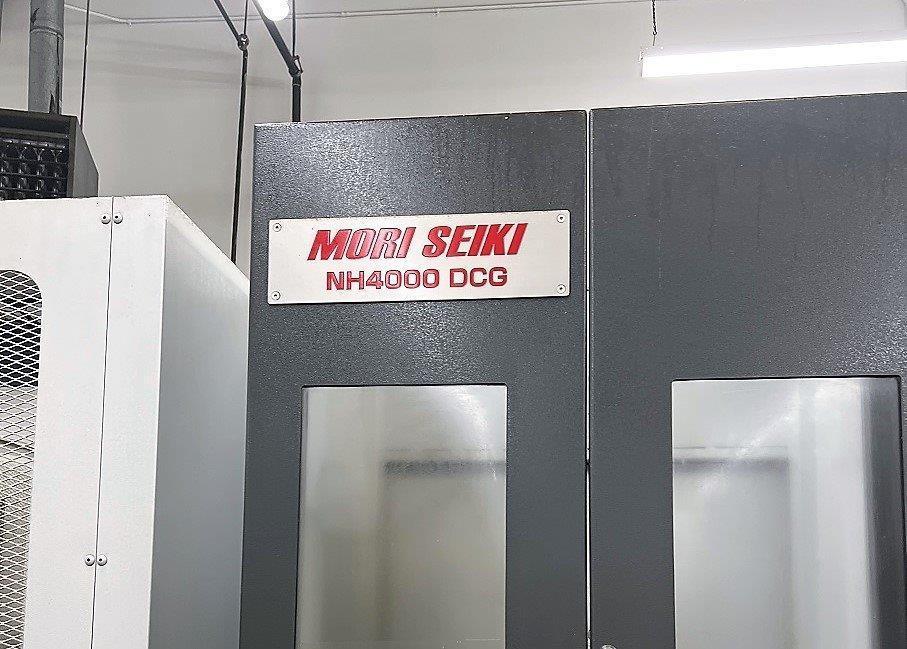

Mori Seiki NH4000DCG HMC 2008 with: Fanuc MSX-701 III Control, 10-Pallet APC, 4th Axis Rotary Table, 240-ATC, 40 Taper, and Through Spindle Coolant.


Not specified


Stock #


CNC Control yes
Type of CNC Control Fanuc MSX-701 III
# Axis 4
Pallet-W 15.7 inches
Pallet-L 15.7 inches
Pallet Capacity 881 pounds
X 22 inches
Y 22 inches
Z 24 inches
Spindle Speed 20,000 RPM
Main Motor 25-HP
Spindle Taper 40 Taper
Tool Changer Capacity 240
Coolant Through Spindle yes
Weight 22000 pounds

Equipped With

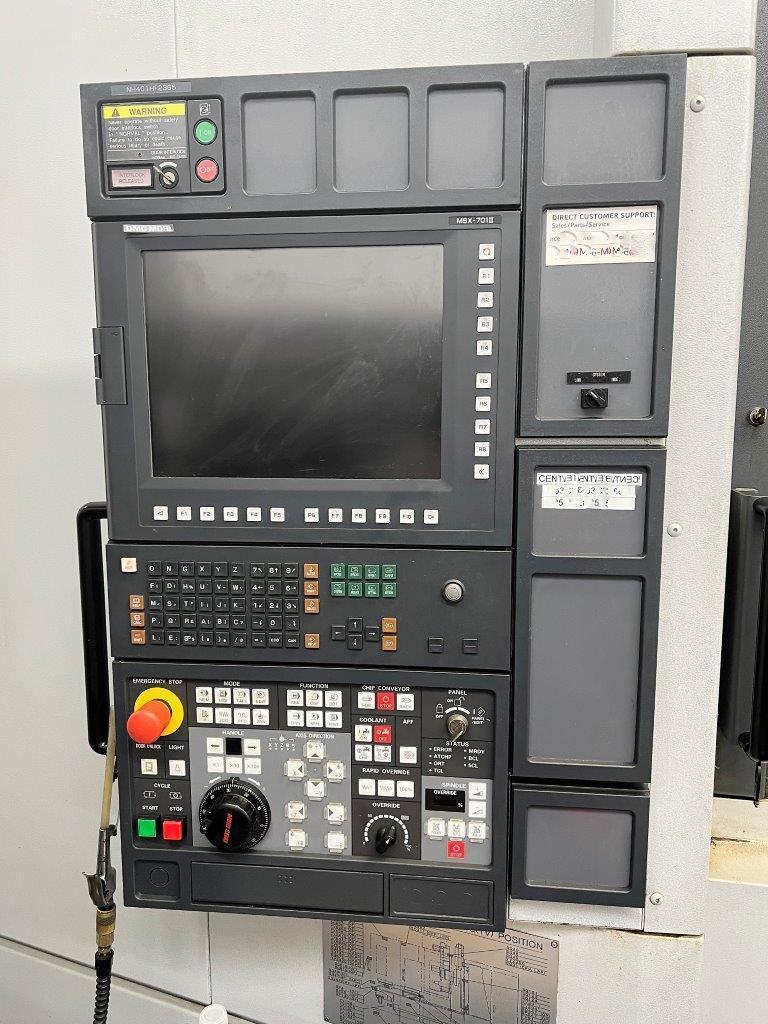

FS-31IA (MAPPS 3) with 15" Display
(Spindle 1) Output (KW) High Speed (15/11 Kw)
(Spindle 1) Speed (Min-1) 20000 Min-1
Hole Taper No. 40
7/24 Taper (Two-Face Contact) #40
Tool Storage Capacity 240
Pallet Changer Carrier APC
No. Operating Pallets: 10
No. Setup Stations for Carrier APC 1 Setup Station
Pallet Size 400 Square
Table Index Angle Full 4th Axis Rotary Table
Type of Chip Conveyor Outside Machine Hinge (Drum Filter Type)
(Spindle 1) Through-Spindle Coolant System Side Through
Shower Coolant Discharge Pressure Standard
In-Machine Work Measuring System (Table) Table Mount Sensor
Manual Pulse Handle Position Operation Panel
Part Program Strage (Byte) 2 Mbyte (5120 M)
Number of Stored Programs 1000
Number of Tool Offset Pairs 499
Number of Work Coordinate Systems Pairs 300
Addition of Optional Block Skip Soft-Key Type
Program Restart Provided
Custom Macro Provided
Number of Custom Macro Common Variables 600
All Contour Control 2

Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
