| Spindle Hole Diameter |
0.6299 inches |
| Max. Machining Length |
7.87 inches |
| Spindle Speed |
15,000 RPM |
| Motor |
5-HP |
| Sub Spindle |
yes |
| Spindle Hole Diameter |
0.6299 inches |
| Z-Stroke |
3.149 inches |
| Spindle Speeds |
10,000 RPM |
| Sub Spindle Motor |
1.5 HP |
| Driven Tools on Vertical Holder |
1 |
| Speed |
6,000 RPM |
| Motor |
0.5 HP |
| No. Tools |
4 |
| Turning Tools |
5 |
| Drilling Tools (Front) |
4 |
| End Working Tools (Back) |
4 |
| Tool Holder Quill Diameter |
0.787 inches |
| Dimensions |
70" x 45" x 64" |
| Weight |
4700 pounds |
Equipped With

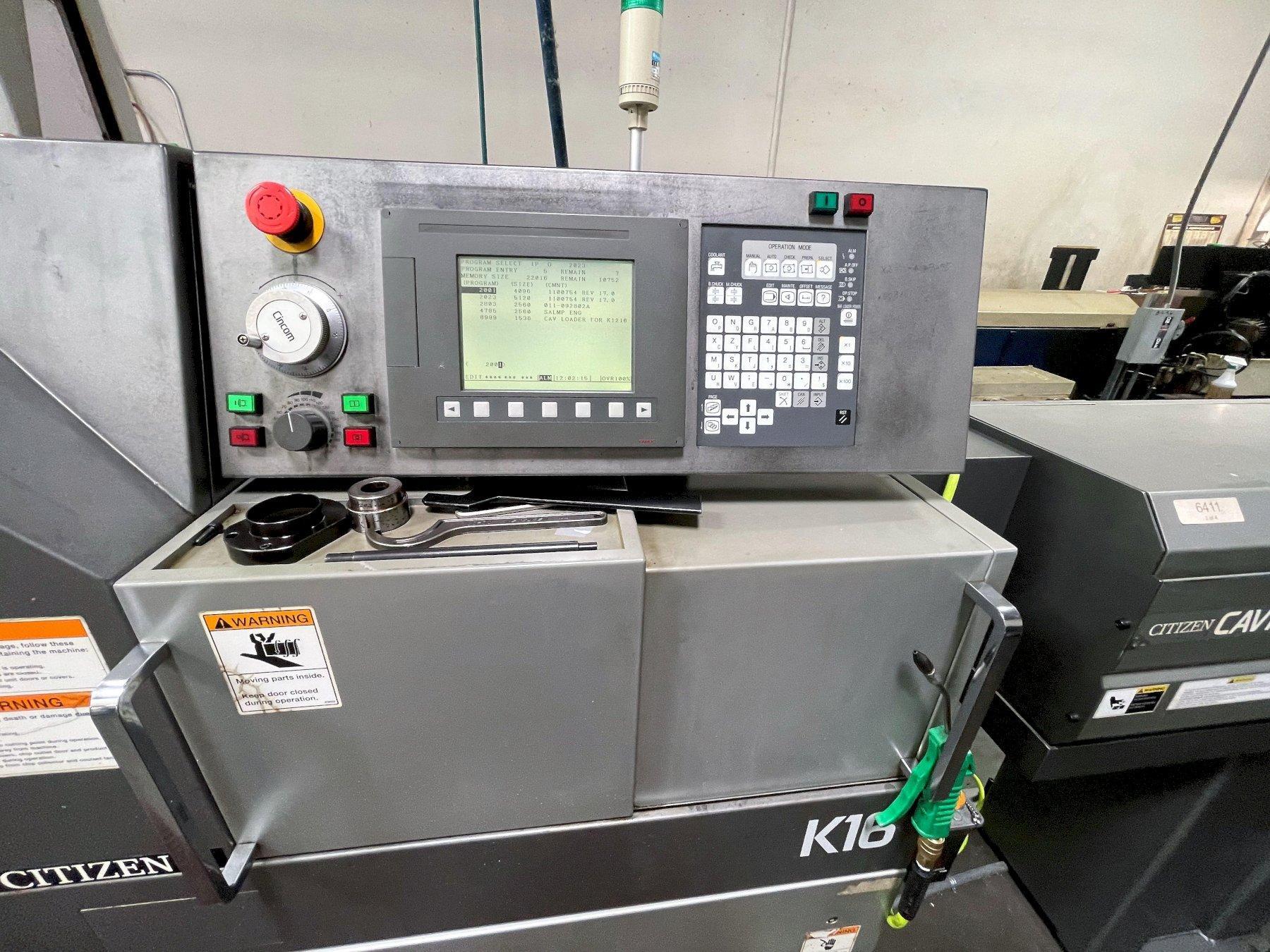

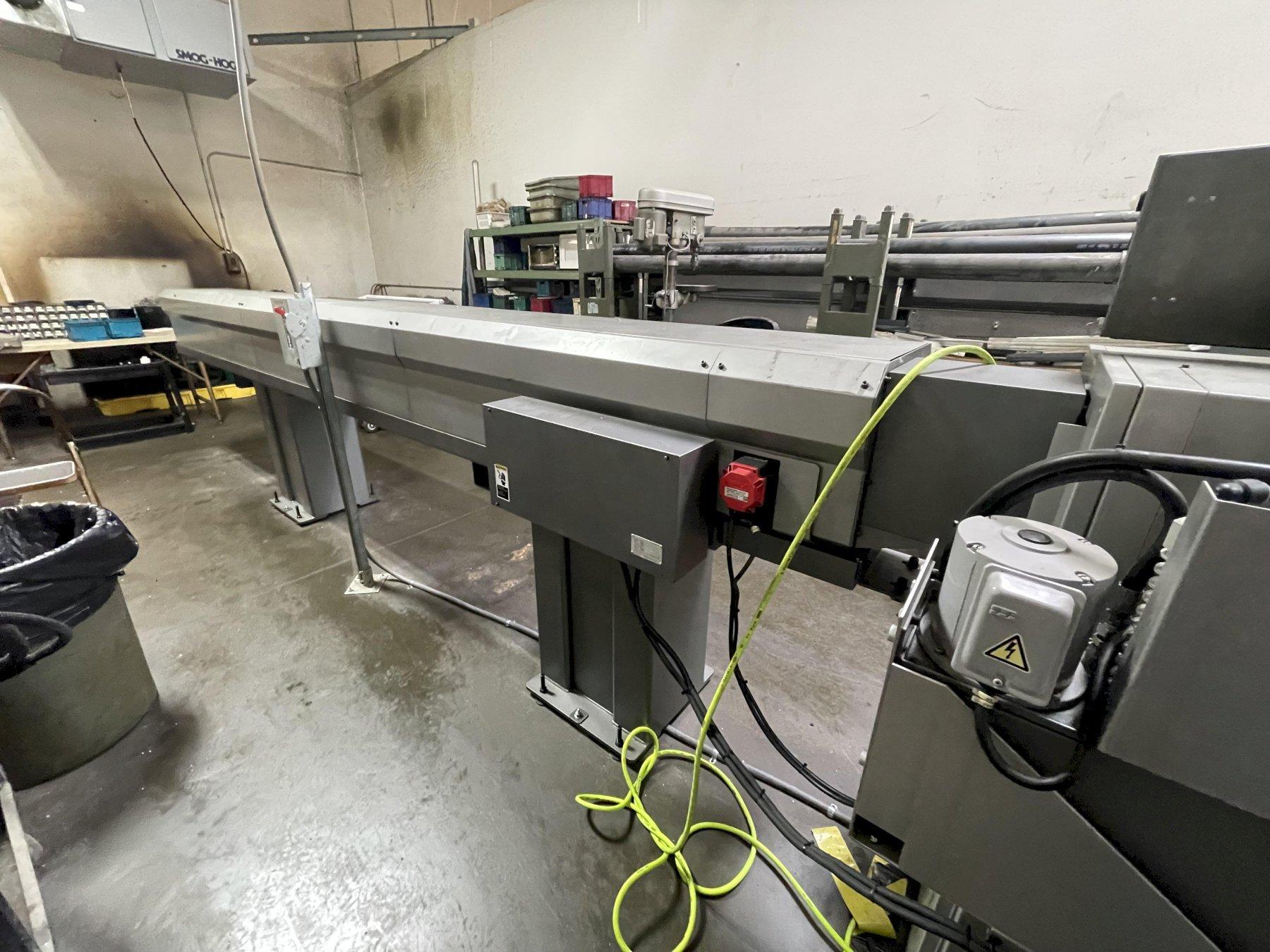

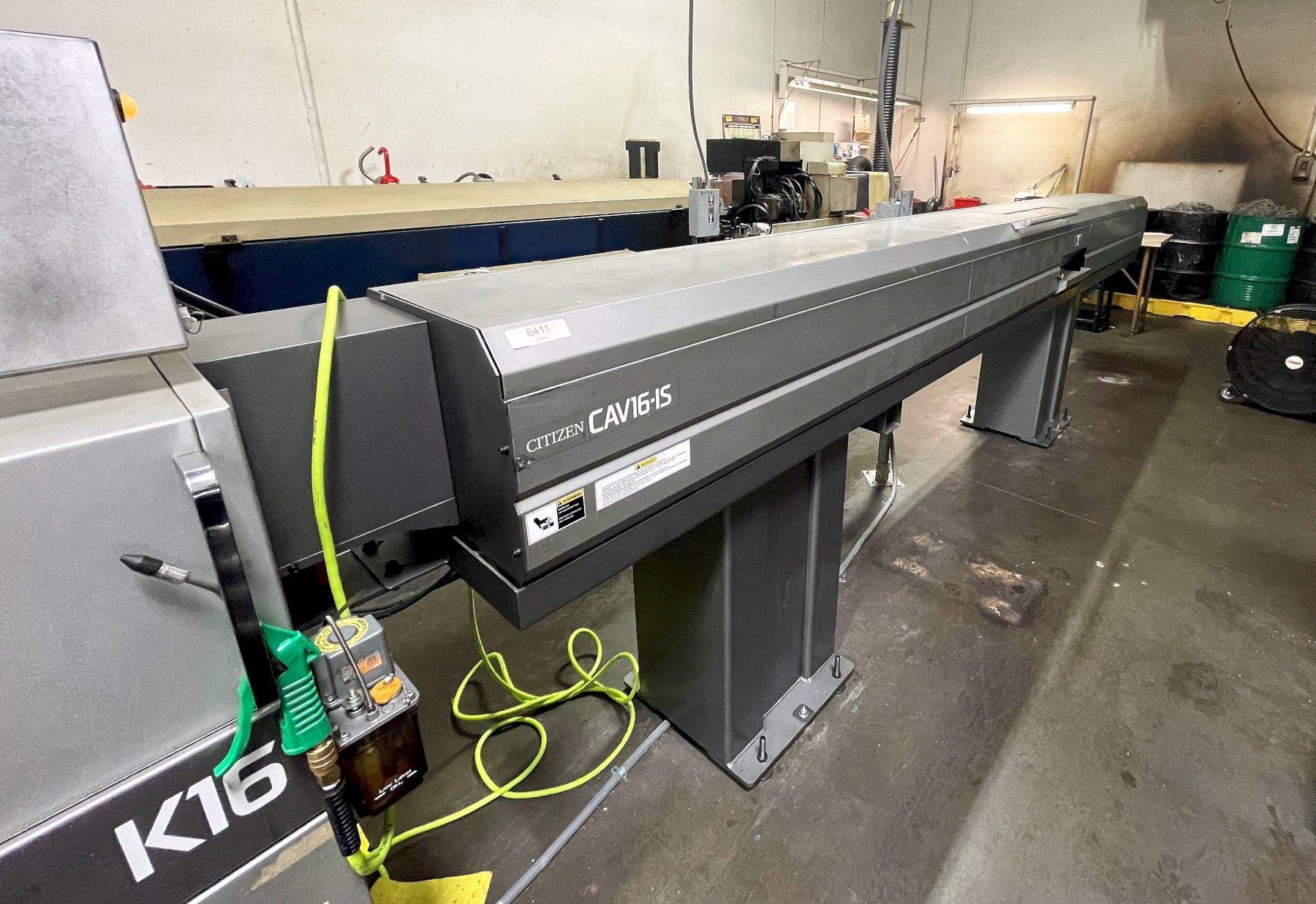

Fanuc CNC Control and Citizen 12' CAV16-IS Barfeeder.
