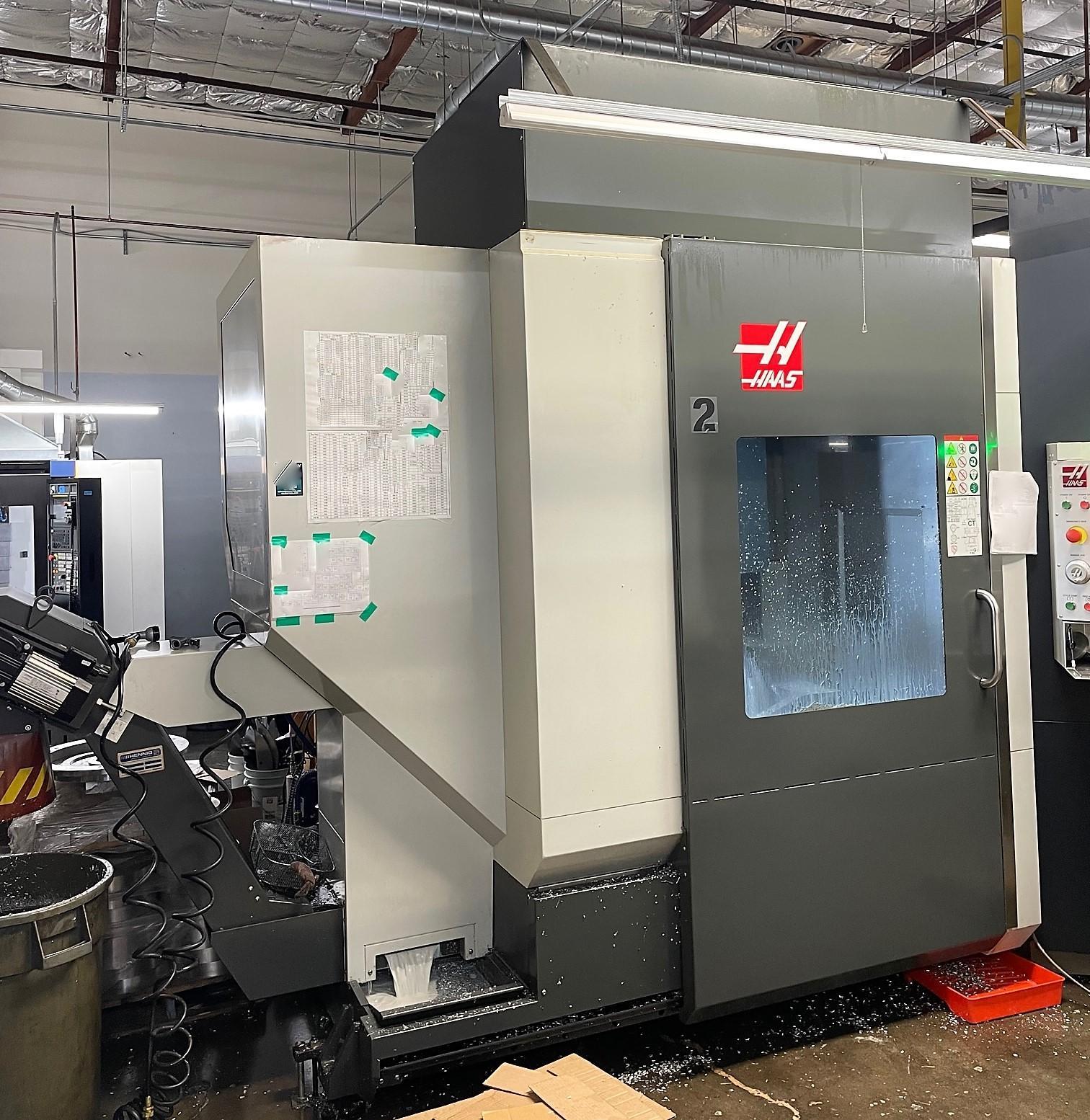

Haas UMC 750 5-Axis Universal Machining Center 2019 with: Trinity AX-55 Pallet APS, Fanuc Robot, High Speed Machining, 40-ATC, 1000 PSI Through Spindle Coolant, Programmable Coolant, and Chip Conveyor.

Inventory

Haas UMC-750 5-Axis Trinity AX-55 Pallet APS 2019 with: Fanuc Robot, High Speed Machining, 40-ATC, 1000 PSI Through Spindle Coolant, Programmable Coolant, and Chip Conveyor.

BrandHAAS

ModelUMC-750

TypeMachining Centers, Universal

Stock #6454

ConditionNot specified

Year2019

LocationFullerton, California
United States

Request a Quote

Haas UMC-750 5-Axis Trinity AX-55 Pallet APS 2019 with: Fanuc Robot, High Speed Machining, 40-ATC, 1000 PSI Through Spindle Coolant, Programmable Coolant, and Chip Conveyor.

Specifications
Files & Attachments

CNC Control	yes
Type of CNC Control	HAAS
Pallet Storage Stations	55
Platter Diameter	19.7 inches
Max. Weight on Platter	660 lbs.
# of Axis	5
X	30 inches
Y	20 inches
Z	20 inches
B-Axis Travels	120 Deg. To 35- Deg.
B-Axis Speed	50 Deg. / Sec.
C-Axis Travels	360 Deg.
C-Axis Speed	50 Deg. / Sec.
Min.-Max. Spindle Nose-Platter	4" - 24"
RPM	10000
Power	30 horsepower
Max. Cutting	650 IPM
Rapid Feedrates (X,Y,Z)	900 IPM
# ATC	40
Max. Tool Diameter	2.5 inches
Max. Tool Length	12 inches
Max. Tool Weight	12 pounds
Tool Time - Tool Time	2.8 sec.
Chip To Chip	3.6 sec.
Dimensions	168" x 93" x 110"
Weight	14250 pounds

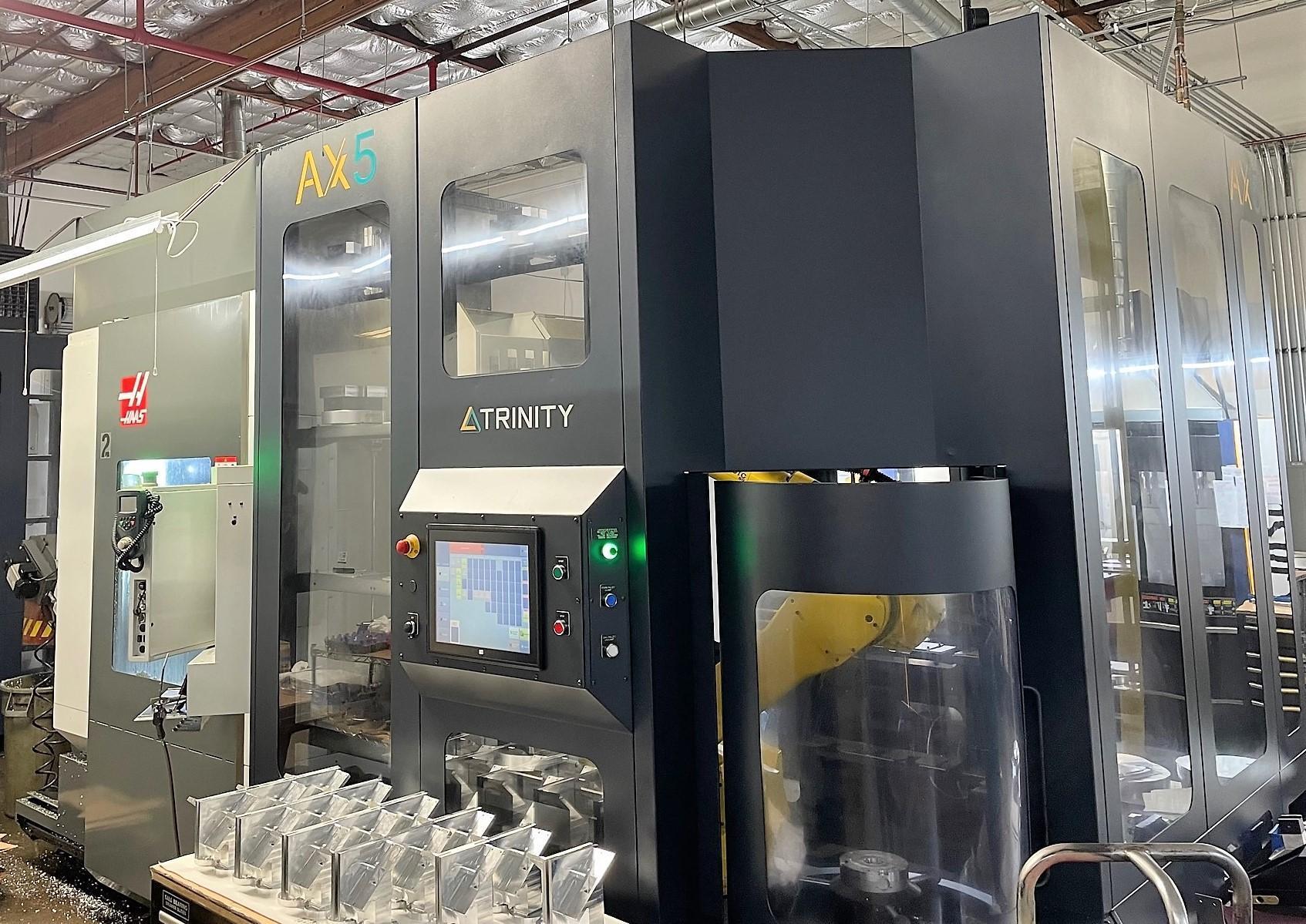

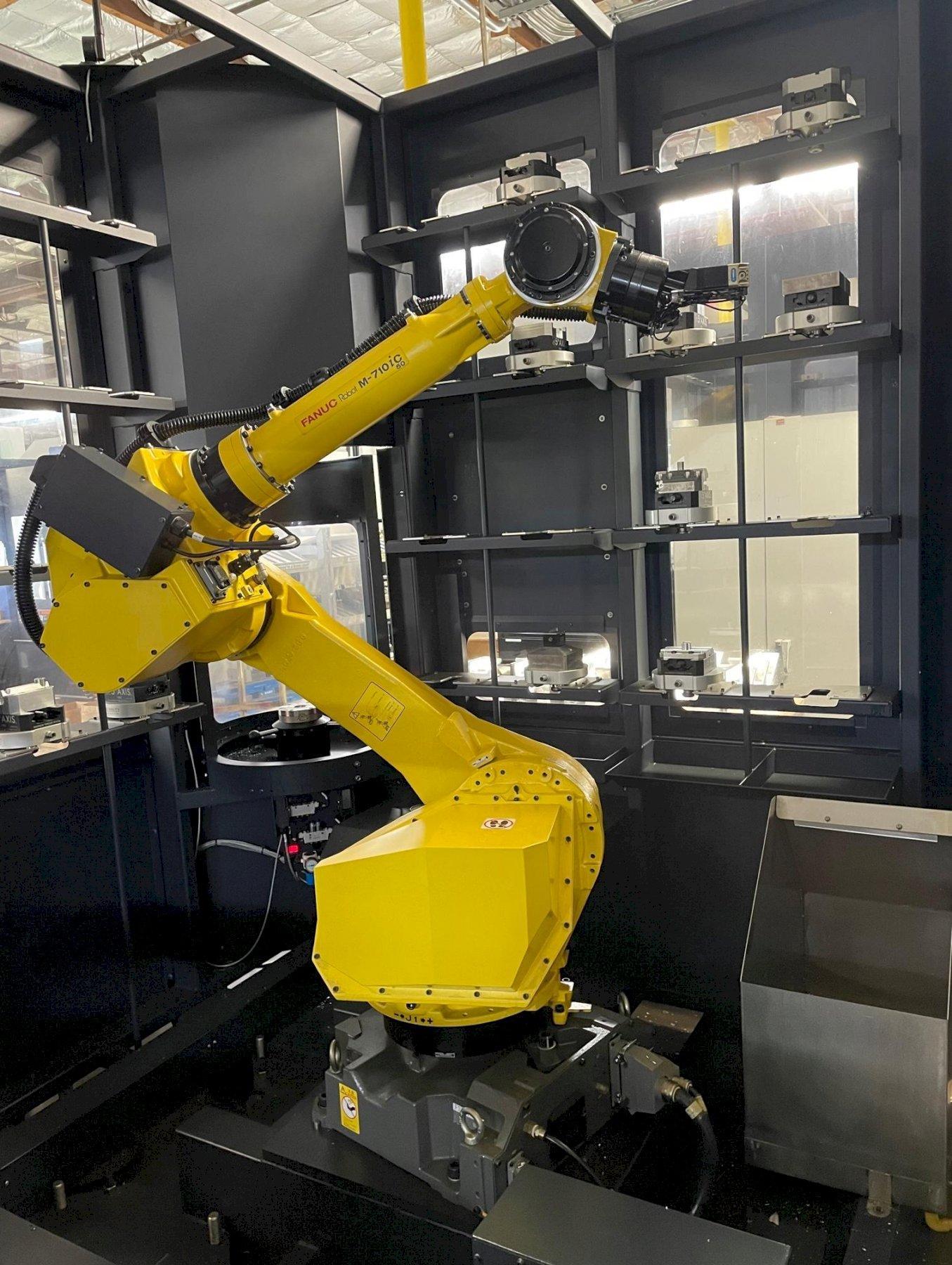

Haas CNC Control, Trinity AX5-55 Pallets Automated Pallet System, Fanuc Robot, High Speed Machining, 40-ATC, 1,000 PSI Through Spindle Coolant, Programmable Coolant, Chip Conveyor, and Coolant Tank.

Haas UMC-750 5-Axis Trinity AX-55 Pallet APS 2019 with: Fanuc Robot, High Speed Machining, 40-ATC, 1000 PSI Through Spindle Coolant, Programmable Coolant, and Chip Conveyor.
