Listing Details

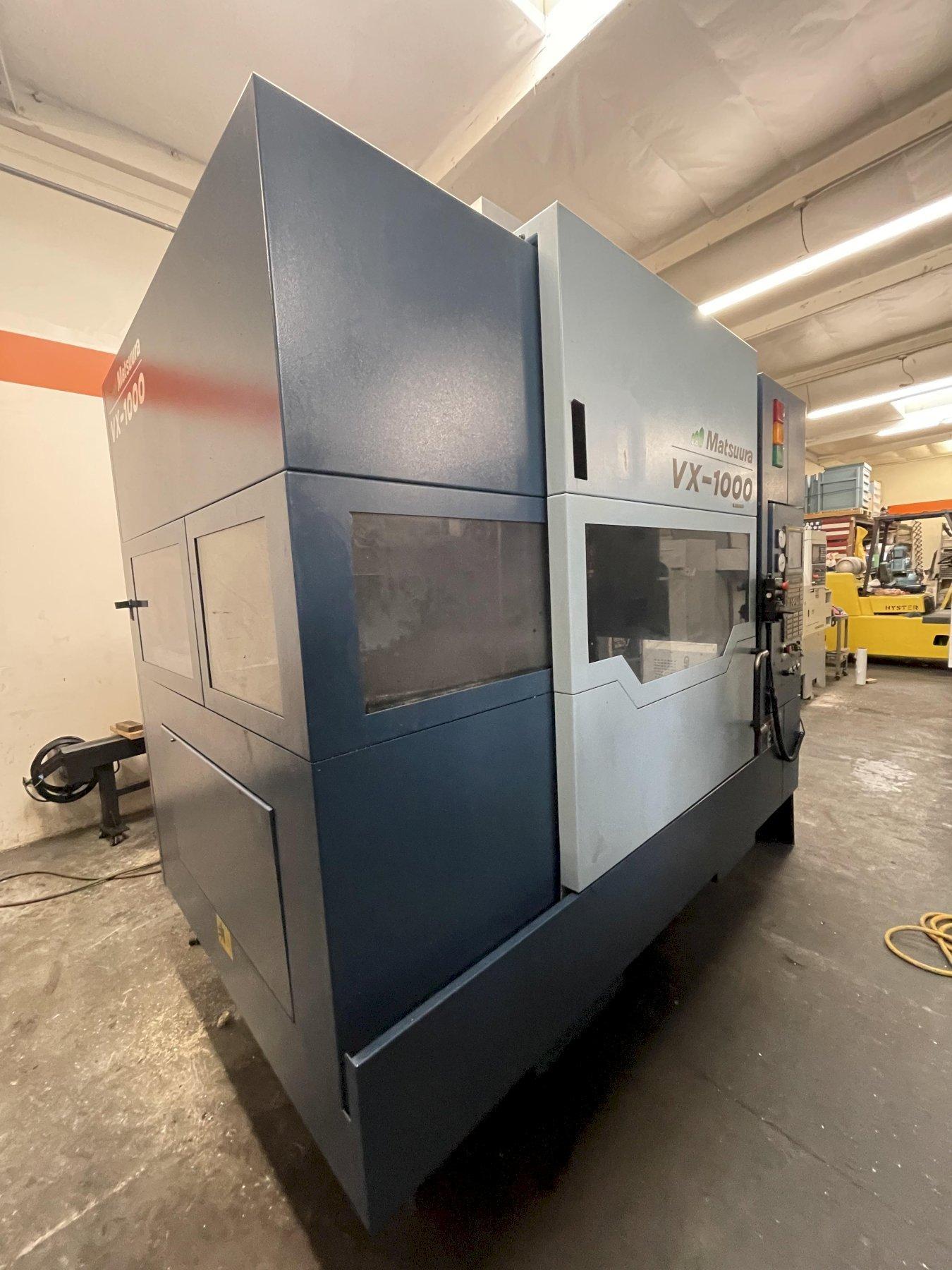

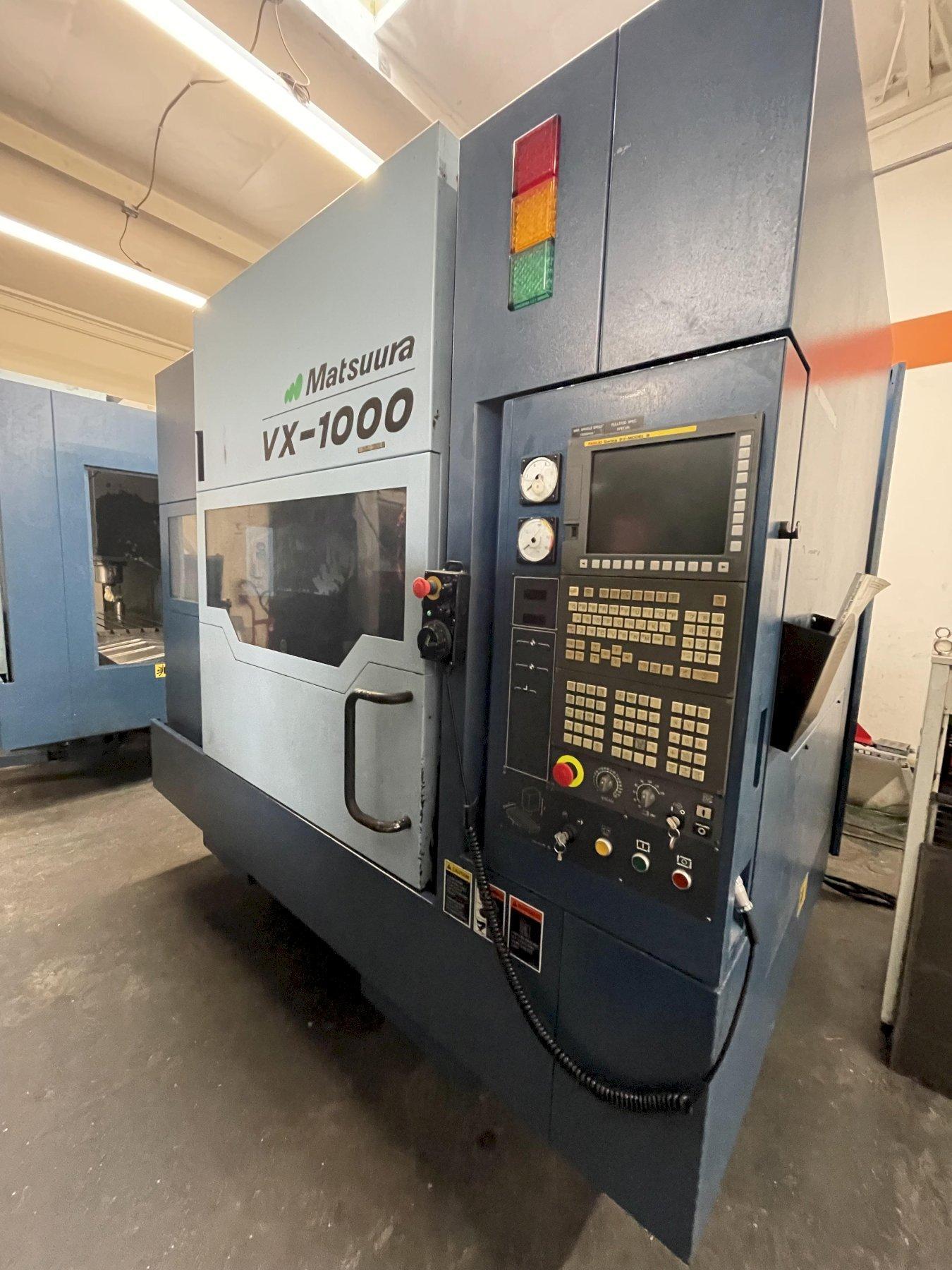

Matsuura VX-1000 Vertical Machining Center with Fanuc Series 31iB Control System, CAT40 Big Plus Spindle. Note: Needs Spindle Bearings


Not specified


Stock #


CNC Control yes

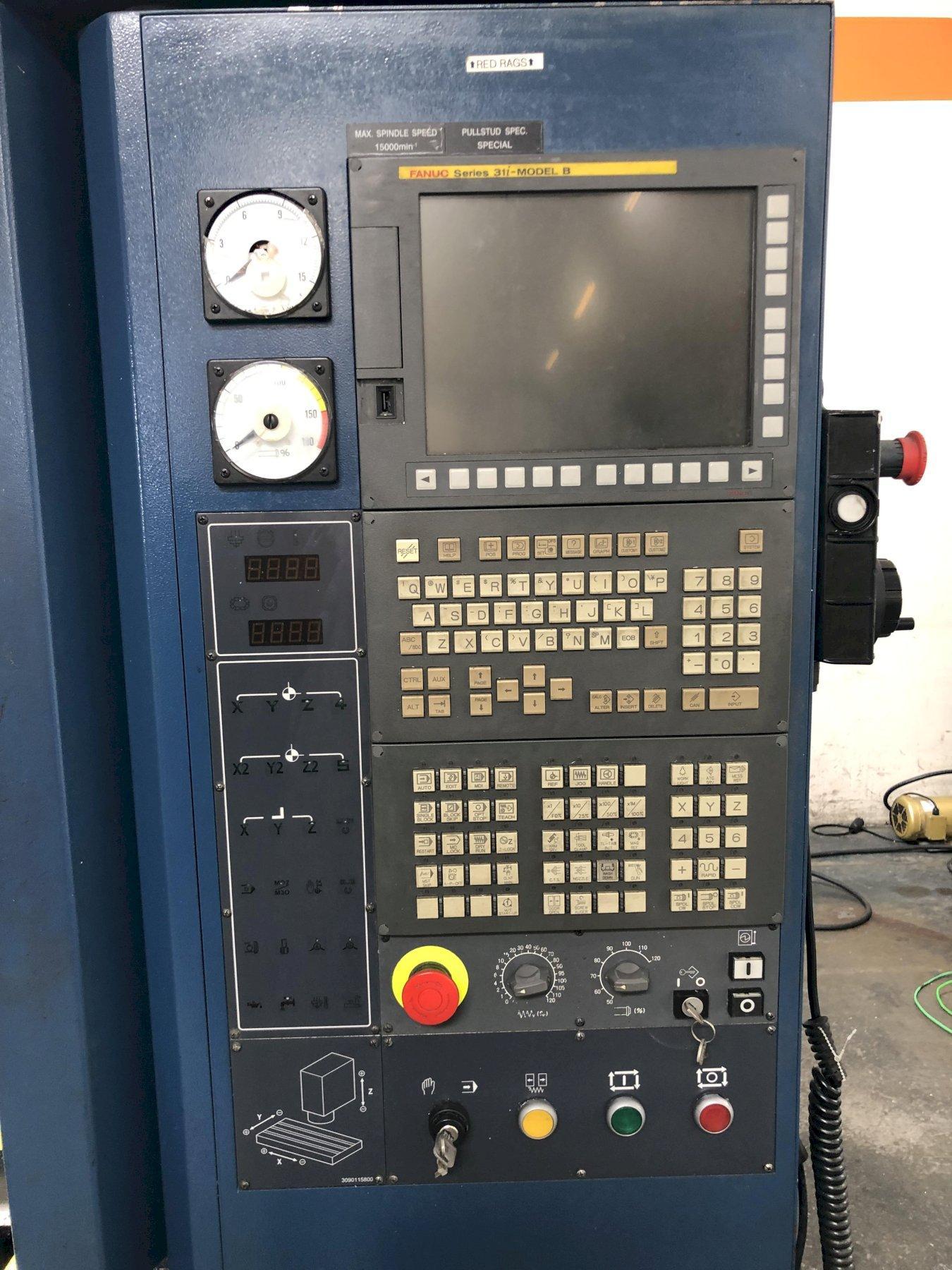

Type of CNC Control Fanuc 31i
# Axis 3
X-Axis Travel: mm (in) 1,020 (40.15)
Y-Axis Travel: mm (in) 610 (24.01)
Z-Axis Travel: mm (in) 610 (24.01)
Working Surface mm (in) 1,200 x 600 (47.24 x 23.62)
Loading Capacity: kg (lb) 500 (1,100)
Spindle Motor: kW AC 15/22 (high-speed winding: continuous/15 min)
Spindle Taper CT40 Big Plus
Spindle Speed Range min-¹ 50 - 15,000 (Grease Lubrication)
Max. Spindle Torque: N • m 150/1,400min-¹
Number of Tools 30
Tool Selection Memory Random
Tool Change Arm Double Grip Type
Electrical Power Supply: kVA 43 (varies with option configuration)
Power Supply Voltage: V AC 200/220 ± 10% (Transformer required if supply voltage is other than shown)
Power Supply Frequency: Hz 50/60 ± 1
Compressed Air Supply: MPa 0.54 - 0.93
Oil Coolant Tank Capacity: L 300
Oil Coolant Tank Capacity: L 36

Equipped With

15,000 RPM, 30 HP. High Pressure Spindle Thru Coolant 300 PSI. Chip Flush System. Dual Spiral Augers. Lift-up Left Side Chip Conveyor. Portable Manual Pulse Generator.

***Spindle is noisy, will probably need to be rebuilt**
