Listing Details

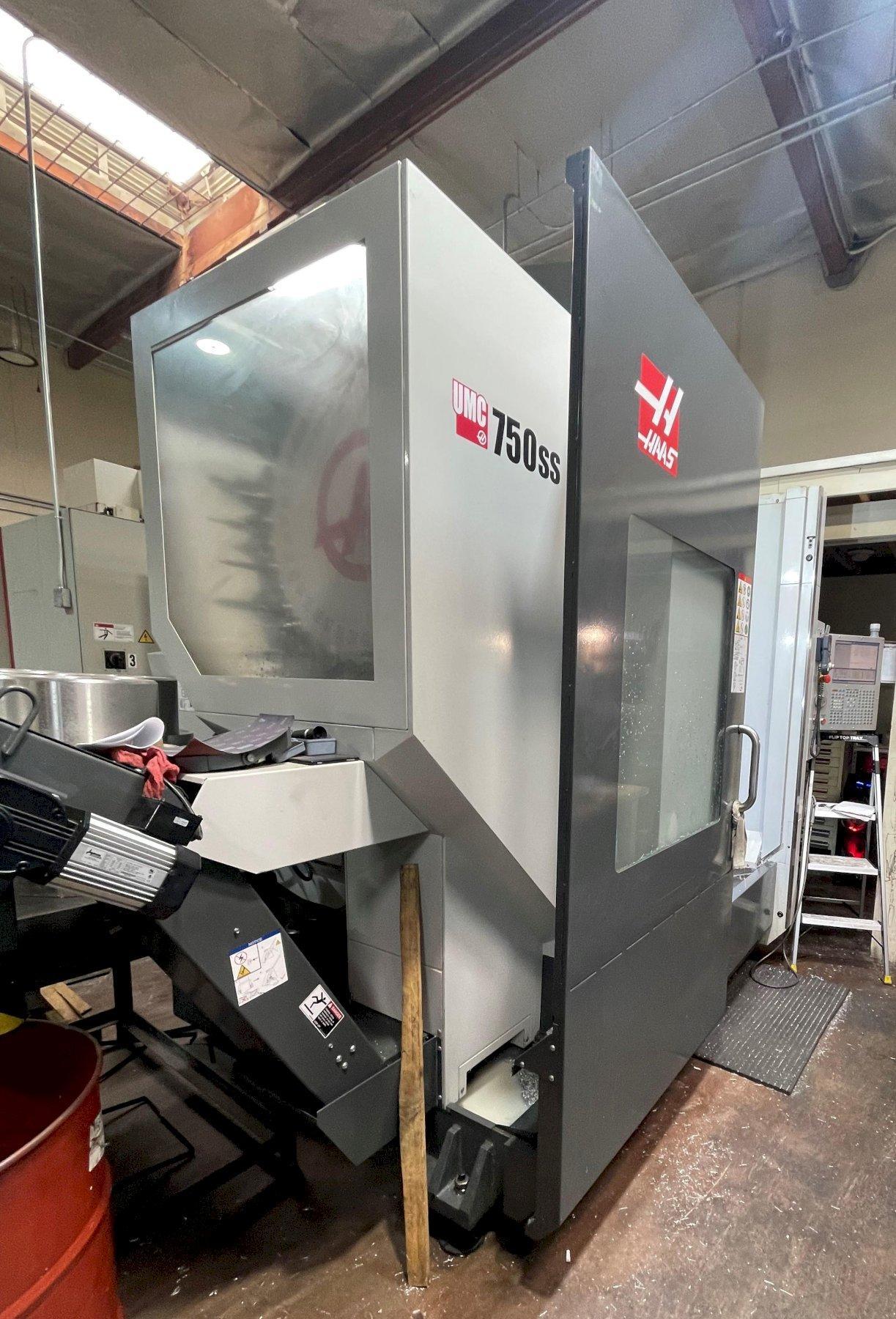

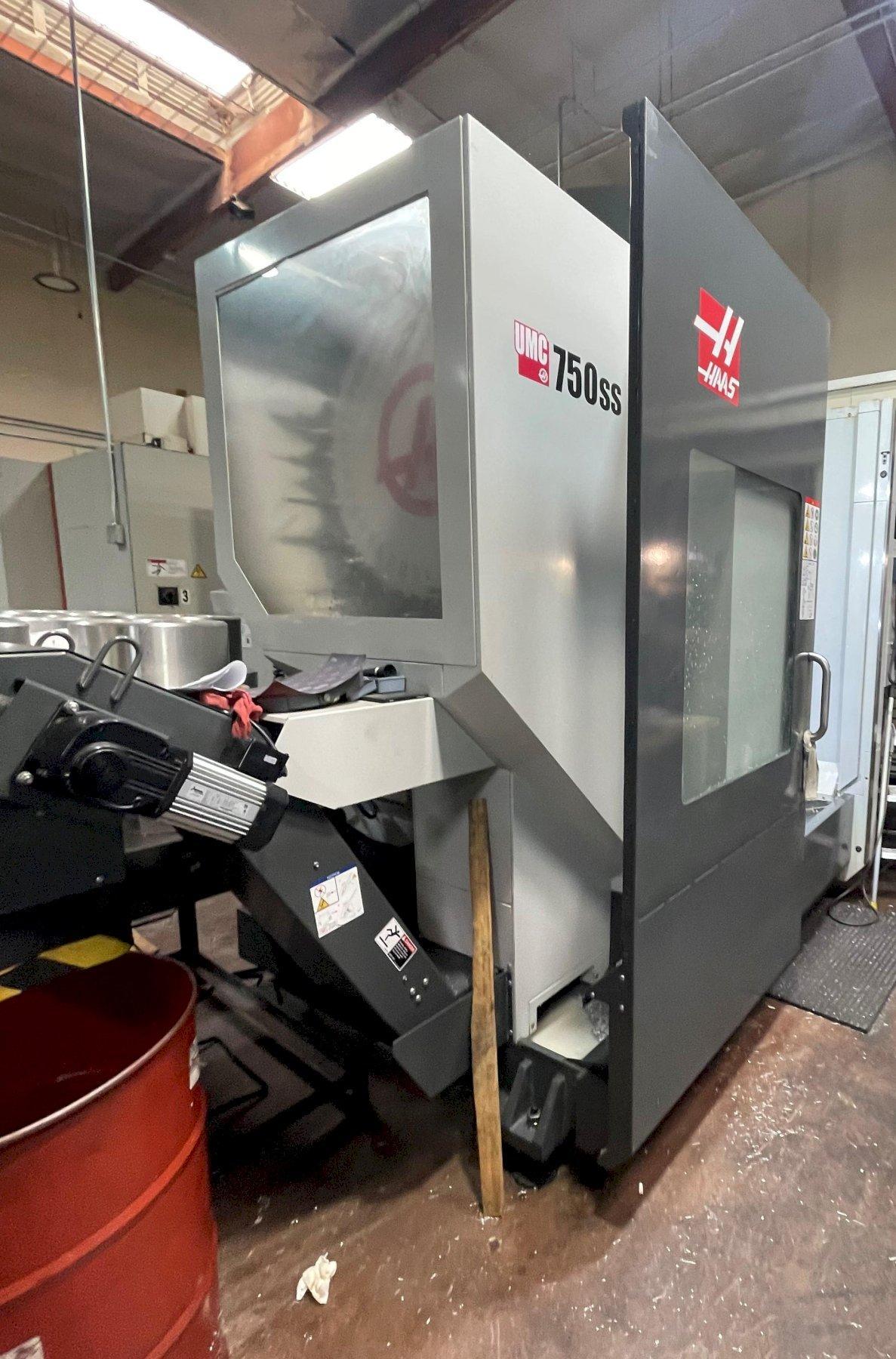

Haas UMC-750SS Super-Speed 5-Axis Vertical Machining Center 32 GB Expanded Memory Belt Type Chip Conveyor and More


Not specified


Stock #


CNC Control yes
Type of CNC Control Haas
# Axis 5
Travels: X-Axis 30.0 in (762 mm)
Travels: Y-Axis 20.0 in (508 mm)
Travels: Z-Axis 20.0 in (508 mm)
Spindle Nose to Table (~MAX) 24.0 in
Spindle Nose to Table (~MIN) 4.0 in
Spindle Max Rating 30.0 HP (22.4 kW)
Spindle Max. Speed 15,000 RPM
Spindle Taper CT40
Spindle Drive System Inline Direct-Drive
B-Axis - Tilt: Travel 120 ° to 35- °
B-Axis - Tilt: Max. Speed 170 °/sec
C-Axis - Rotation: Travel 360 °
C-Axis - Rotation: Max. Speed 179 °/sec
C-Axis - Rotation: Max. Part Swing 27.0 in (686 mm)
Platter: Diameter 19.70 in (500 mm)
Platter: Max. Weight on Platter 660 lbs. (300.0 kg)
Feedrates: Max. Cutting 650 ipm (16.5 m/min)
Feedrate: Rapids on X-Axis 1,200 ipm (30.5 m/min)
Feedrate: Rapids on Y-Axis 1,200 ipm (30.5 m/min)
Feedrate: Rapids on Z-Axis 1,200 ipm (30.5 m/min)
Tool Changer: Type SMTC
Tool Changer: Capacity 40+1
Tool Changer: Max. Tool Weight 12 lb (5.4 kg)

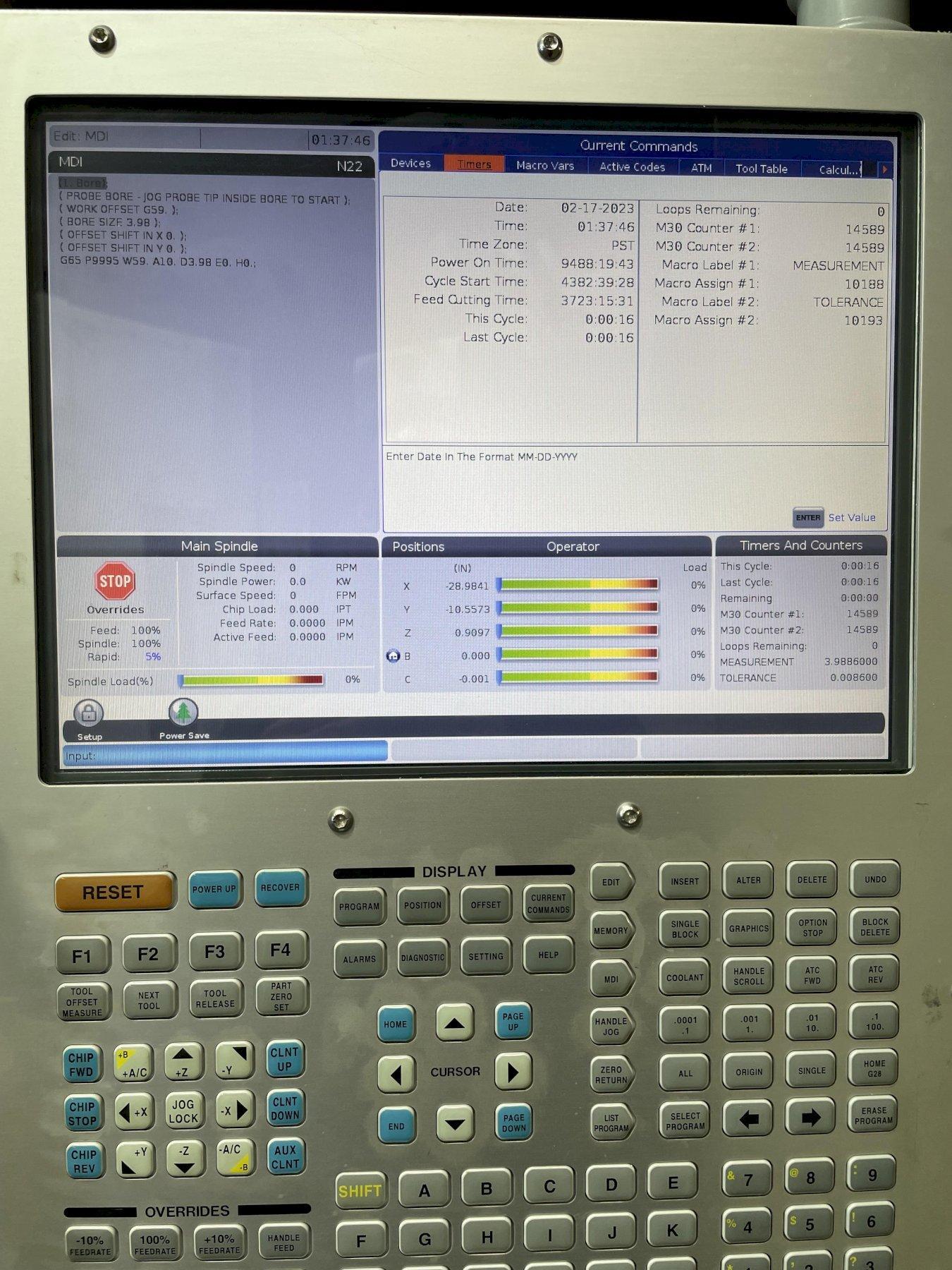

Machine Hours: Power On Time 9,488
Machine Hours: Cycle Start Time 4,382
Machine Hours: Feed Cutting Time 3,723
Coolant Capacity 55 Gal (208 L)
Weight 14,250 lb (6,463.8 kg)

Equipped With

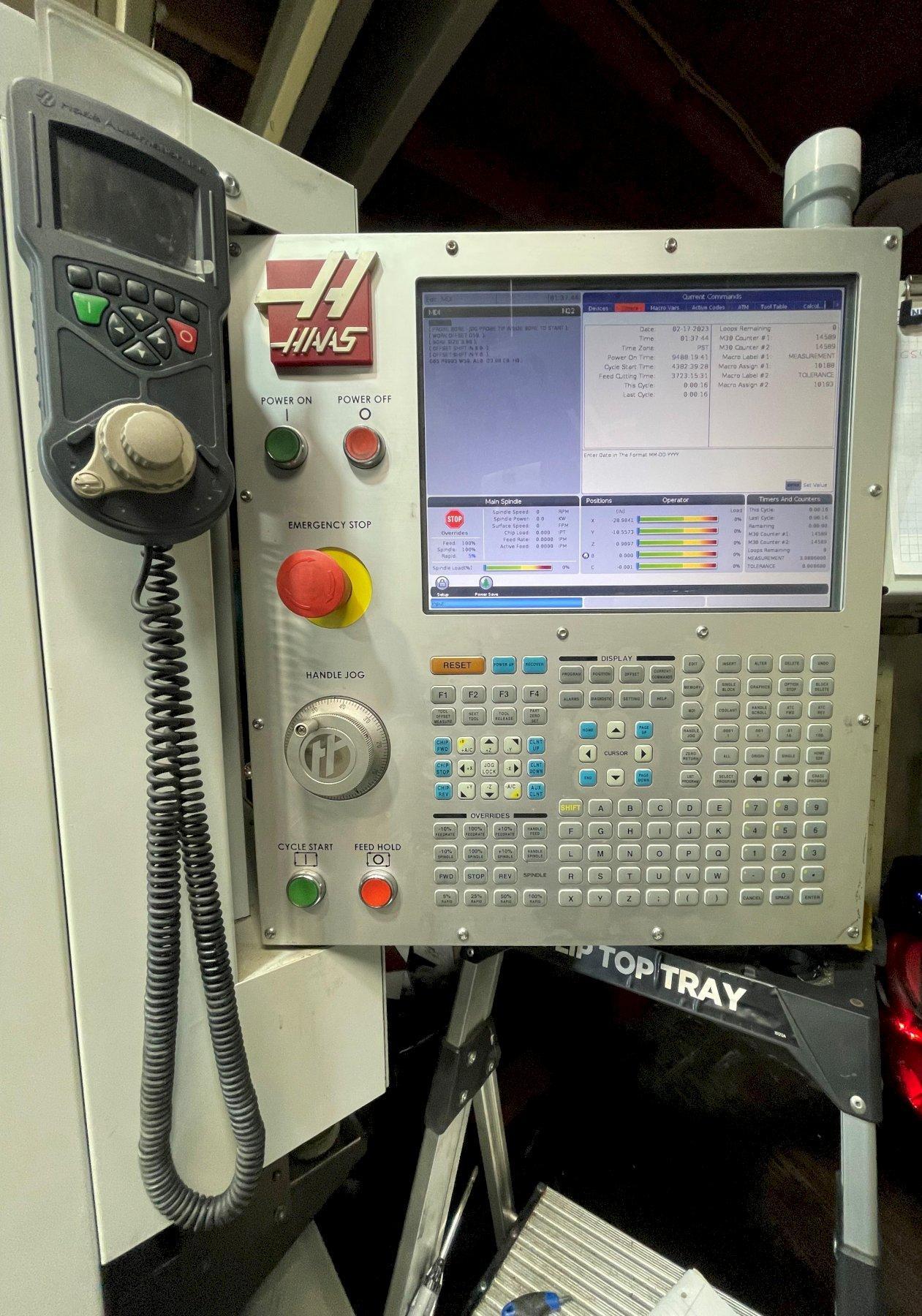

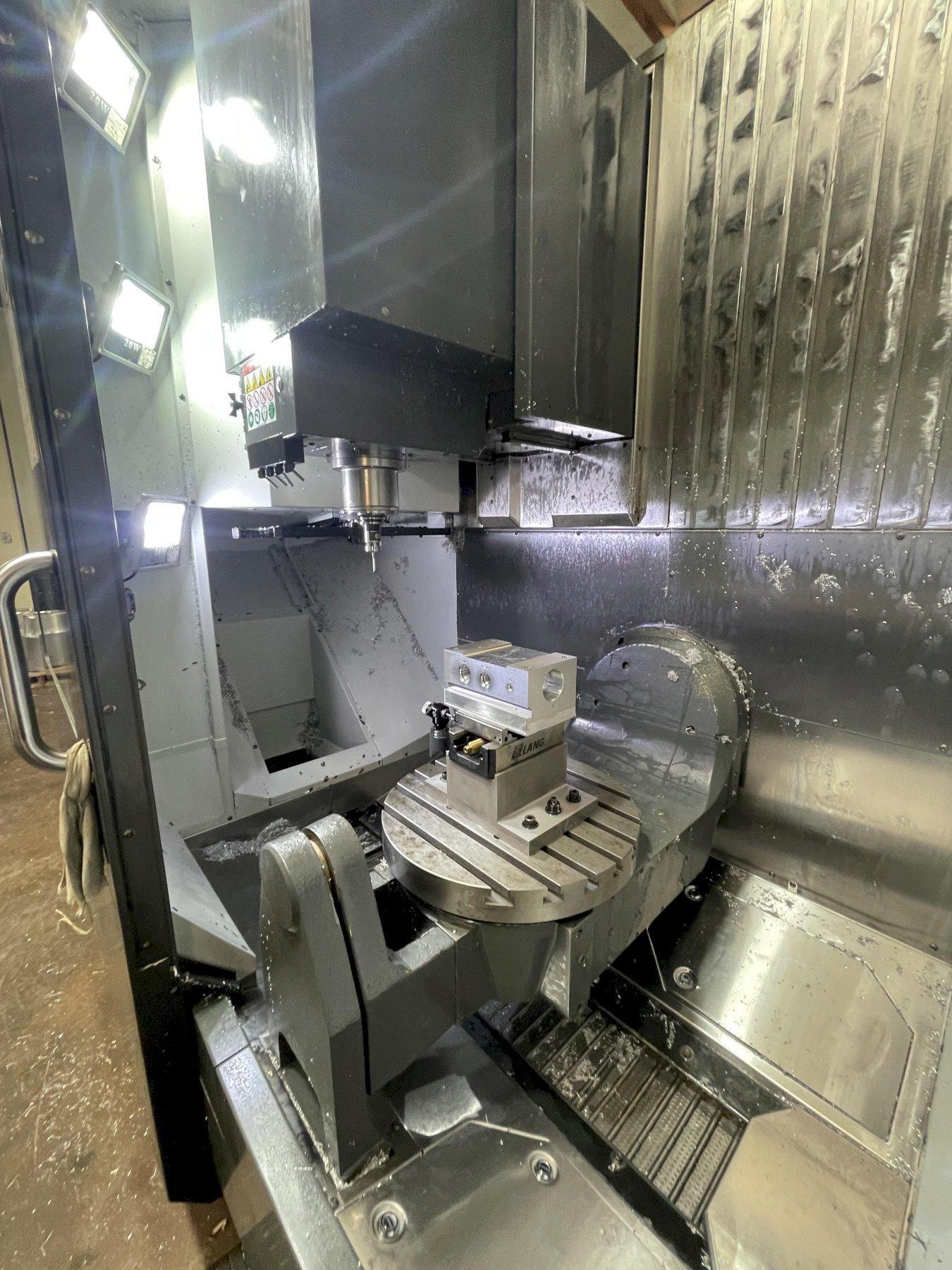

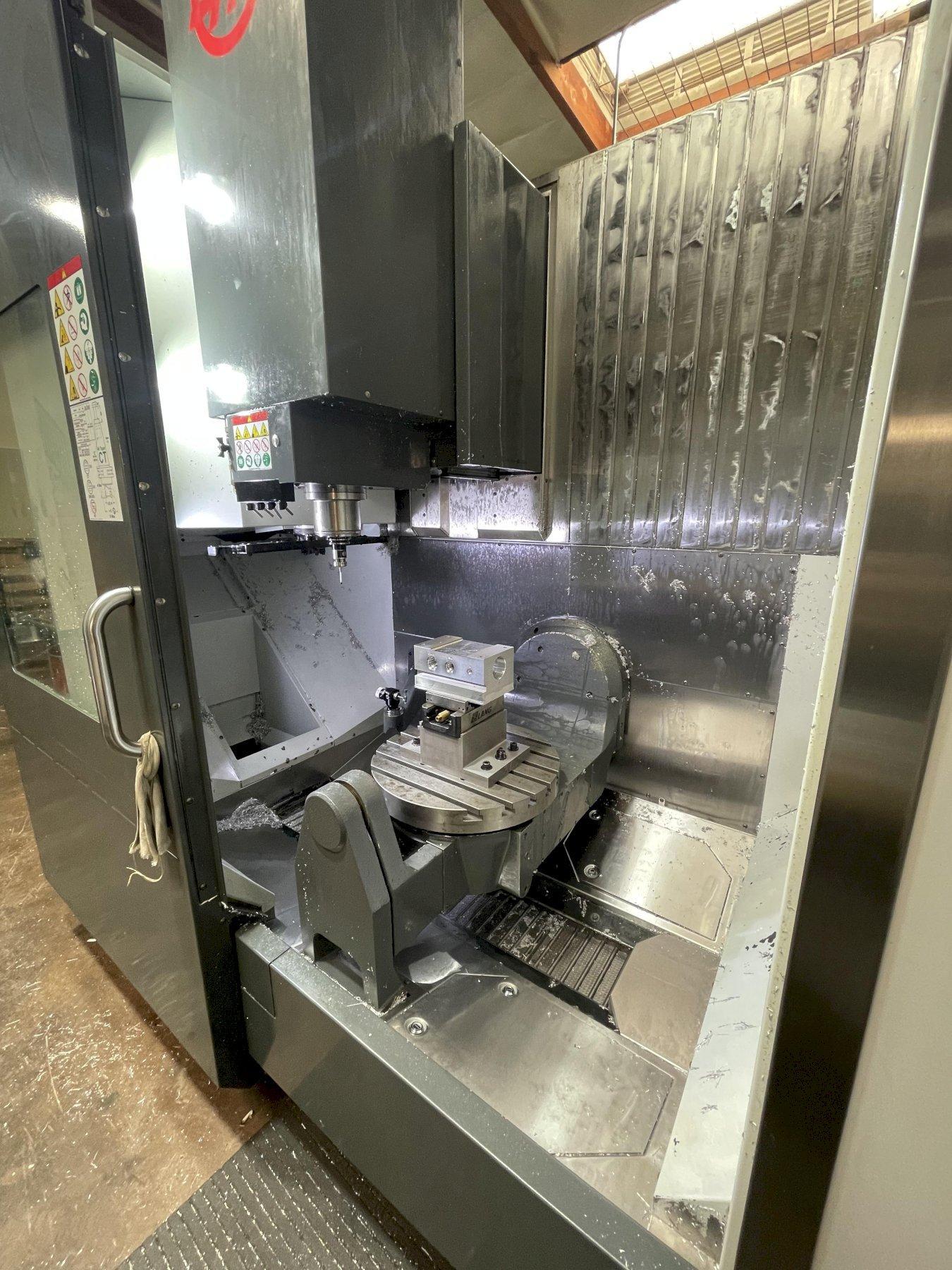

2019 Haas UMC-750SS Super-Speed 5-Axis Vertical Machining Center; 30" x 20" x 20" (762 x 508 x 508mm), equipped with: 500mm integrated high-speed 2-Axis trunnion rotary table, 40 taper, 30 HP (22.4 kW) vector drive, 15,000 RPM, inline direct-drive, high-speed 40+1 side mount tool changer, 1,200 IPM (30.5 m/min) rapids, high-speed machining, spindle orientation, macros, coordinate rotation & scaling, Wireless Intuitive Probing System, second home button, color remote jog handle. power-failure detection module, 32 GB expanded memory, 15" color LED monitor, USB port, memory lock key switch, rigid tapping and 75-gallon (284 liter) flood coolant system, Belt Type Chip Conveyor

Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications must be independently verified, and locations are subject to change without notice.  All items are subject to availability and prior sale.
