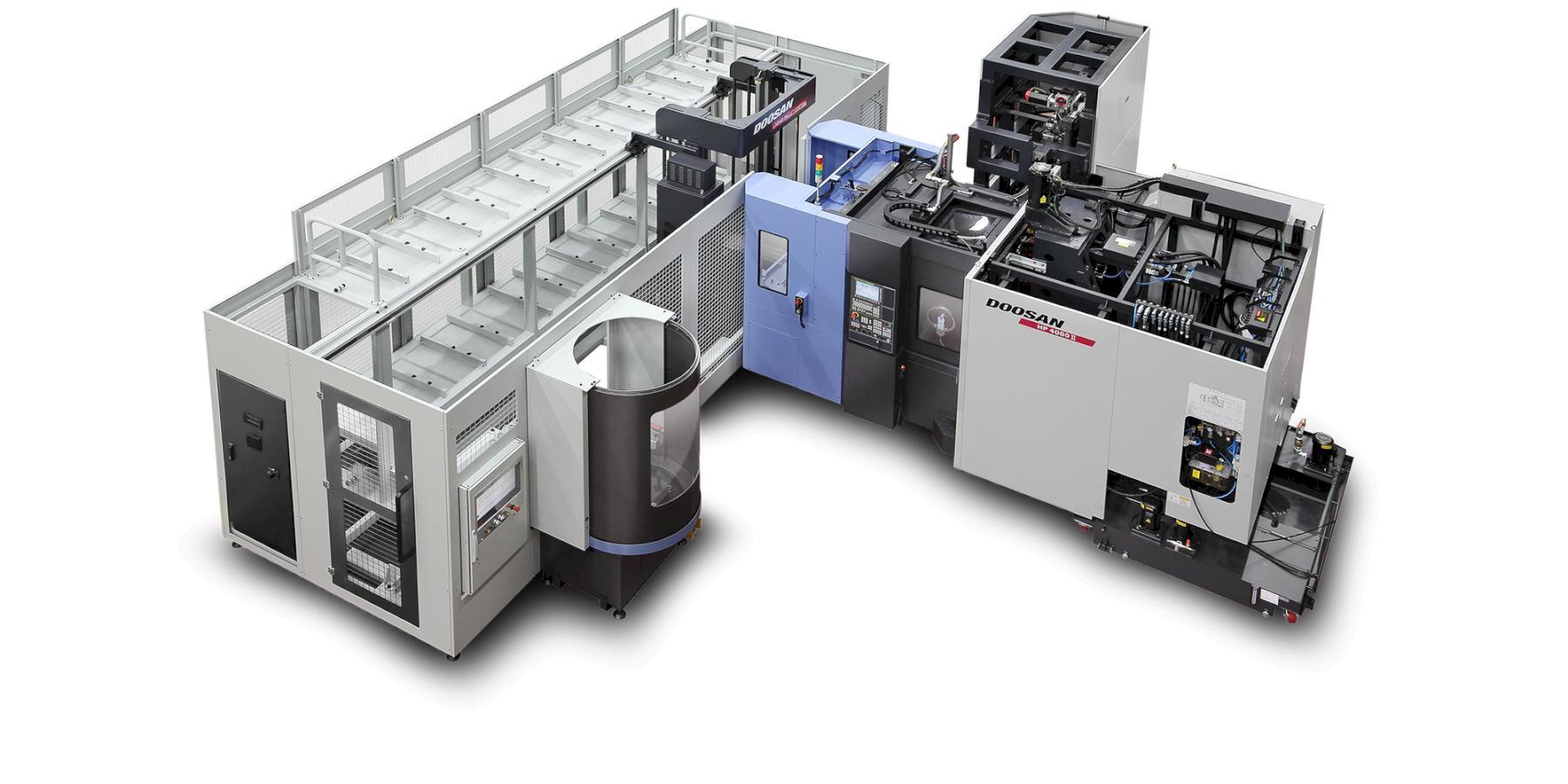

Doosan NHP 4000 HMC with DN Linear 12 Pallet System, Probing, Tool Laser Measurment, Micro Chip Conveyor, TSC

Manufacturer
DOOSAN

Condition
Not specified

Model
NHP 4000

Stock #
6585

Year
2019

Type of CNC Control Fanuc 31i-B Control
Capacity: X-Axis Travel 22.047 in (560 mm)
Capacity: Y-Axis Travel 25.196 in (640 mm)
Capacity: Z-Axis Travel 25.984 in (660 mm)
Capacity: Table Loading Area (15.75 x 15.75 in)
Capacity: Maximum Part Diameter 24.8 in (630 mm)
Capacity: Maximum Part Height (with no hydraulic interface) 35.43 in (900 mm)
Indexing Table and Pallet Changer: Indexing Full B-Axis
Indexing Table and Pallet Changer: Pallet Surface (Standard, no Center Bushing) (24) M16 x 2.0 Tapped Base
Motion: X-Axis Rapid Traverse Rate 2,362 ipm (60 m/min)
Motion: Y-Axis Rapid Traverse Rate 2,362 ipm (60 m/min)
Motion: Z-Axis Rapid Traverse Rate 2,362 ipm (60 m/min)
Spindle: Big Plus Spindle System CAT 40 Big Plus
Spindle: Spindle Speed 15,000 rpm
Spindle: Spindle Motor (S3 25%) 25 / 49.6 hp (18.5 / 37 kW)
Spindle: Spindle Torque (S3 10%) 223.6 ft-lbs (303 nm)

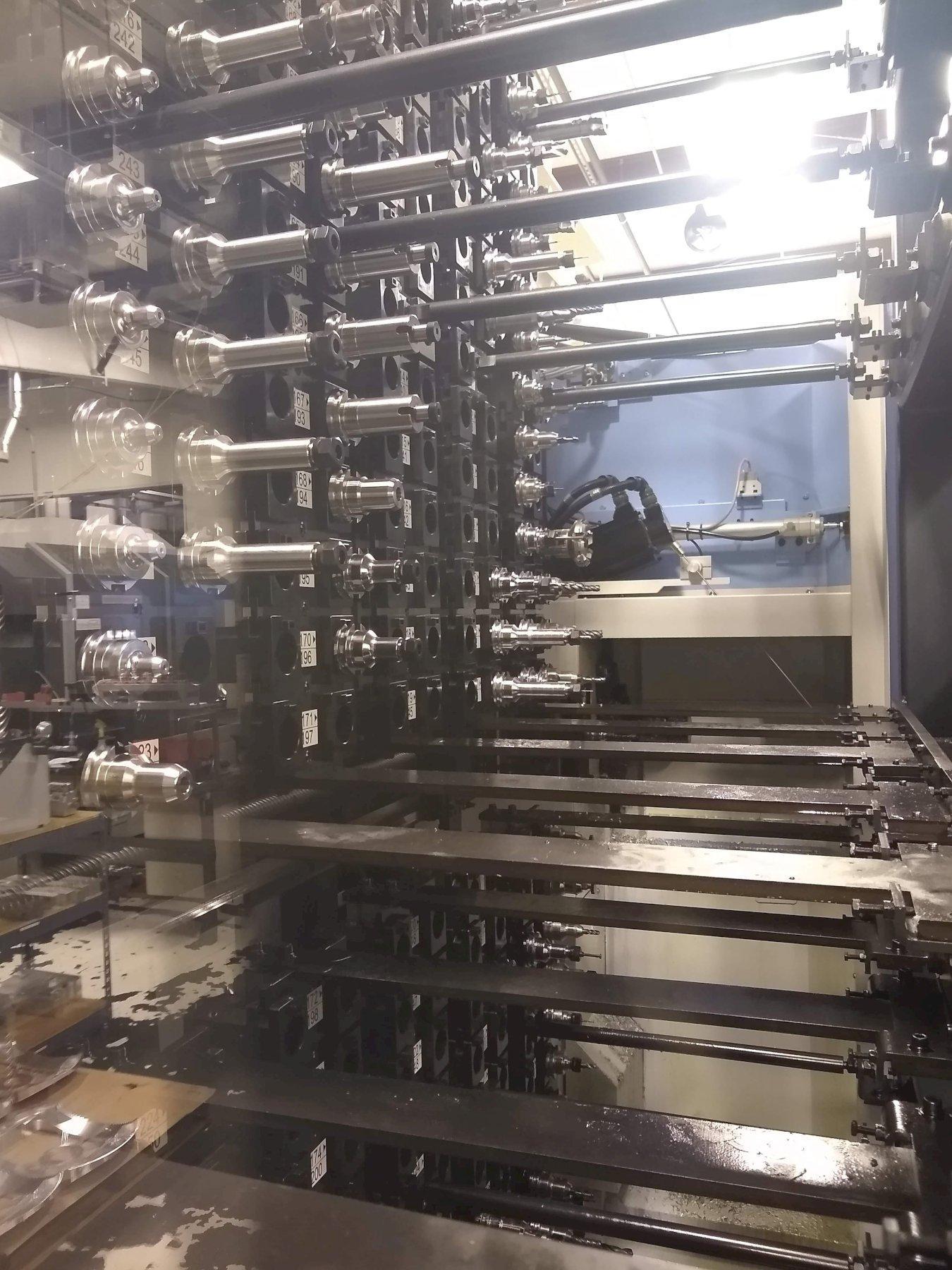

Automatic Tool Changer Specifications: Number of Tools 175
Utility: Power Required 80 kVA / 210 amps @ 220v
Utility: Voltage Required - Fanuc 2-5-235 Volts / 3 Phase
General: Machine Height 105.9 in (2,690 mm)

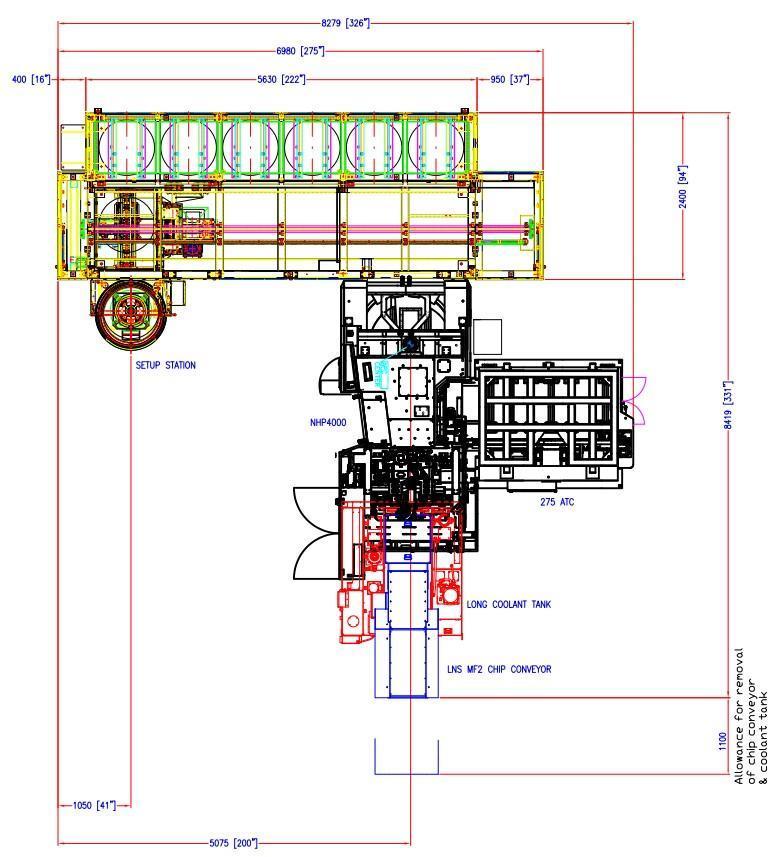

General: Floor Space Required (L x W) 195 x 90.55 in (4,950 x 2,300 mm)
General: Machine Weight 21,384 lbs (8,700 kg)
DN Linear Pallet System yes

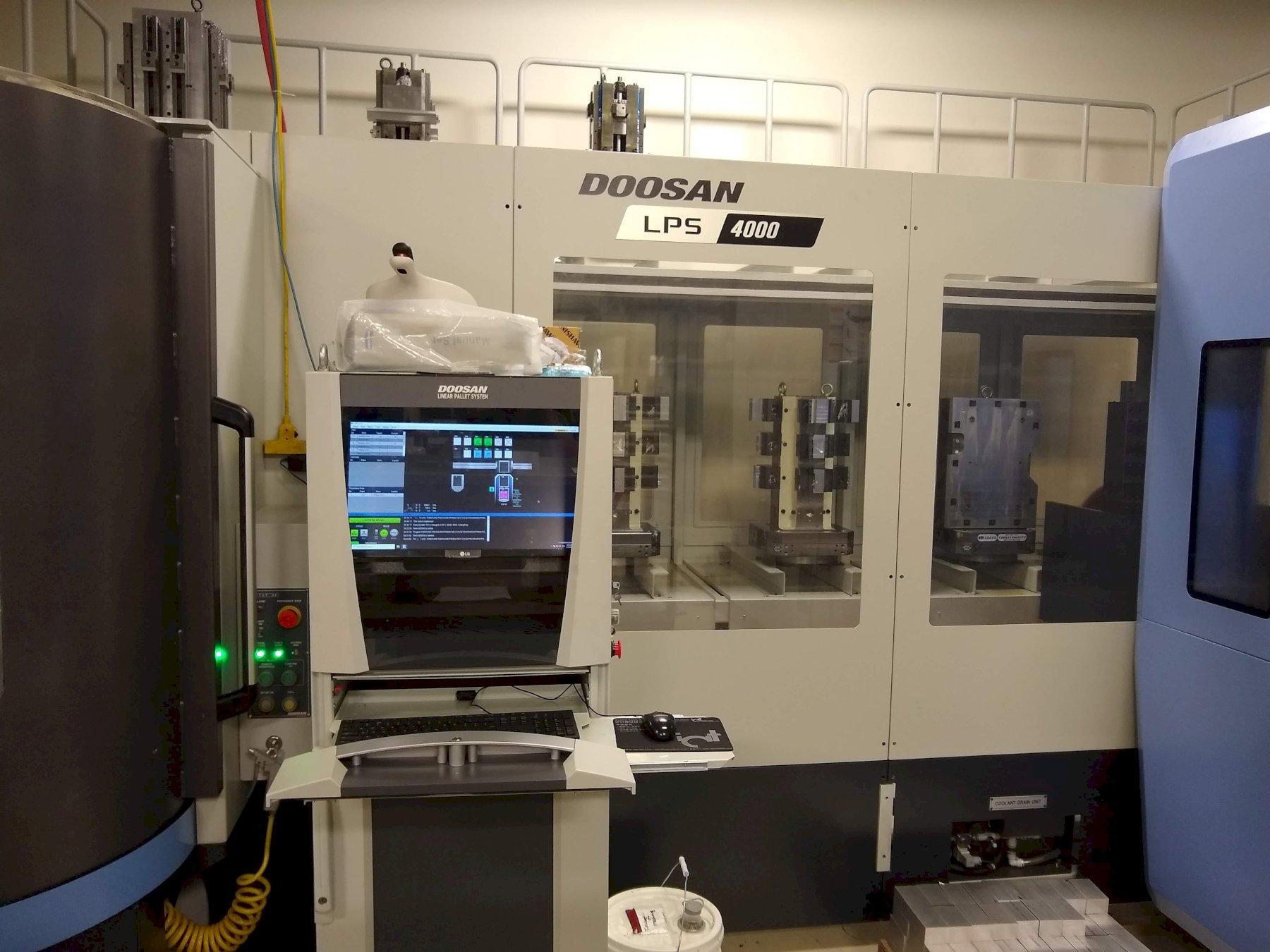

Machine Specifications: Description LSP 4000 for NHP 4000
Machine Specifications: Pallet Dimension 15.7 x 15.7 in (400 x 400 mm)
Machine Specifications: Workpiece Diameter 24.8 / 23.6 in (630 / 600 mm)
Machine Specifications: Workpiece Weight 881.8 lbs (440 kg)
Machine Specifications: Forking Type Single Fork (Telescopic Mechanism)
Machine Specifications: Turntable Indexing 45Ń
Machine Specifications: Power Supply (AGV) Trolley Bar
Machine Specifications: (AGV<-> Main Control) Optical
Machine Specifications: Number of Machines Expandable 1 ~ 7
Machine Specifications: Number of Setup Stations 1

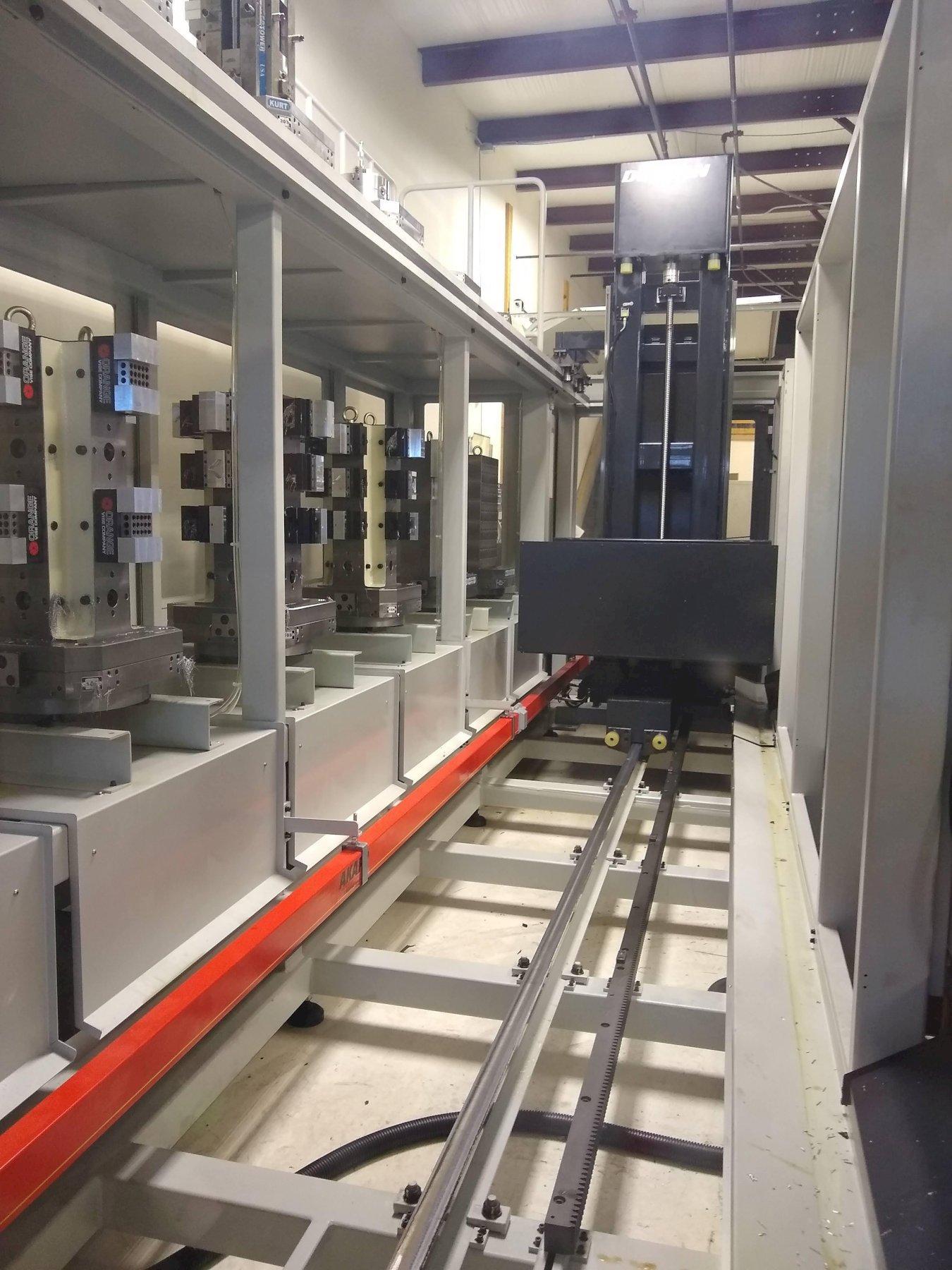

Machine Specifications: Number of Pallet 12 (6 x 6 Double Stack)

Equipped With

Doosan NHP 4000 Horizontal Machining Center with DN Linear 12 Pallet System. Comes with Probing, Tool Laser Measurment Chip Conveyor, Measurements

Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
