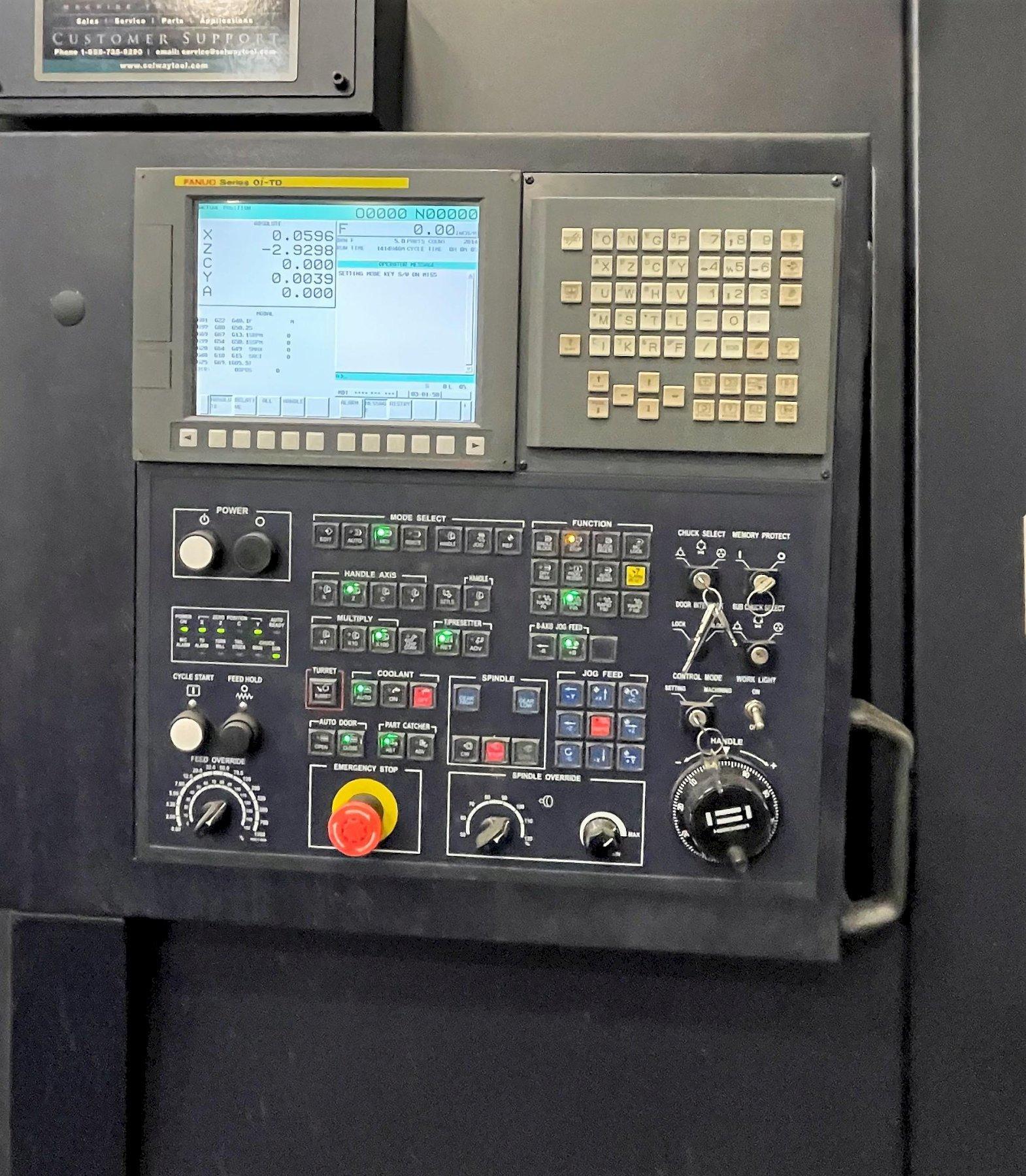

| NC Controller |
Fanuc 0i-TF |
| Swing over bed |
27.56 in |
| Swing Over Saddle |
21.65 in |
| Max. cutting diameter |
16.54 in |
| Standard Cutting Diameter |
10 in |
| Chuck-Size |
8 in [Sub: 8 in] |
| Type of Spindle Nose |
ASA A26 [Sub:A2-6] |
| Max. Spindle Speed |
5,000 rpm [Sub: 4,000] |
| Through Spindle Hole Diameter |
ø2.95 in [ø2.44 in] |
| Max. Bar size |
ø2.56 in [ø2.01 in] |
| Spindle Motor (30min/cont) |
25/20 [10/7.5] HP |

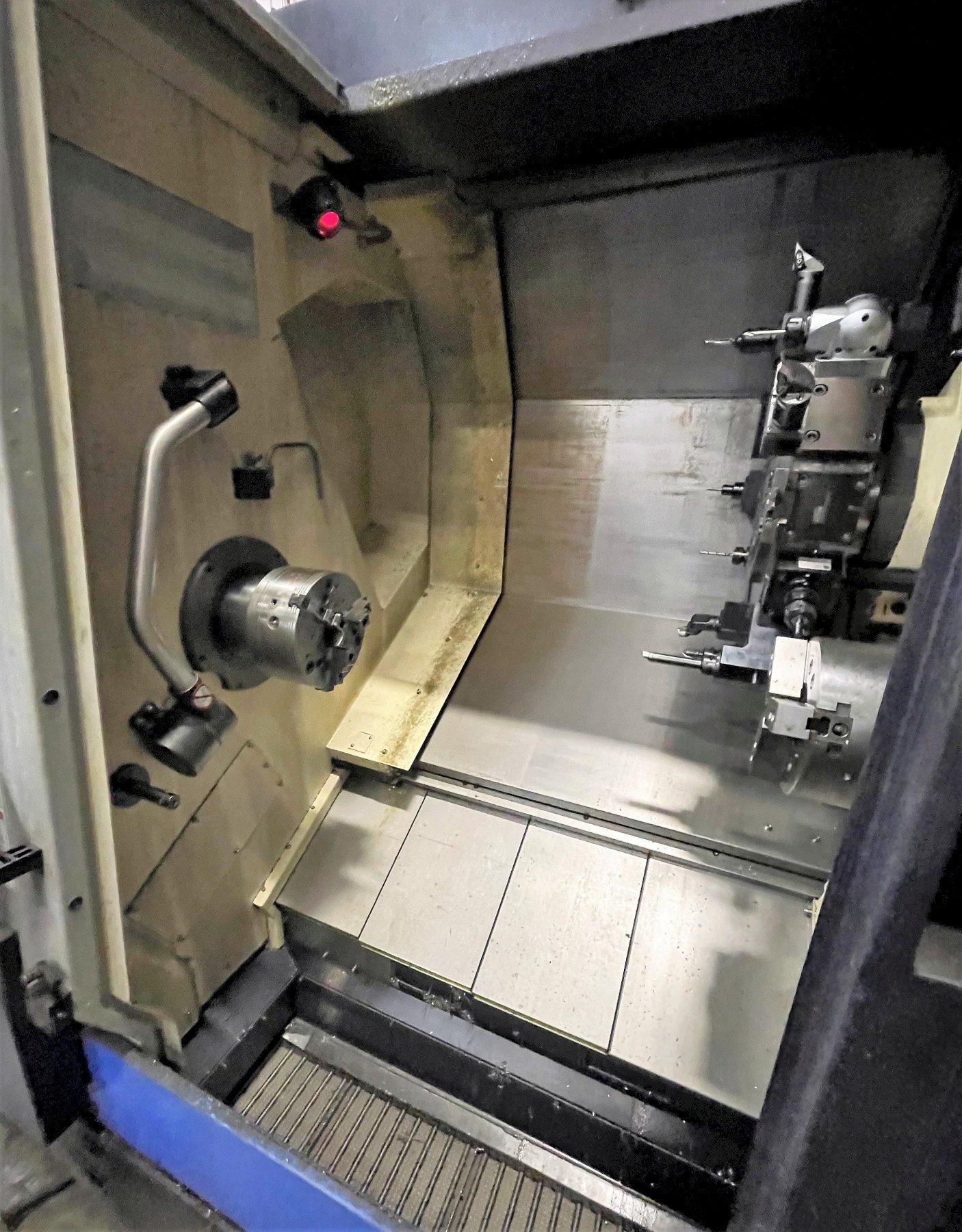

| Turret: Number of tool station |
12 ea. |
| Axis: Rapid Speed (X/ Z / Y / B) |
787 / 945 / 394 / 630 ipm |
| Axis: Max. Stroke (X / Z / Y / B) |
280 (YSCM: 260) / 790 / 120 / 726 in |
| Axis: Feed Motor (X / Z / Y / B) |
5.5 / 5.5 / 5.5 / 2.2 HP |
| Tailstock Travel |
25.59 in |
| Tailstock: Quill Diameter |
ø3.94 in |
| Tailstock: Taper Hole |
# 5 MT |
| Tailstock: Quill Stroke |
4.72 in |
| Turn mill: Rotary tool Spindle Motor |
2.2 HP |
| Turn mill: Max. Rotary tool Speed |
5,000 rpm |
| Spindle power |
20 HP |
| Spindle speed |
5000 rpm |
| Spindle torque |
164.9 / 133.8 Nm |
| Rapid speed |
20 / 10 / 24 m/min |
| Tool shank |
BMT-65 / BH |
| Max. cutting length |
26.5 in |

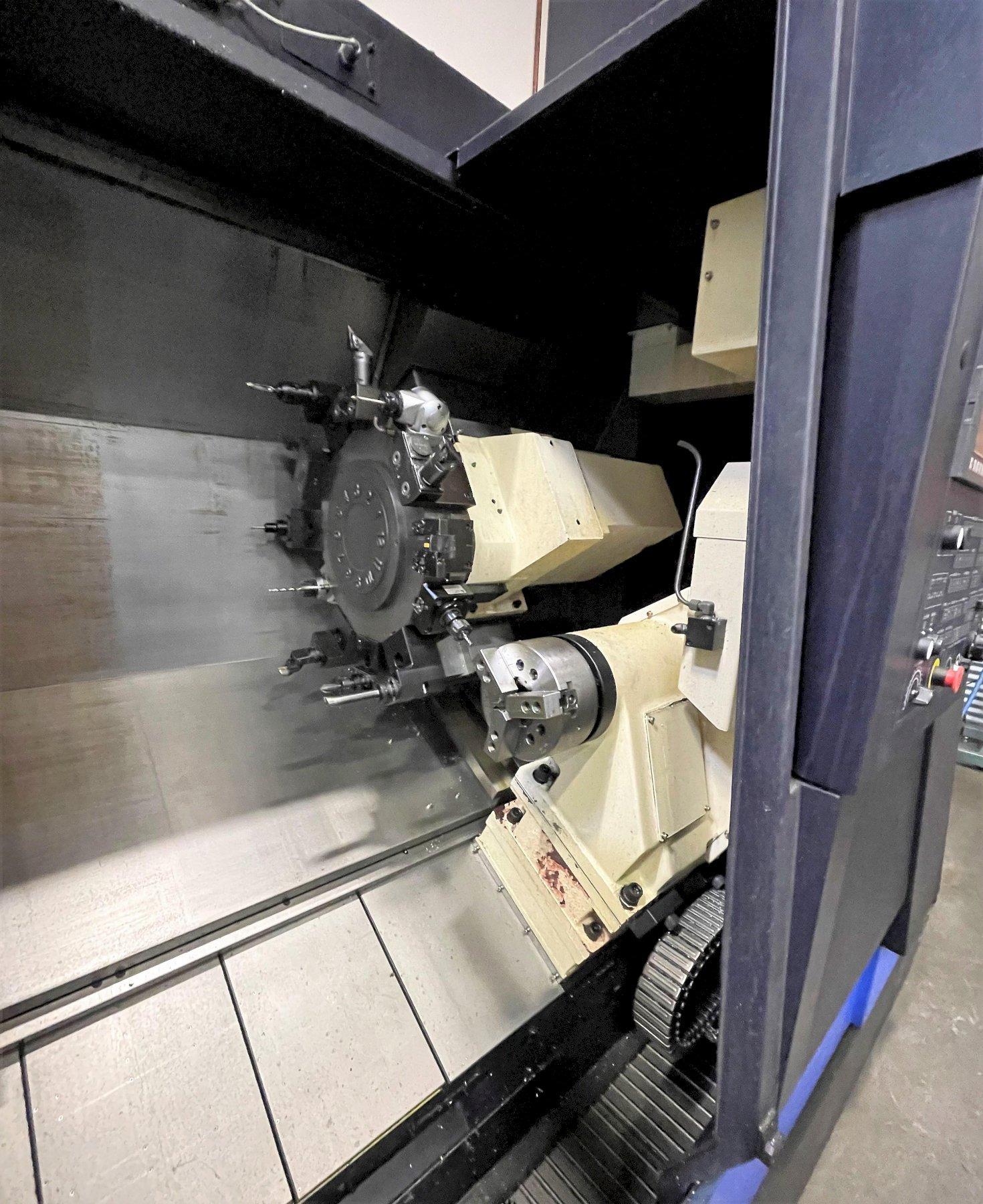

| Sub spindle speed |
4000 rpm |
| Sub spindle motor power |
10 HP |
| Spindle center |
Height: 45.67 in |
| Coolant Tank Capacity |
50.19 gal. |
| Power Source: Electrical Power Supply |
YMC: 50, YSMC: 55 |
| Conveyor Dimensions |
(LxWxH) 162 in x 19 in x 80 in |
| Machine Dimensions |
(LxWxH) 138 in x 81 in x 87 in |
| Machine weight |
(14,110 lbs.) |
Equipped With

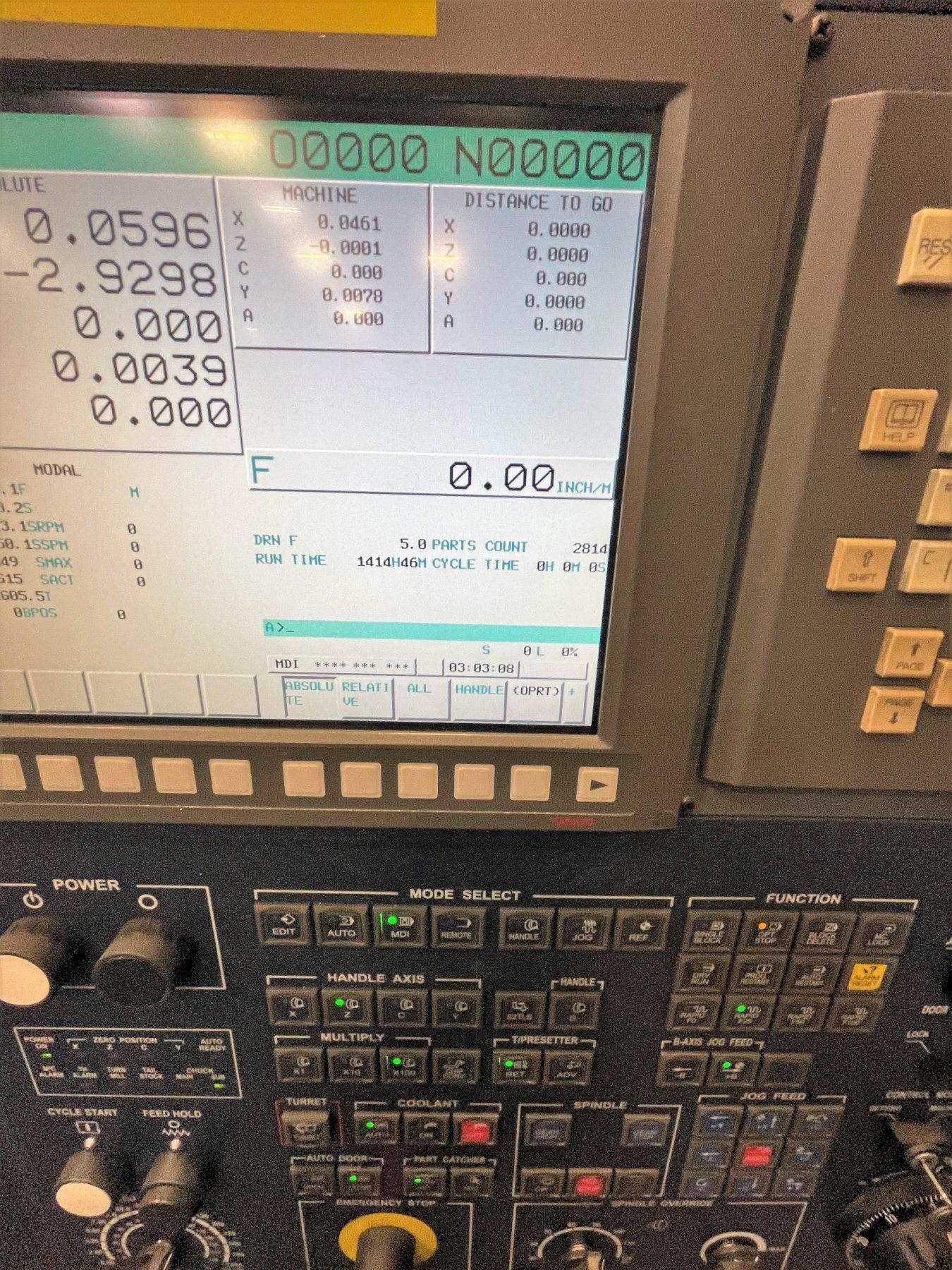

Sub Spindle, Y Axis, Tool Pre-setter, 1000 PSI High Pressure Coolant, Probing, 2.5" Bar Capacity, 8" Chuck, Chip Conveyor, Run Time: 1414
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
