Listing Details

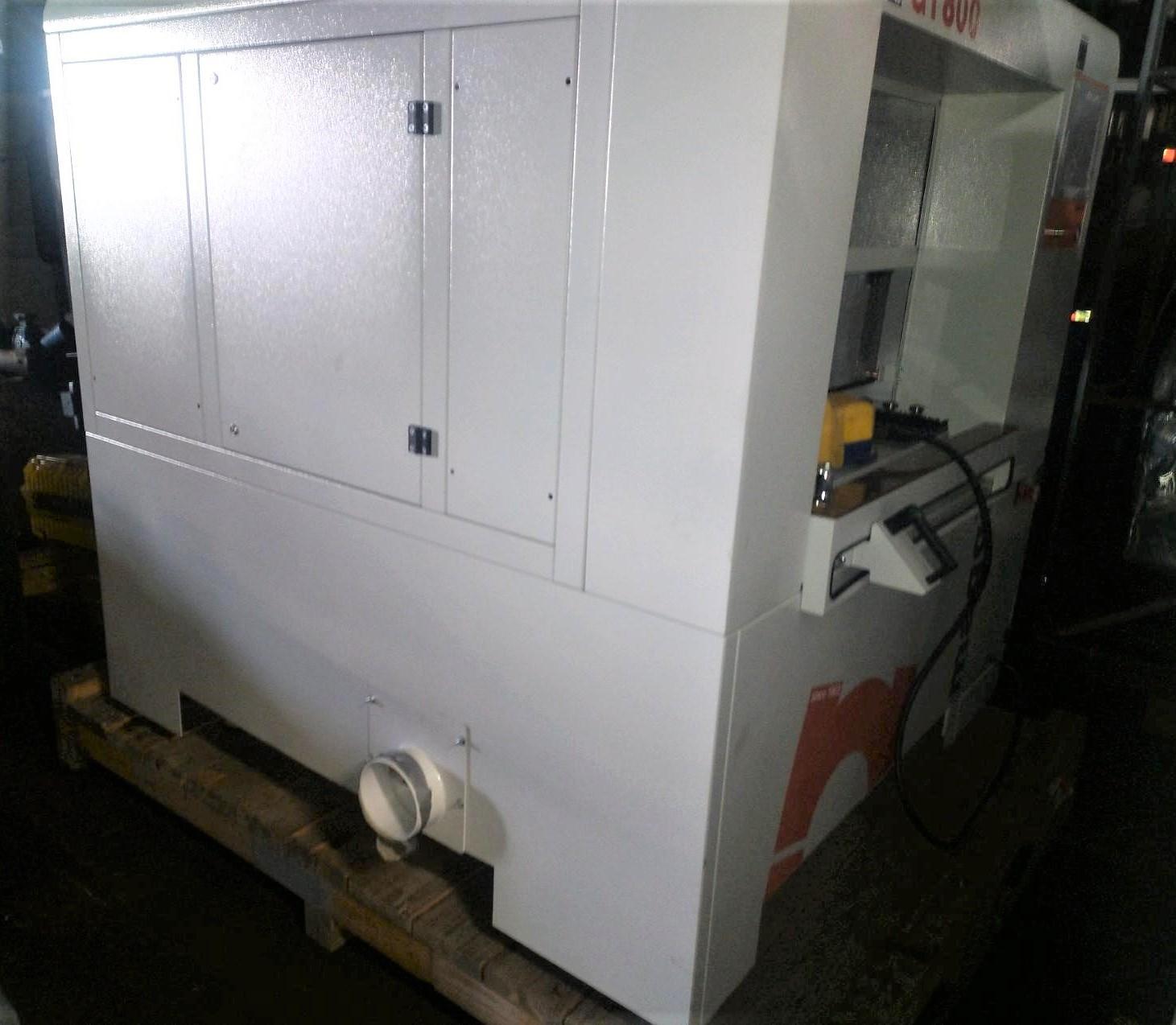

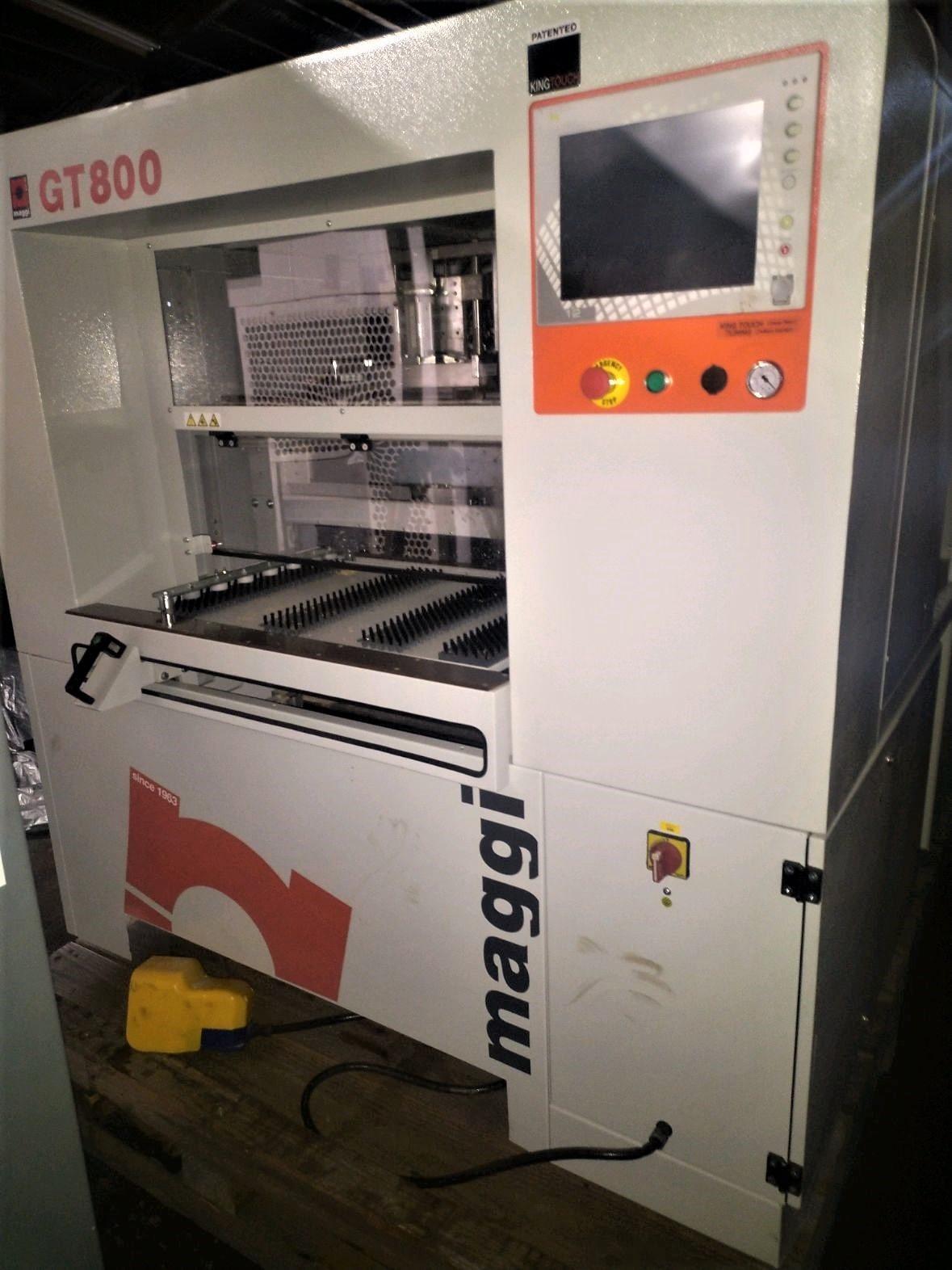

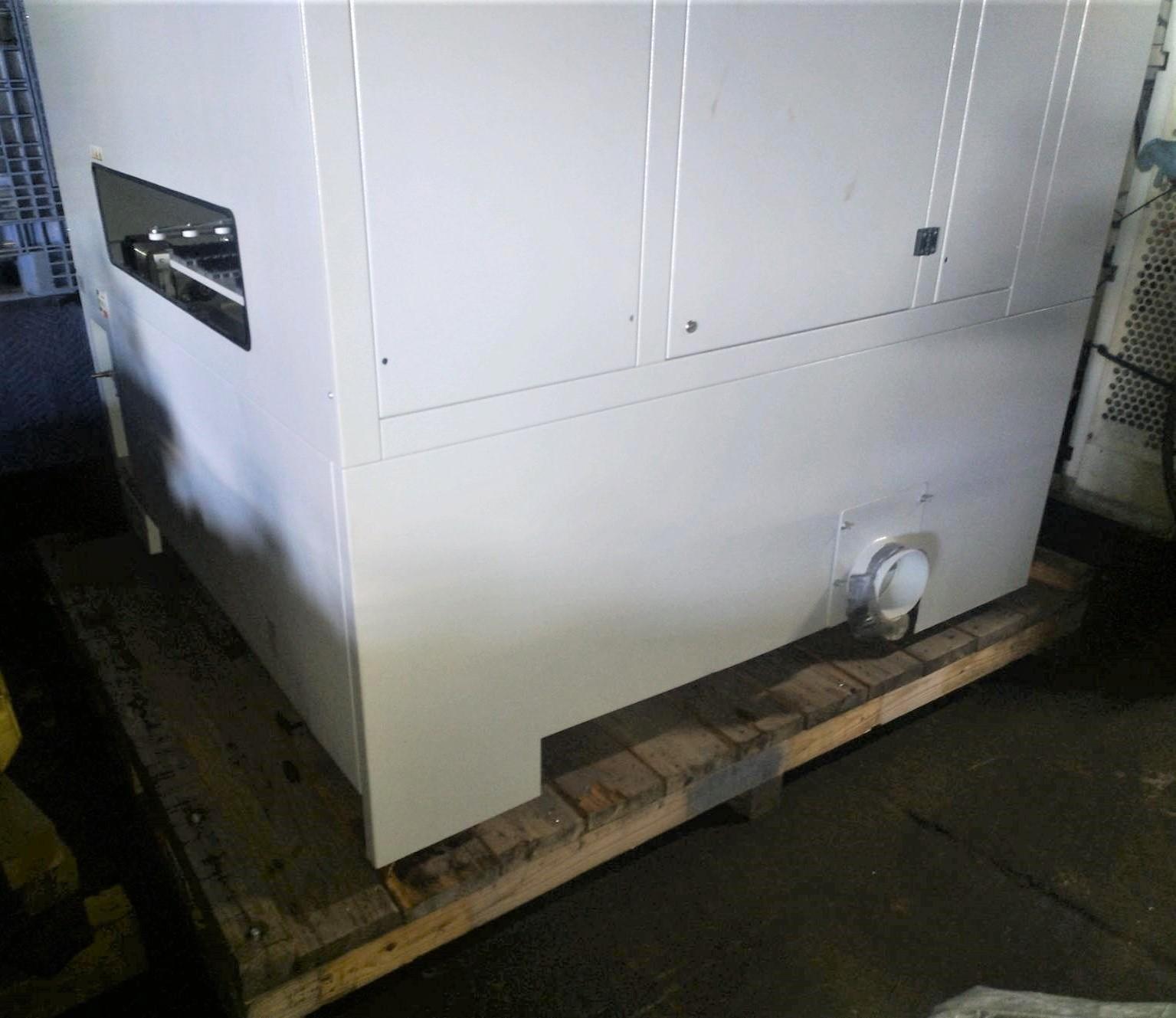

Maggi GT800 CNC Boring and Grooving Center Yr.2022 12" Screen, Suitable for drilling on face and sides of panels, including holes for dowels, hinges, KD Fittings and shelf holes


Not specified


Stock #


Type of CNC Control Touch Screen 12" with USB Port
Maximum Panel Dimension Max. panel dims: Y - 800 mm (31.5"), X - Unlimited, Z - 50 mm (2")
Minimum Panel Dimensions Min. panel dims: Y - 100 mm (3.93"), X - 250 mm (9.84"), Z - 10 mm

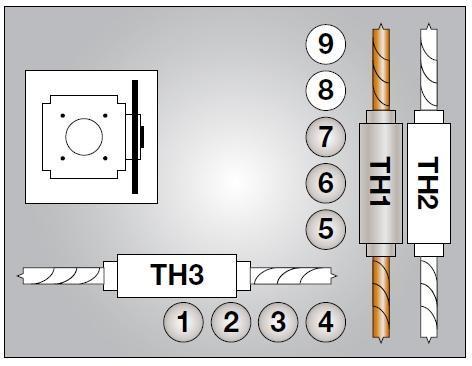

Vertical Spindles (7) Vertical spindles (4 in X axis and 4 in Y axis)
Horizontal Spindles (1) 1 + 1 Horizontal Spindles in X axis
Spindle Speeds Spindles rotations speed: 3,400 RPM
Axis Speed Axis speed 25 meters/min | 82 feet/min
Boring Capacity Boring Capacity 0 to 800 mm (31.5") with any spindle
Net weight 2,150 Lbs.
Power Supply Voltage 220 Volt 3- Phase
Approx. Dimensions 72" x 68" x 68" (LxWxH)

Equipped With

Ability to execute all drilling operations in a single working cycle, CNC programming via 12" touchscreen, Automatic panel cleaning with brushes. ** BANK OWNED OPEN TO ALL OFFERS**

Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications must be independently verified, and locations are subject to change without notice.
 All items are subject to availability and prior sale.
