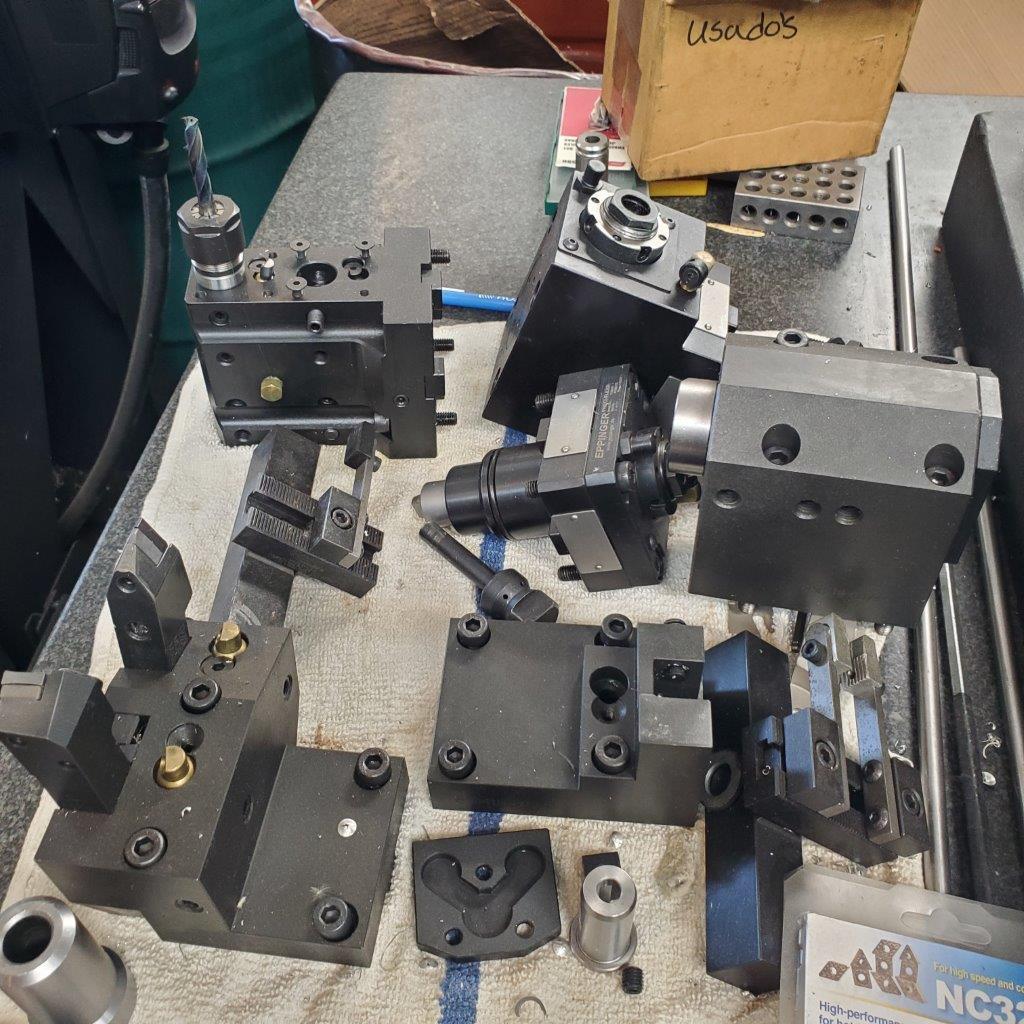

Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
  • Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
  • Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
  • Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
  • Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501
  • Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501

Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, 4 Live Tooling, Static Holders, Royal Collet Chuck’s, 8” 3 jaws and 5”. 3 Jaw Sub, Collets, Tool Setter, Y-Axis, and Chip Conveyor. S/N: ML0406-000501

Manufacturer
DOOSAN LYNX

Type
Lathes, CNC (3-Axis or More)

Condition
Not specified

Model
Lynx 2100LSYB

Stock #
6662

Year
2020

Request a Quote
CNC Control yes

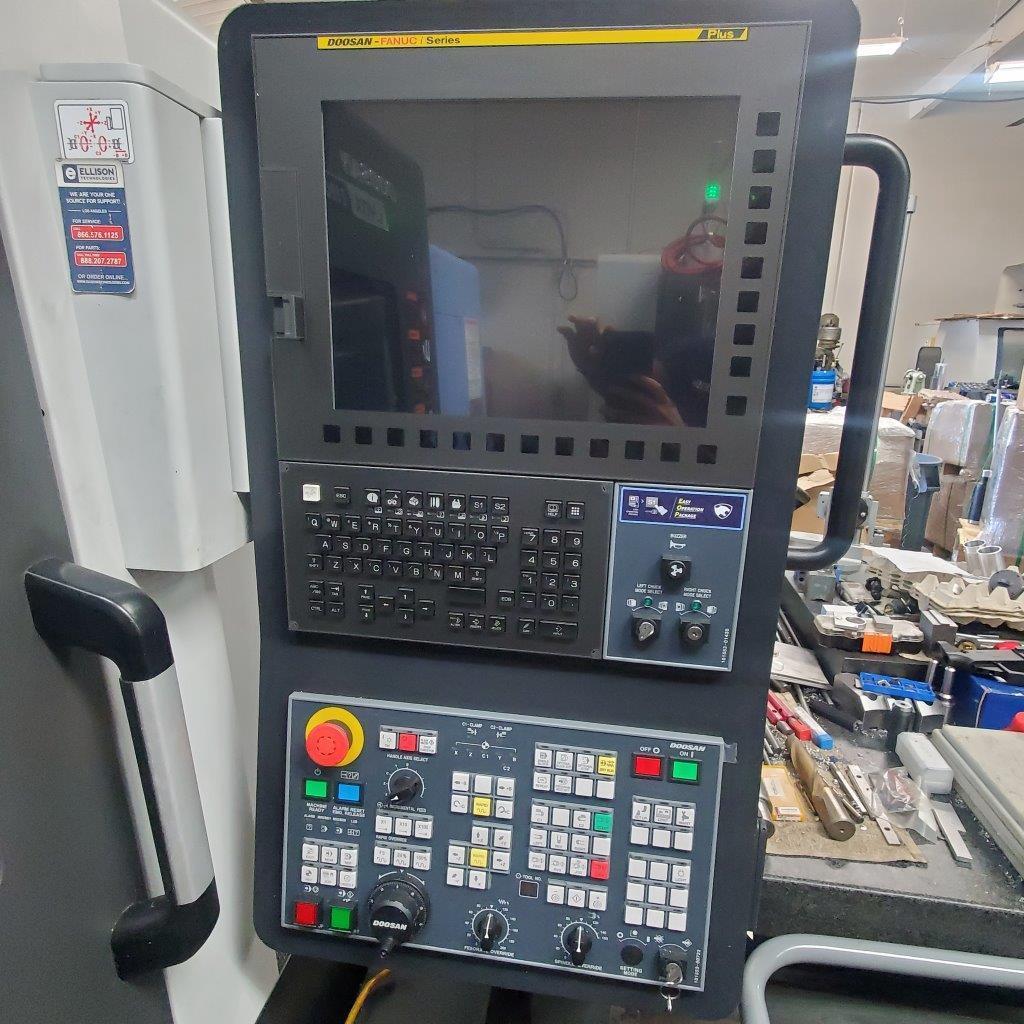

Type of CNC Control Fanuc i Series
# Axis 4
Swing 8 inches
Turning Diameter 11.8 inches
X Axis Travel 8.1 inches
Z Axis Travel 22 inches
B-Axis Travel 22 inches
Y Axis (Yes / No) yes
Y-Axis Travel 4.1" +/- 2.1"
X-Axis Traverse Rate 1181 IPM
Y-Axis Rapid Traverse Rate 394 IPM
Spindle Speed (RPM) 4500
Main Motor 20-HP
Sub Spindle Chuck Size 5 inches
Sub Spindle Speed (RPM) 6000
Sub Spindle Motor 7.5-HP
Turret Capacity 12
Tailstock (Yes/No) no
Dimensions 114" x 68" x 76"
Weight 9259 pounds

Equipped With

Doosan Lynx 2100LSYB Multi-Axis CNC Lathe 2020 with: Fanuc i Series CNC Control, Live Tooling, Royal Collet Chucks, Collets, Tool Setter, Y-Axis, and Chip Conveyor.


Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
