Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
  • Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
  • Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
  • Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
  • Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
  • Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
  • Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant
  • Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant

Matsuura MX-520 5 Axis VMC FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, Cooljet High Pressure Coolant

Manufacturer
MATSUURA

Type
Machining Centers, Vertical, (5-Axis or More)

Condition
Not specified

Model
MX-520

Stock #
6735

Year
2015

Request a Quote

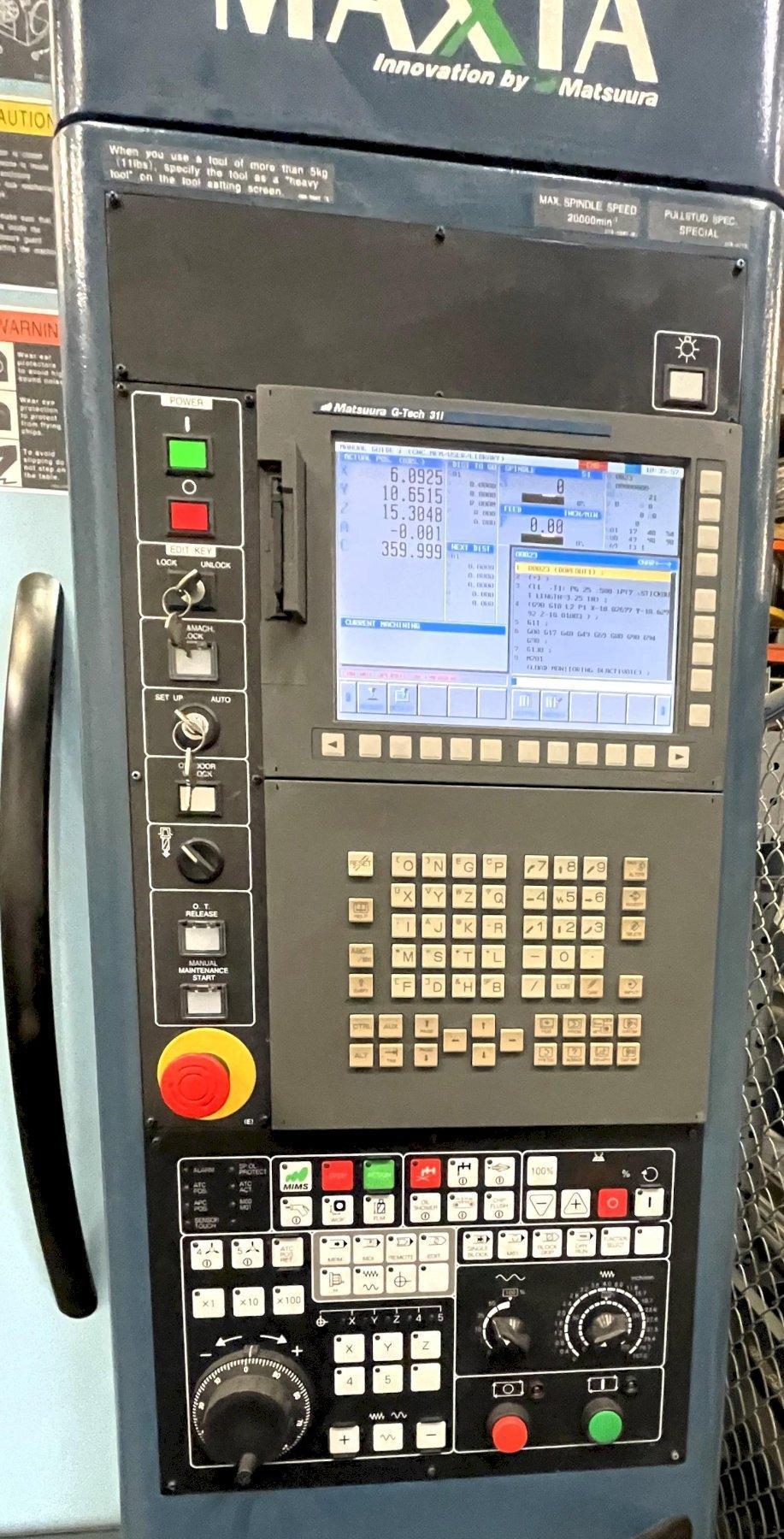

Type of CNC Control FANUC G-Tech 31I
CNC Control yes
# Axis 5
X 24.80 inches
Y 22.04 inches
Z 20.07 inches
A-Axis Trunnion Tilt Range -125~+10
C-Axis Table Rotation Positioning Degrees 360
Table Working Surface 11.81 inches
Max Table Load 440 pounds
Max. Work Size 20.47" x 13.77"
Rapid Traverse X/Y/Z (IPM) 1574.80
RPM 20000
Taper BT40
# ATC 60
Weight 19510 pounds
Dimensions (LxWxH) 148.45 X 90" X 124"

Equipped With

FANUC G-TECH 31I Control, Tool Length Measurement, Lift Up Chip Conveyor, Through Spindle Coolant, High Pressure Coolant,
