| Spindle Size | 4.3 inches |
| Spindle Taper | ISO#50 |
| X-Horizontal Travel of Column | 78.7 inches |
| Y-Vertical Travel of Head | 70.87 inches |
| Z-Spindle Travel | 66.93 inches |
| Stroke (w) | 19.69 inches |
| Rotary Table Width | 63 inches |
| Rotary Table Length | 56.5 inches |
| Power | 35 horsepower |
| RPM | 2500 |
| Coolant Thru Spindle | yes |
| CNC Control | yes |

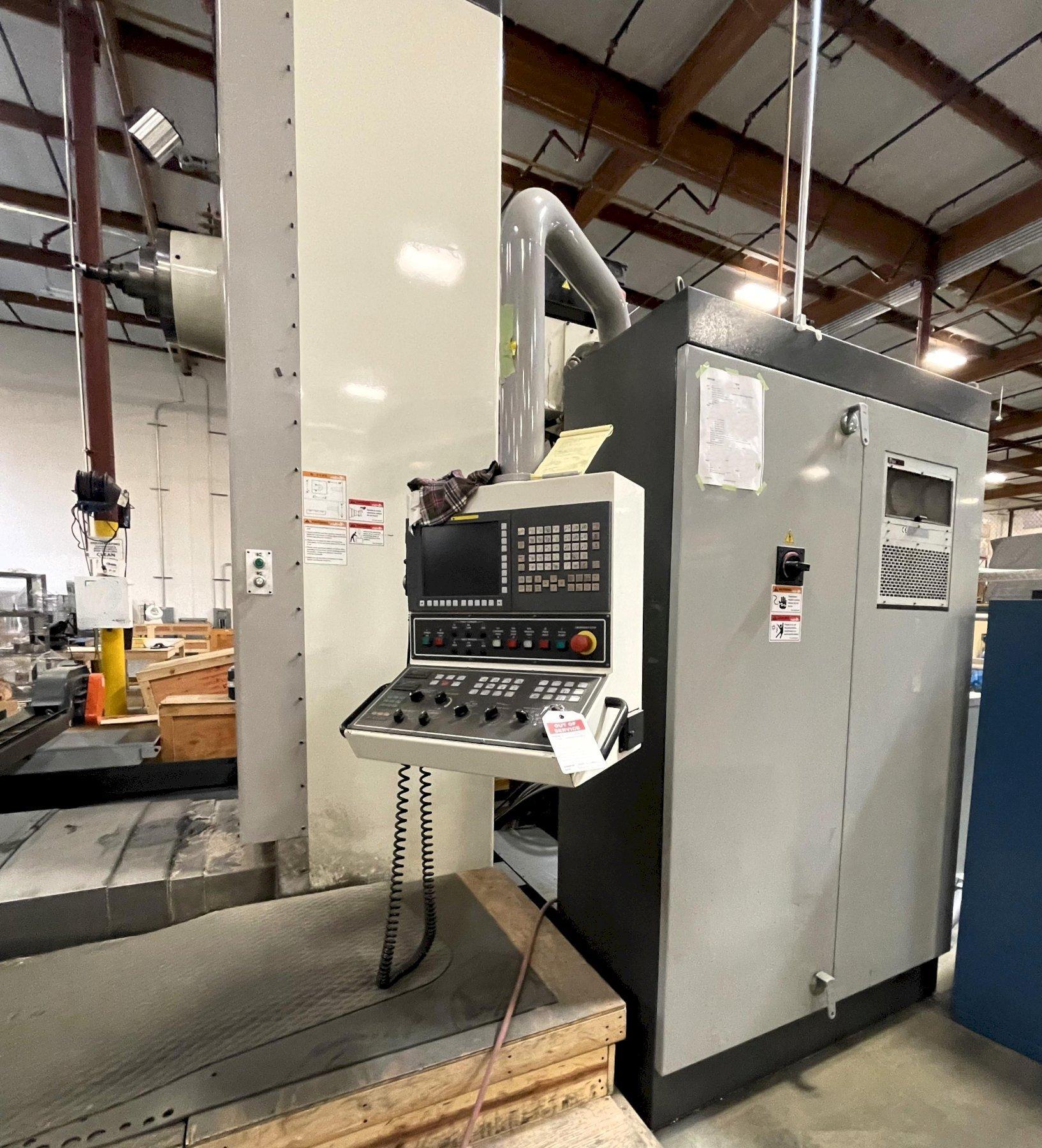

| Type of CNC Control | Fanuc 21iMB |
| Table Indexing (B-Axis) | Full B Axis Rotary Table |
| Max Weight on Table (Evenly Distributed) | 14000 pounds |
| Equipped with | Equipped With Rigid Tapping, Helical Interpolation, Chip Conveyor, Built in Rotary Table, Very Good Condition |

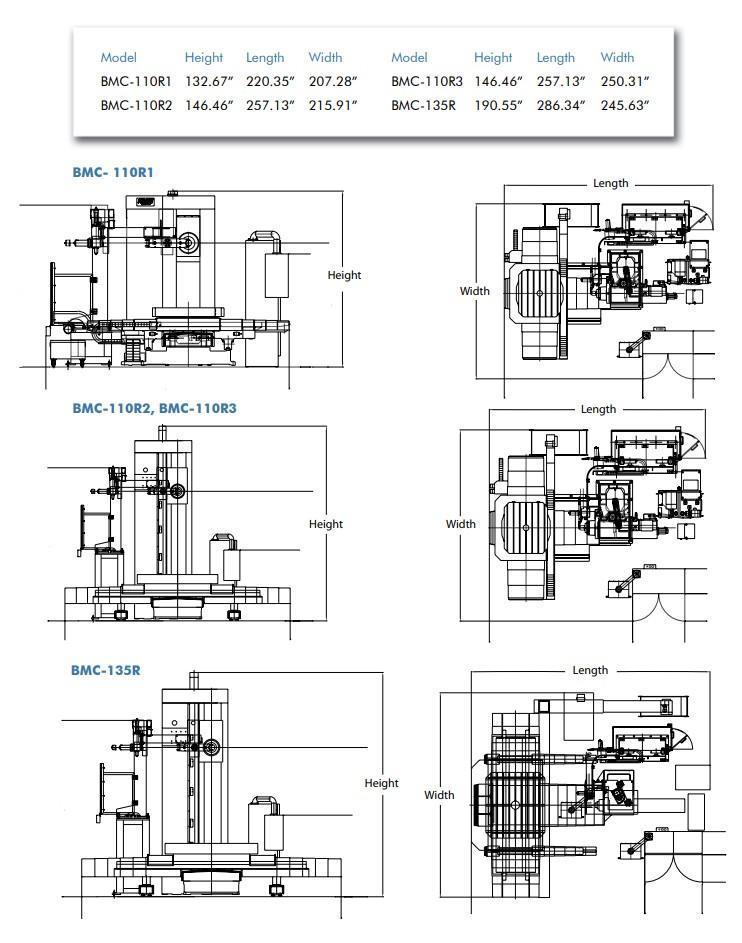

| Dimensions (LxWxH) | 257.13" x 215.91" x 146" |
| Weight | 42000 pounds |
