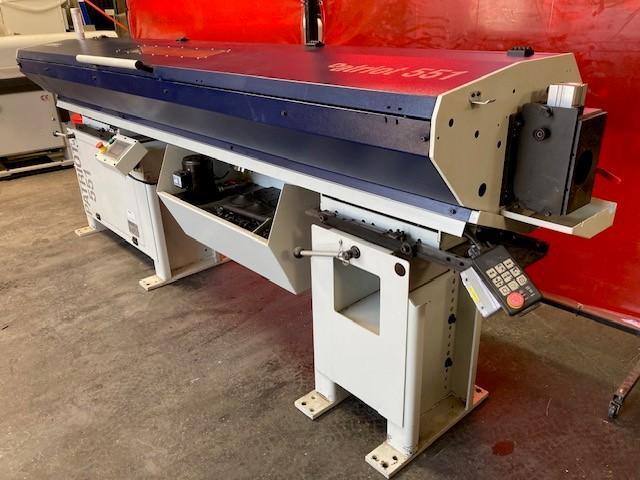

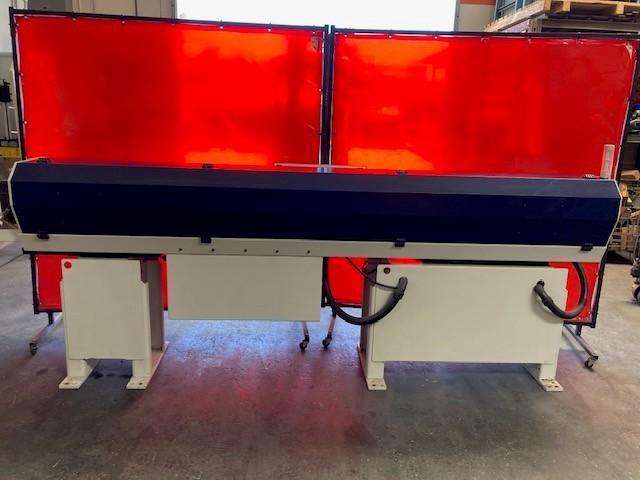

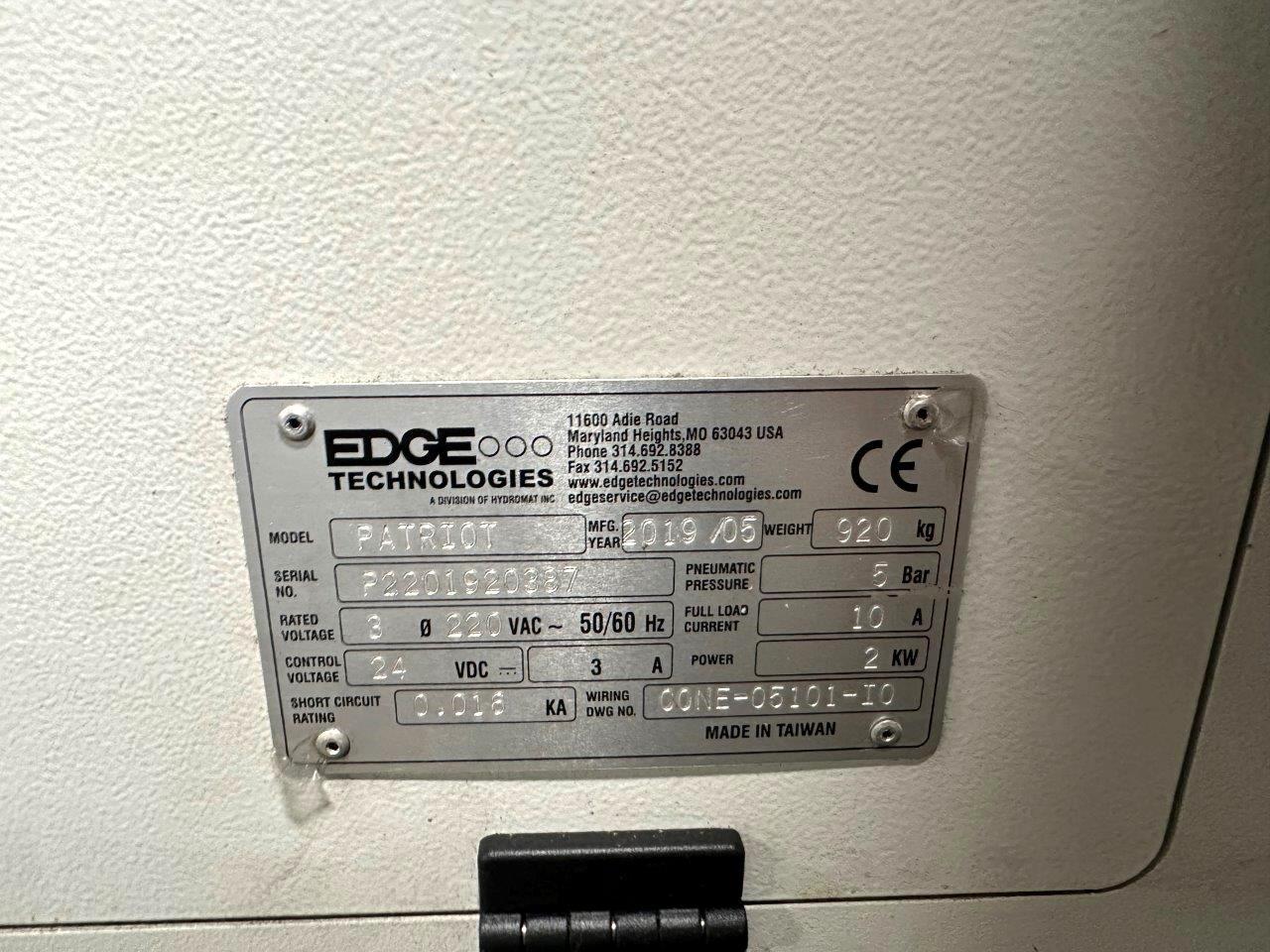

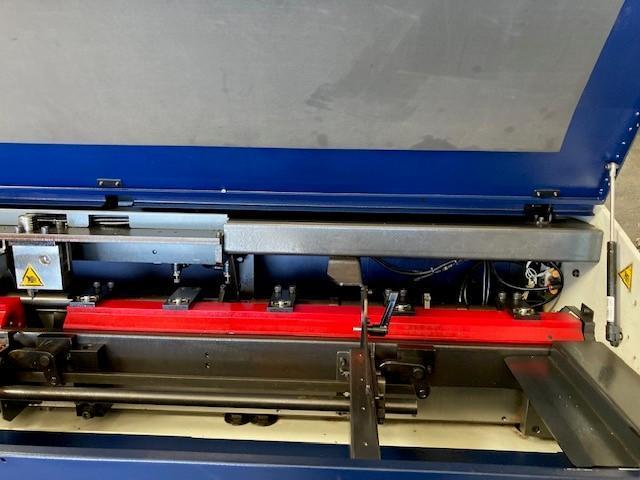

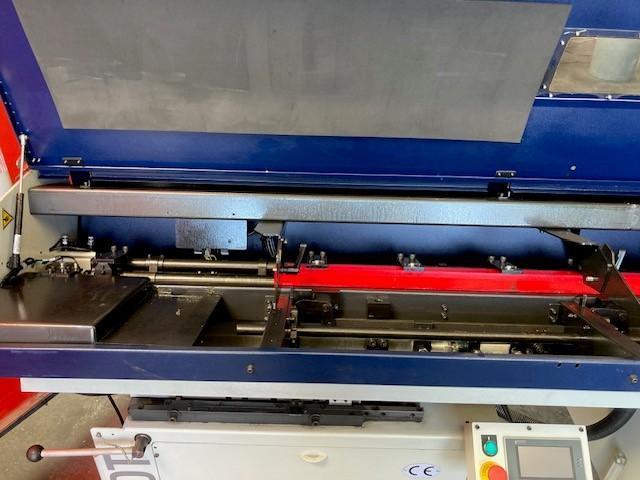

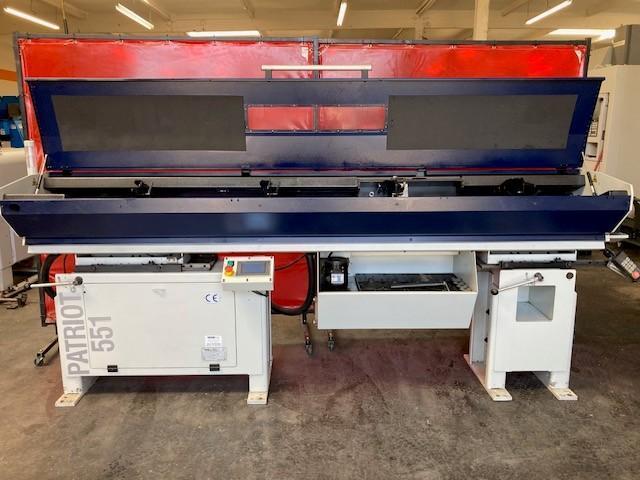

Manufacturer
EDGE TECHNOLOGIES
Type
Bar Feeds
Condition
Not specified
Model
Patriot 551-37
Stock #
6859
Year
2019
| Bar Capacity | 0.196" to 2.000" |
| Maximum Bar Length | 8 feet |
| Minimum Bar Length | 39.4 inches |
| Maximum Remnant Length | 16 inches |
| Magazine Rack Capacity | 12 inches |
| Bar Loading Cycle | 30 seconds for 12' bar |
| Material Straightness Specifications | .007"TIR/ft of material (V Blocks, 3 points equidistant) |
| Feed Force (pusher torque) | max 450N, adjustable |
| Foward Feed Rate | 750 inches/min max, adjustable |
| Return Feed Rate | 1000 inches/min max, adjustable |
| Operating Voltage | 230V/60 Hz - 3 phase |
| Power Consumption | 1.5kW |
| Control Voltage | 24V DC |
| Oil Capacity | 15 gallons |
| Oil Viscosity | ISO 150cST |
| Compressed Air Supply | 90 psi |
| Compressed Air Consumption | approx. 8 liters/loading cycle |
| Dimensions | 128" x 28" x 49" |
| Weight | 2100 pounds |
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
