Manufacturer
EDGE TECHNOLOGIES
Type
Bar Feeds
Condition
Not specified
Model
Turbo 5-65
Stock #
6913
Year
2019
| Bar diameter capacity-no bar preparation | .196” to 2.440” |
| Bar diameter capacity-with bar preparation: | .196” to 2.637” |
| Maximum bar length: | 12 feet 5 inches |
| Minimum bar length: | 39.400” |
| Maximum remnant length: | 20.800” |
| Magazine rack capacity: | 11 inches |
| Magazine rack angle: | adjustable 6–20° |
| Bar loading cycle time: | 35 seconds for 12-foot bar |
| Material straightness specification: | .007” TIR/foot of material (V blocks, 3 points equidistant) |
| Feed force (pusher torque): | max 750 N, adjustable |
| Forward feed rate: | 2360 inches/minute max, adjustable |
| In-feed rate: | 0-1650 inches/minute max, adjustable |
| Power consumption: | 2 kVA |
| Operating voltage: | 230V/60Hz 3-phase |
| Control voltage: | 24V DC |
| Oil capacity: | 22 gallons |
| Oil viscosity: | ISO 150 cST |
| Bar Length | 39.40 inches |
| Dimensions | 16.4" Long x 2.50" Wide x 4.5" High |
| Compressed air supply: | 90 psi |
| Machine weight (without oil): | 6400 pounds |

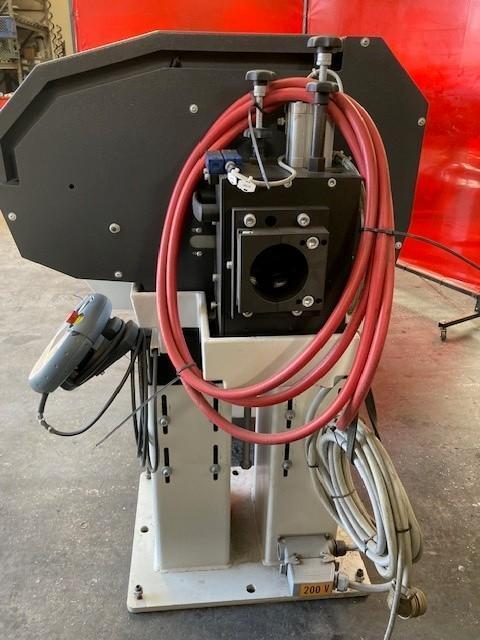

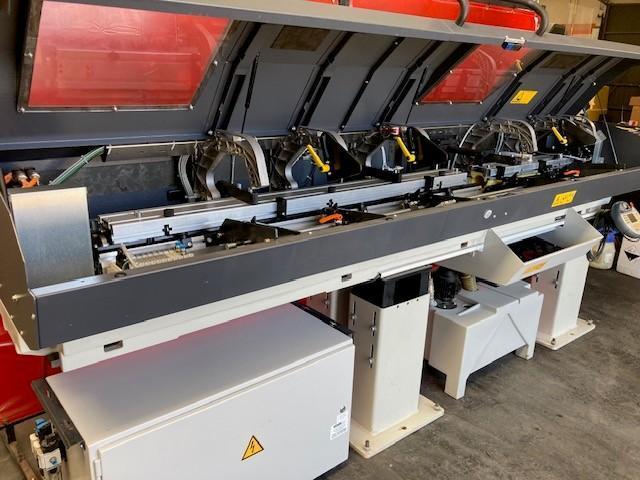

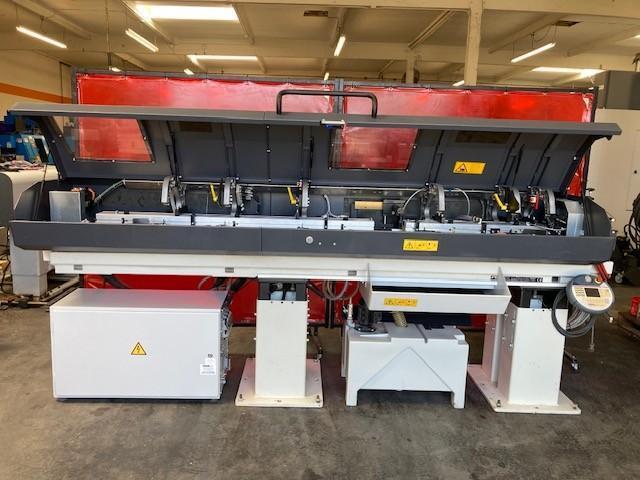

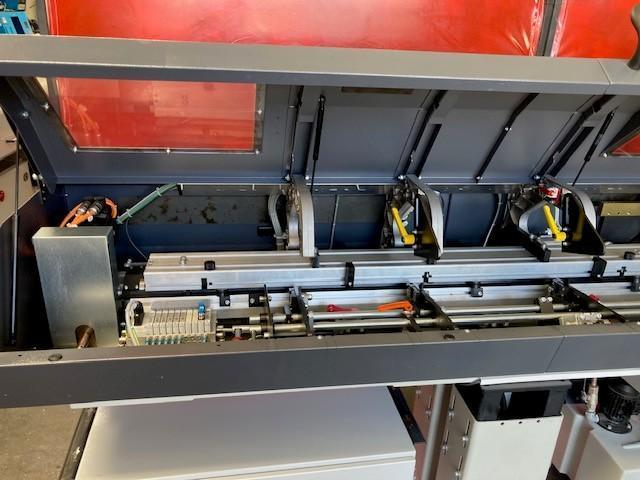

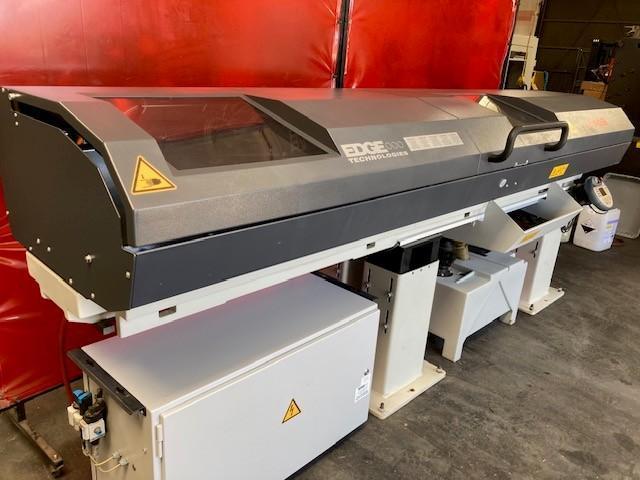

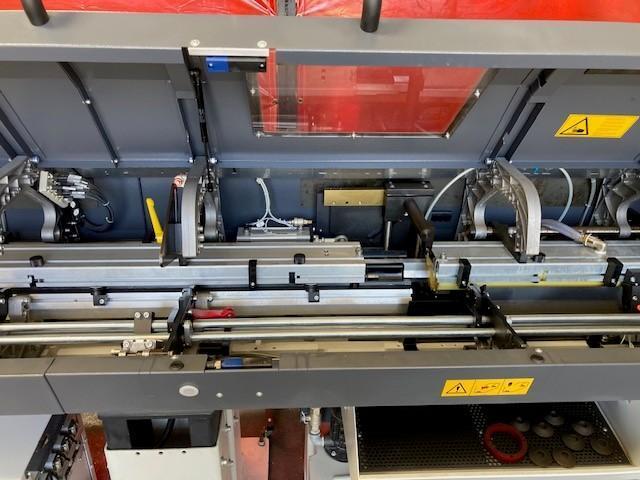

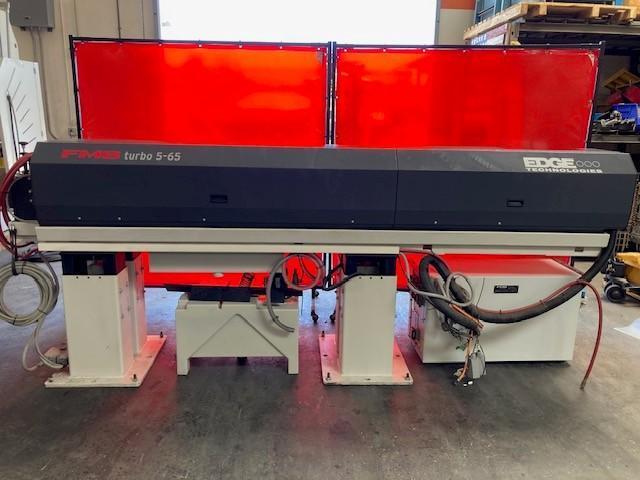

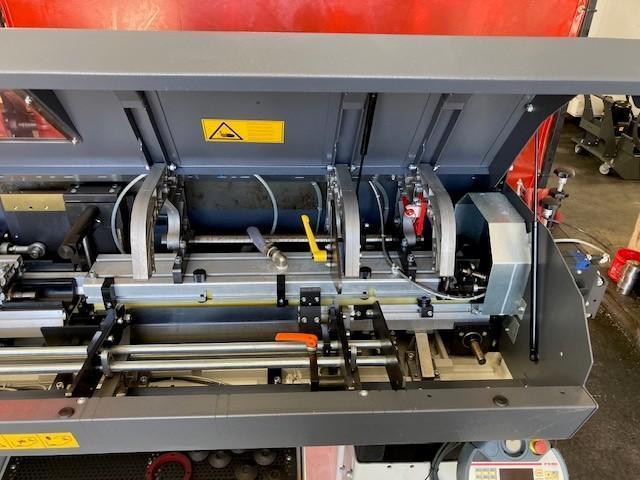

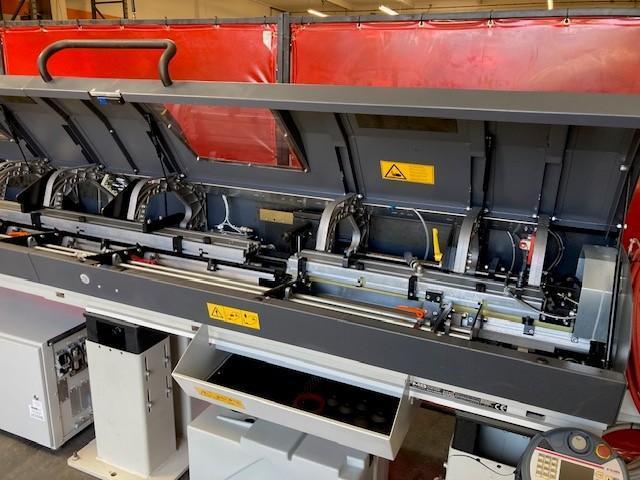

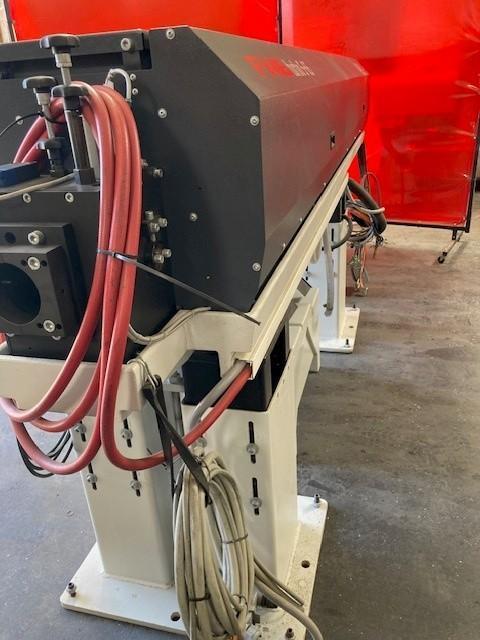

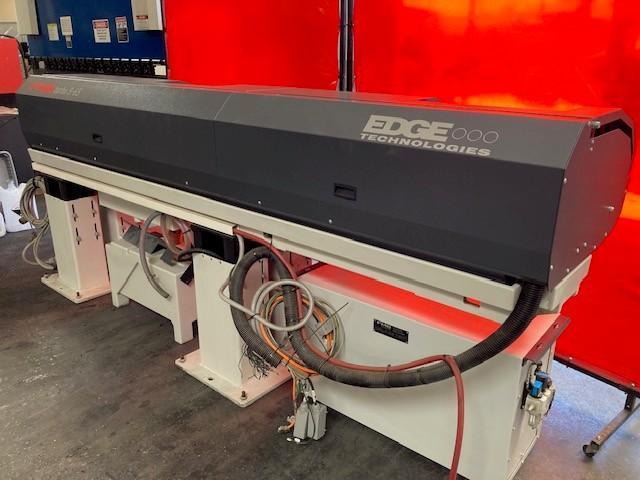

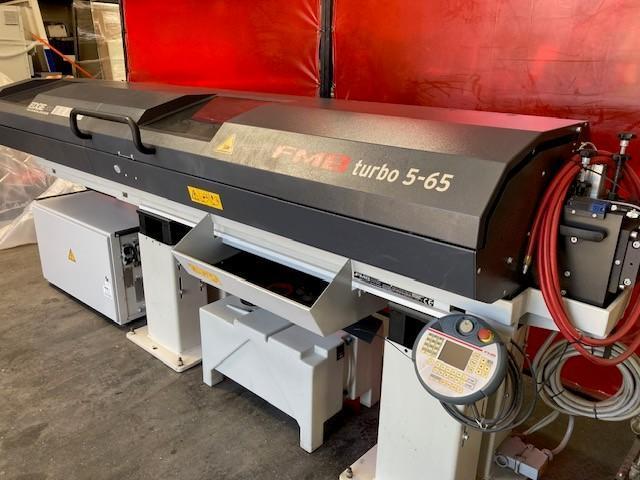

Edge FMG Turbo 5-65 Barfeeder 2019
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
