X-Axis Travel | 26 inches |
Y-Axis Travel | 16 inches |
Z-Axis Travel | 20 inches |

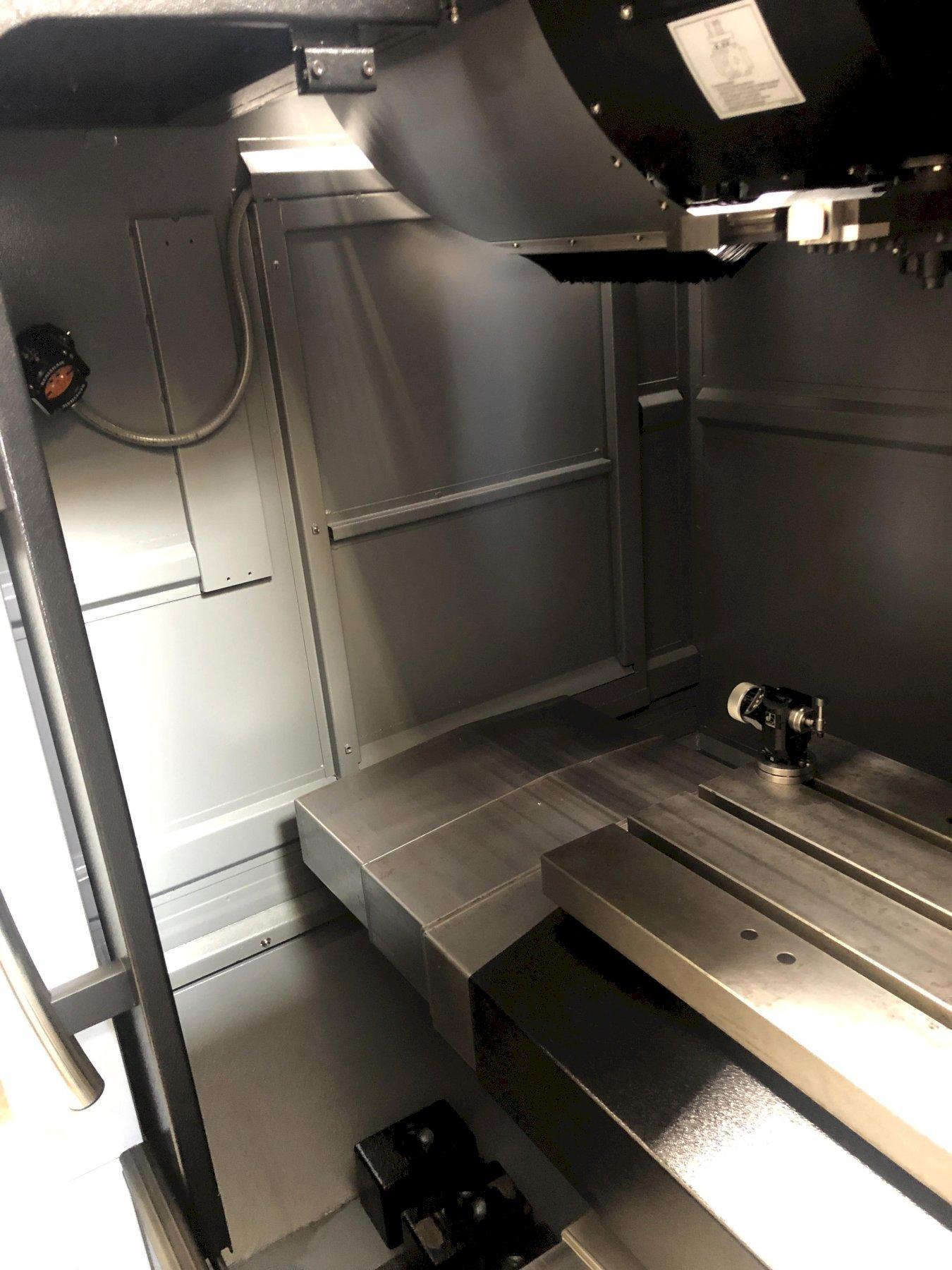

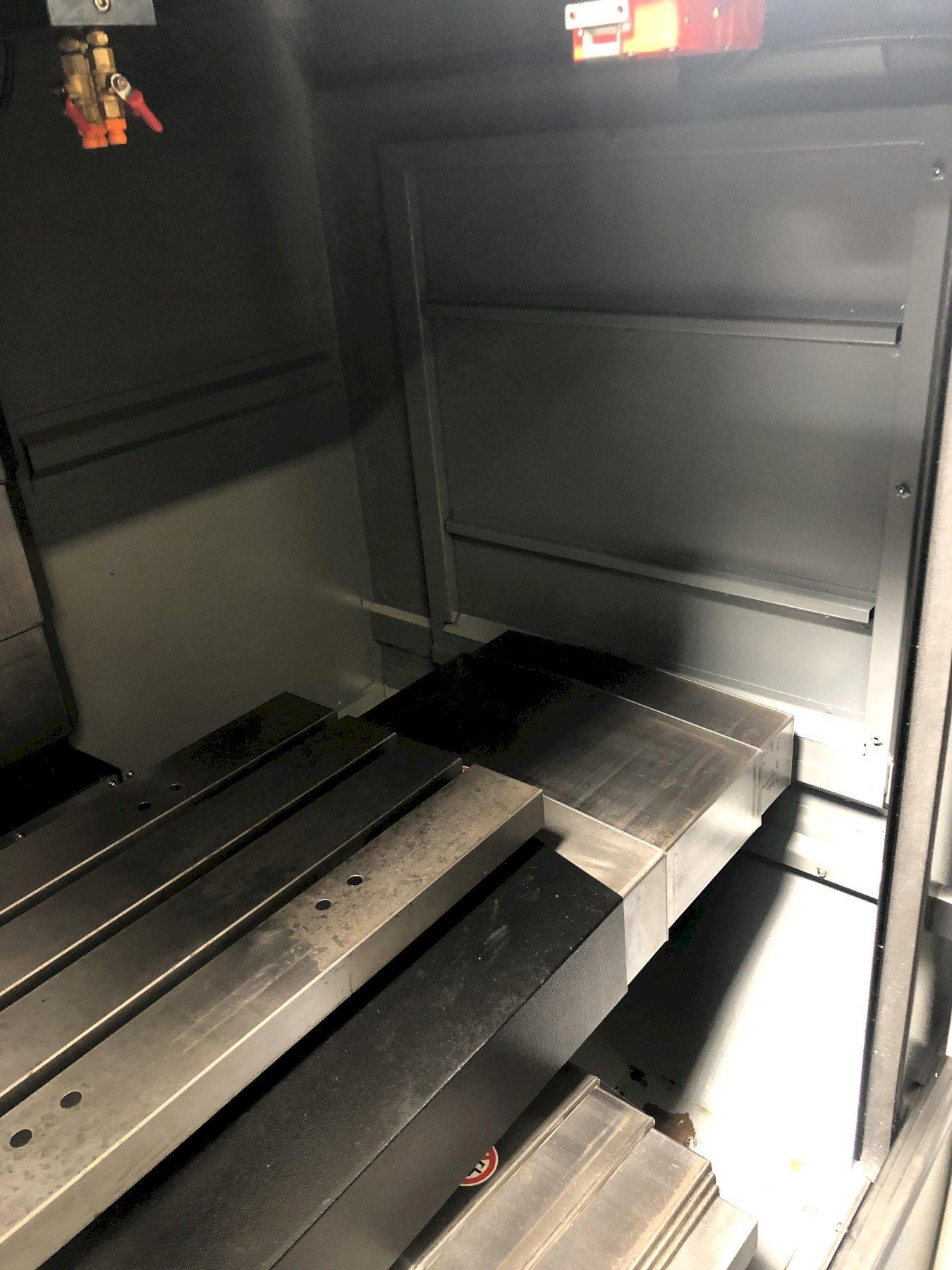

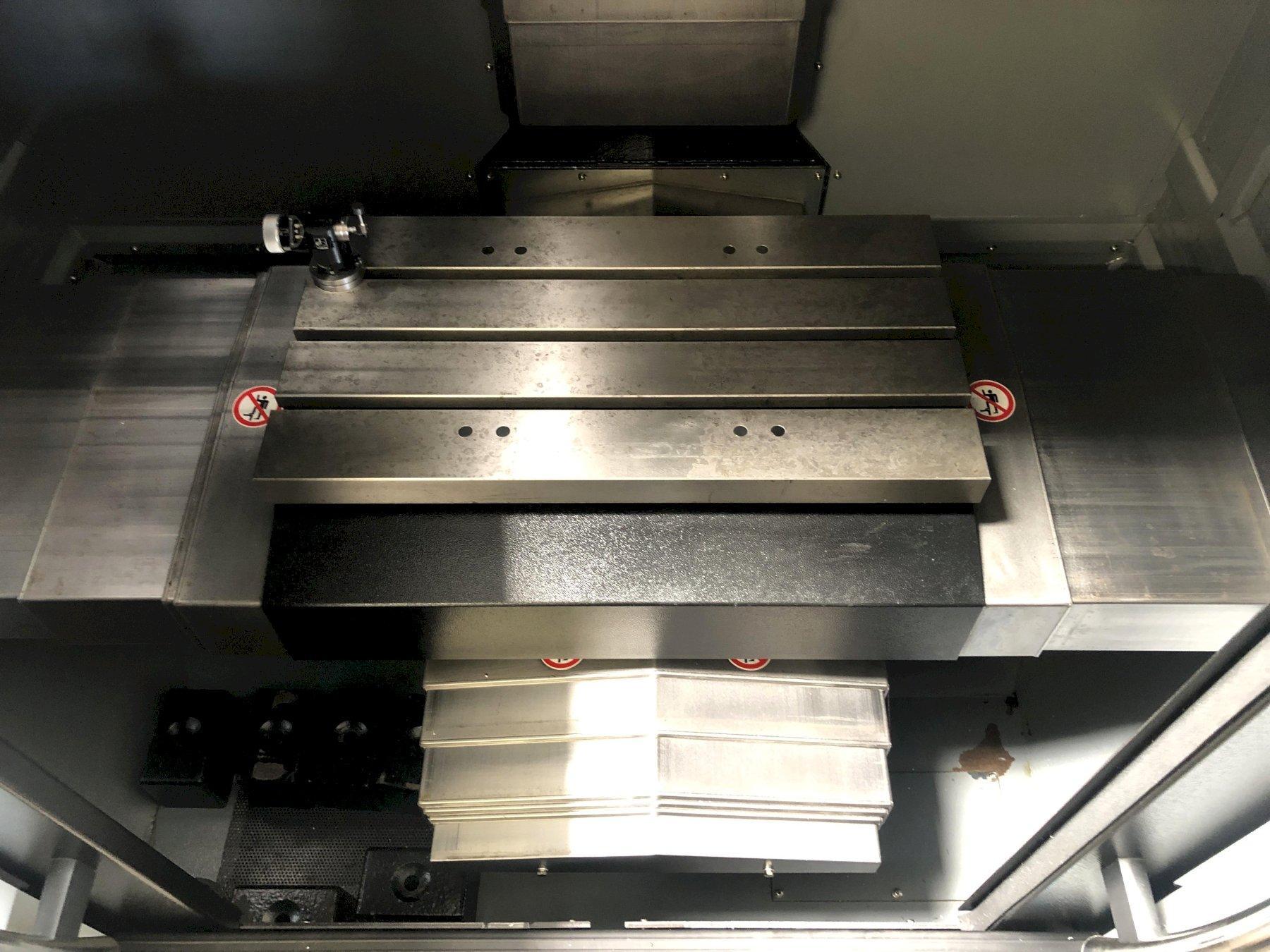

Table working surface W x D | 30 in x 15.98 in |
Spindle Nose – Table | 4.01- 24.01 inches |
T-Slots (DIN 650) | 3 x 18 H8 x 100 |
Tableload max. / Rotaryload (uniform distribution) | 3306.69 pounds |
Spindle Taper (DIN 69871 A) | CAT-40 / BIG-PLUS |
Spindle Speed max. (rpm) | 12.000 rpm |
Spindle Power | 15 hp |
Spindle Torque max. | 54.58 ft-lbs. |
Feedrates: Rapid traverse X-Axis / Y-Axis / Z-Axis | 91.86 / 91.86 / 91.86 (ft/min) |
Rapid traverse A-Axis / C-Axis | 25 / 25 rpm |

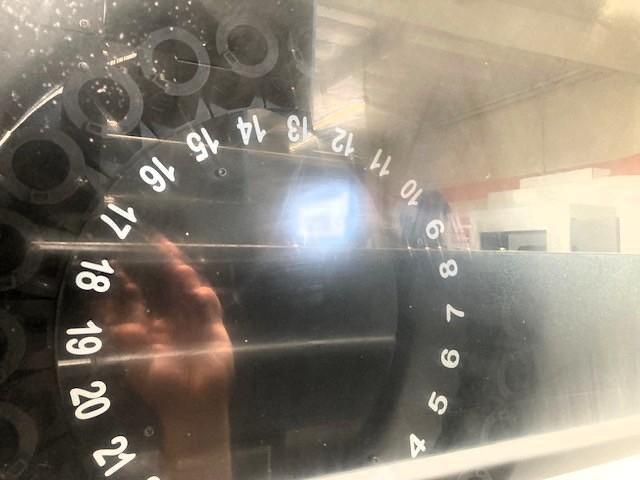

Number of stations | 24 |
Weight | 6285 pounds |
Floor Space Required (doors open, incl. control and chip conveyor) | 126.30 in x 115.35 x 100.95 inches |
Weight | 6285 pounds |
