| Control | SIEMENS 840D control |
| Swing Diameter | 23.9 in (608mm) |
| Turning Diameter (Max) | 5.9 in (150mm) |
| Turning Length (Max) | 9.8 in (250mm) |
| X (travel) | 23.6 in (600mm) |
| Z (travel) | 13.8 in (350mm) |
| Y1 Turret (travel) | +/- 1.9 in (50mm) |
| Y2 Milling Spindle (travel) | +/- 1.9 in (50mm) |
| B Rotary | 180 degrees |
| Feedrates: Rapid traverse X-Axis / Y-Axis / Z-Axis | 944.8 ipm (24m/min) / 590.6 ipm (15m/min) / 944.8ipm (24m/min) |
| Spindle Bore Capacity | 52mm (2.0 in) |
| Spindle Speed | 5,200 rpm |
| Spindle Performance (S6 40%) | 22.1 hp (16.5kW) |
| Spindle Torque (S6 40%) | 81.1 ft-lb (110Nm) |
| Spindle Nose | DIN 55026-A6 |
| B-Axis Milling Spindle Speed (max) | 12,000 rpm |
| B-Axis Milling Spindle Performance (S6 40%) | 12 hp (9Kw) |
| B-Axis Milling Spindle Torque (S6 40%) | 15.4 ft - lbs (21Nm) |
| B-Axis Milling Spindle Swivel Angle | +/- 180 degrees |
| B-Axis Milling Spindle Positional Measurement | Rotary Encoder |
| B-Axis Milling Spindle Clamping | Hydraulic |
| Turret Stations | 12 / BMT45 |
| Turret Live Tooling Speed | 8,000 rpm |
| Turret Performance (S3 25%) | 5.8 hp (4.3kW) |
| Turret Torque (S3 25%) | 10 ft-lb (13.6 Nm) |
| Tool Magazine Station Quantity | 72 |
| Tool Magazine Holder Type | HSK40 |
| Tool Magazine Tool Length (max) | 4.1 in (105 mm) |
| Tool Magazine Tool Diameter (max) | 3.5 in (88mm) |
| Tool Magazine Tool Diameter (max) - Adj Pocket Empty | 3.9 (100mm) |
| Machine Dimensions (LxWxH) | 119.3 in (3030 mm) x 111.8 in (2840 mm) x 113.8 in (2890 mm) |
| Machine Weight | 16,976 lbs (7,700 kg) |
| Operating Voltage | 3 x 400V (+/-10%) |
| Main Frequency | 60 Hz (+/- 2%) |
| Electrical Connection | TN network (5-wire) |

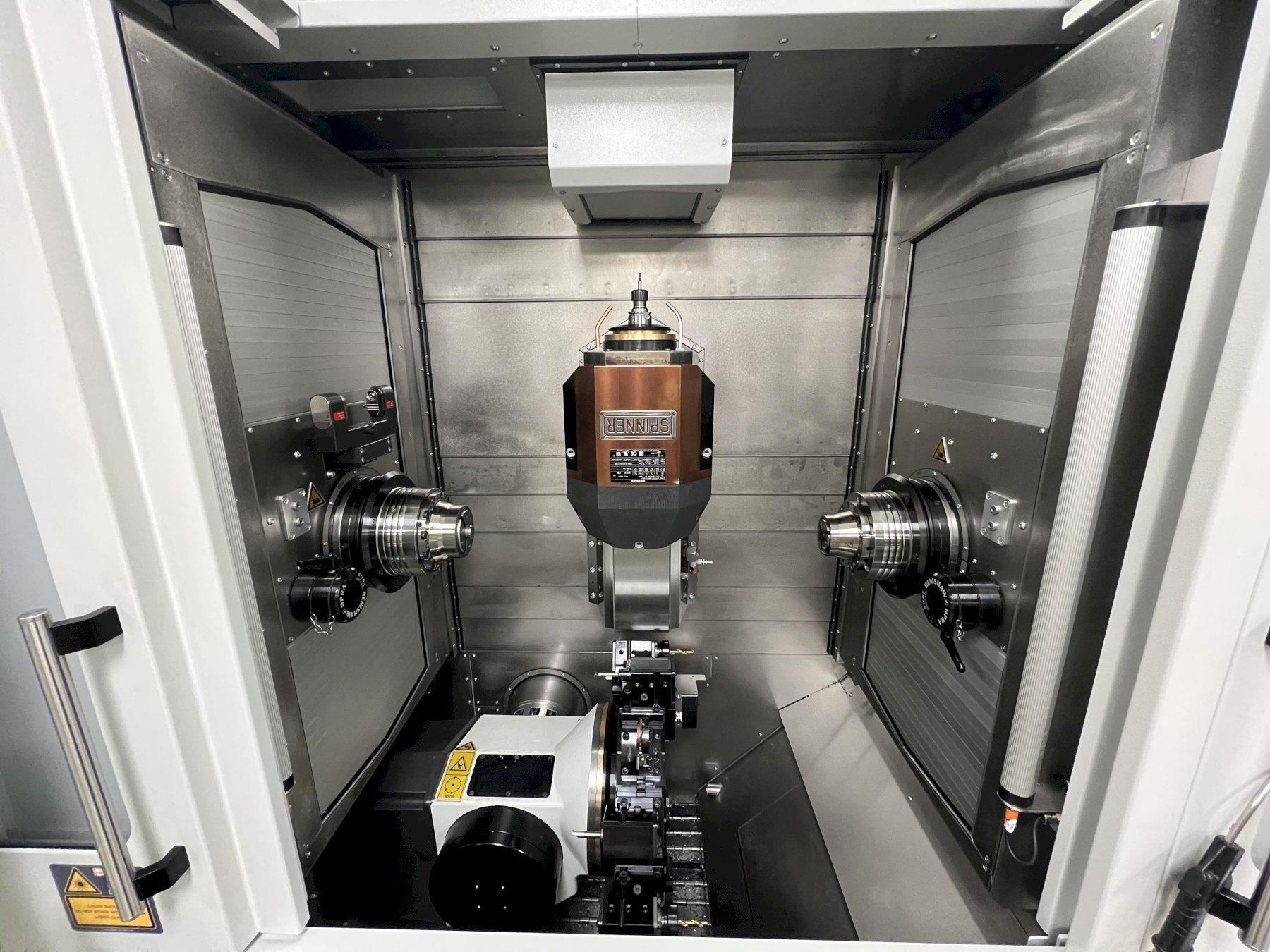

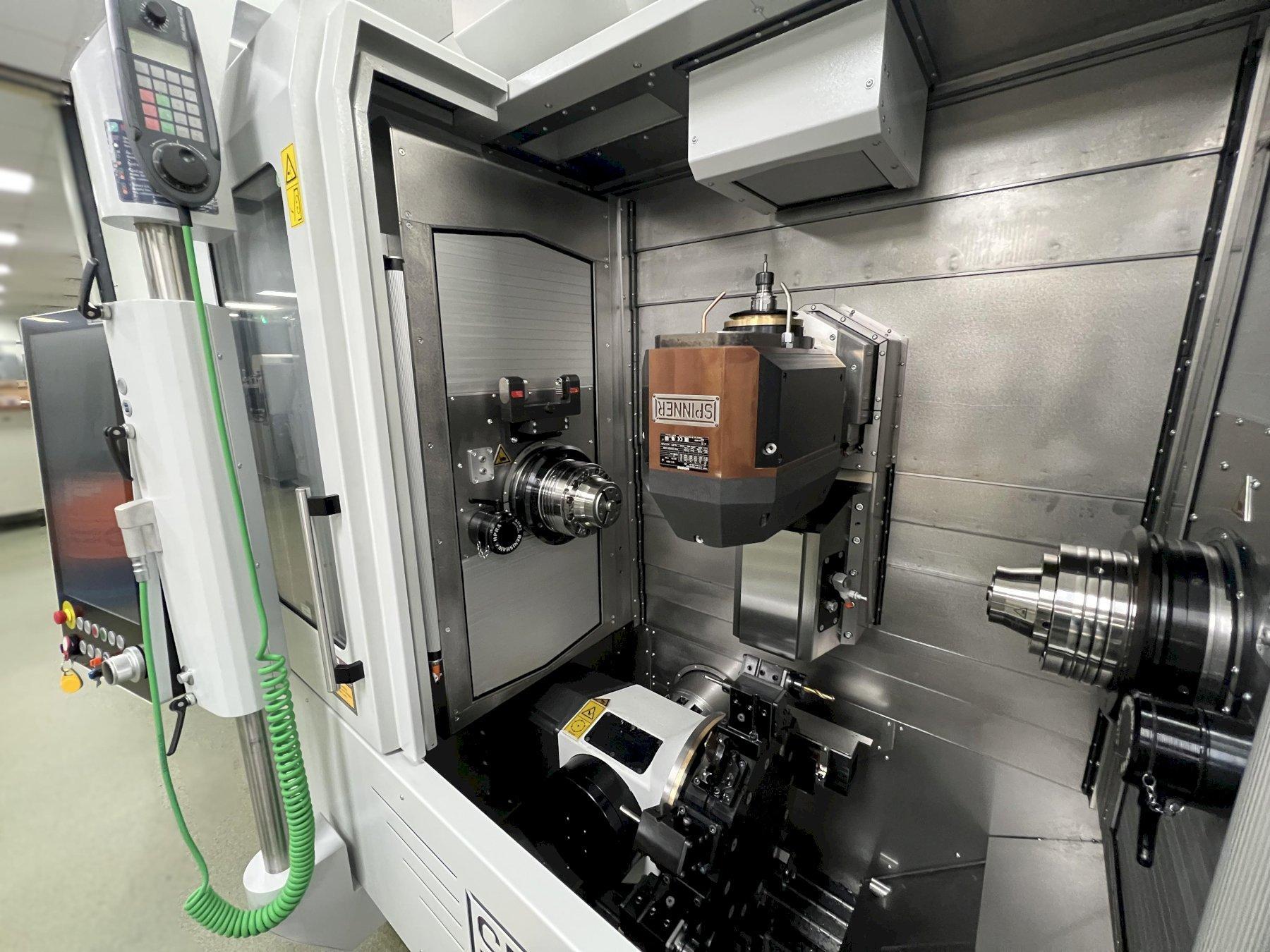

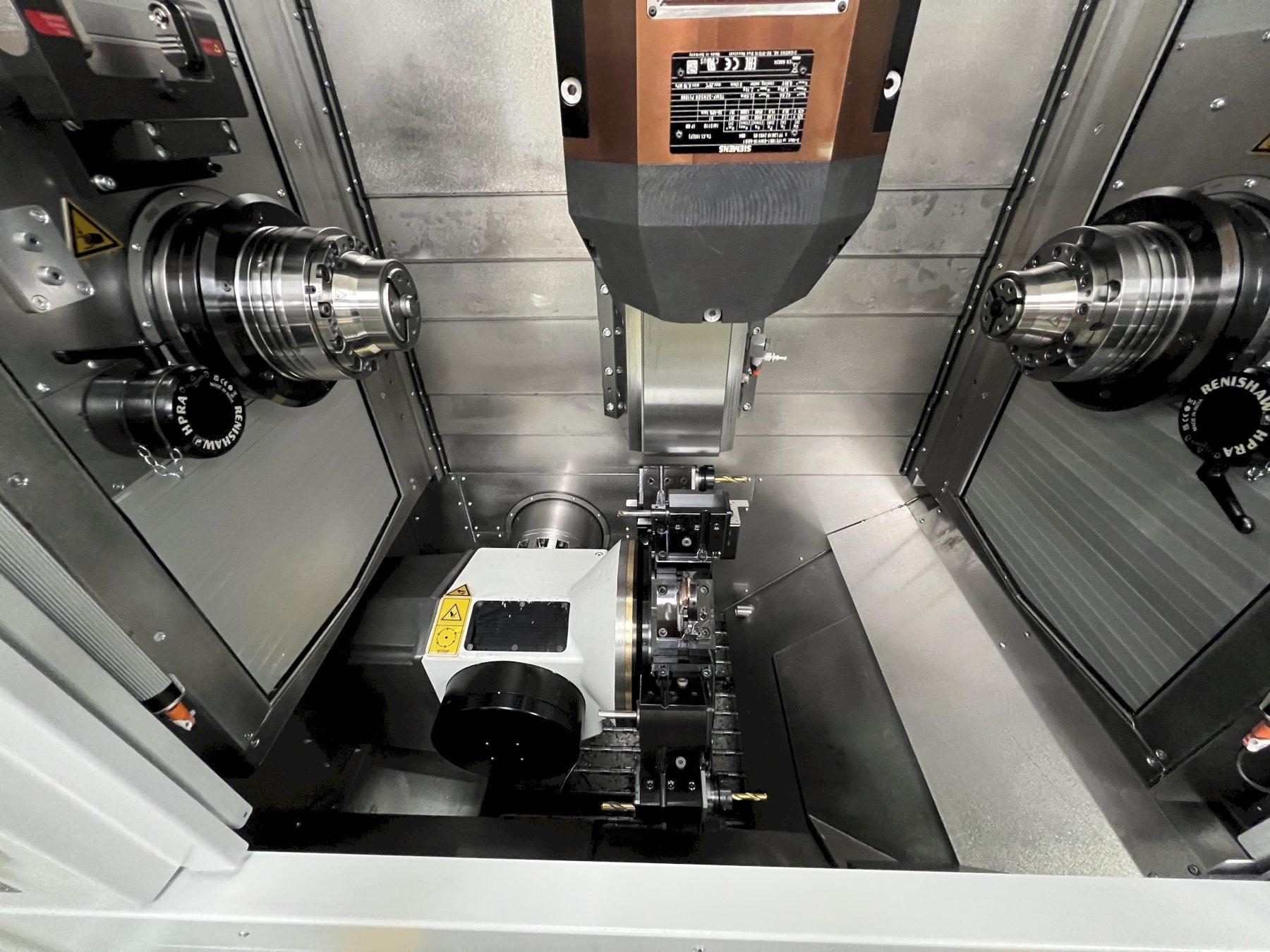

SPINNER MICROTURN 52 Ultra-Precision Turn-Mill-Center, dual spindles, dual spindle, 12-station turret with live-tools, full 5-axis, with a rotating 12,000 rpm B-axis milling spindle
