| X | 15.7" |
| Y | 11.8" |
| Z | 8.7" |
| Max. Workpiece Dimensions | 31.9 x 27.6 x 8.5" |
| Max. Workpiece Weight | 1102 lbs. |
| Auto Threading (Yes/No) | Yes |
| Submerged (Yes/No) | Yes |
| Taper Angle | 15 |
| Taper Height | 7.9 |
| U-V Travels | +/- 2.4" |

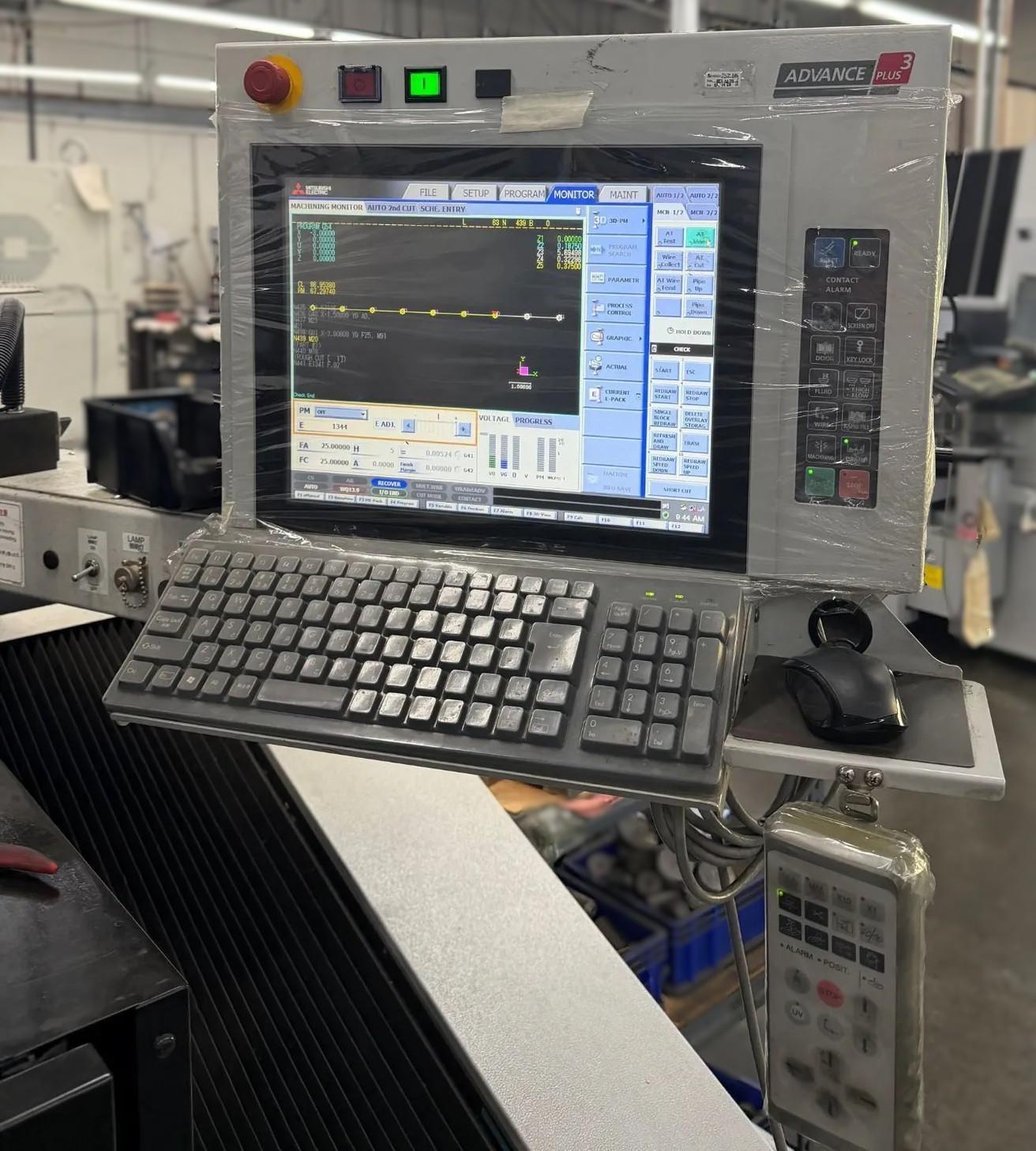

| Control Type | Mitsubishi M700 Advance Plus 3 |
| Screen Size | 15 |
| Touchscreen Display | Yes |
| Program Input Methods | Keyboard, USB,Ethernet |
| Chiller Included | Yes |
| Glass Scales on X & Y Axis | Yes |

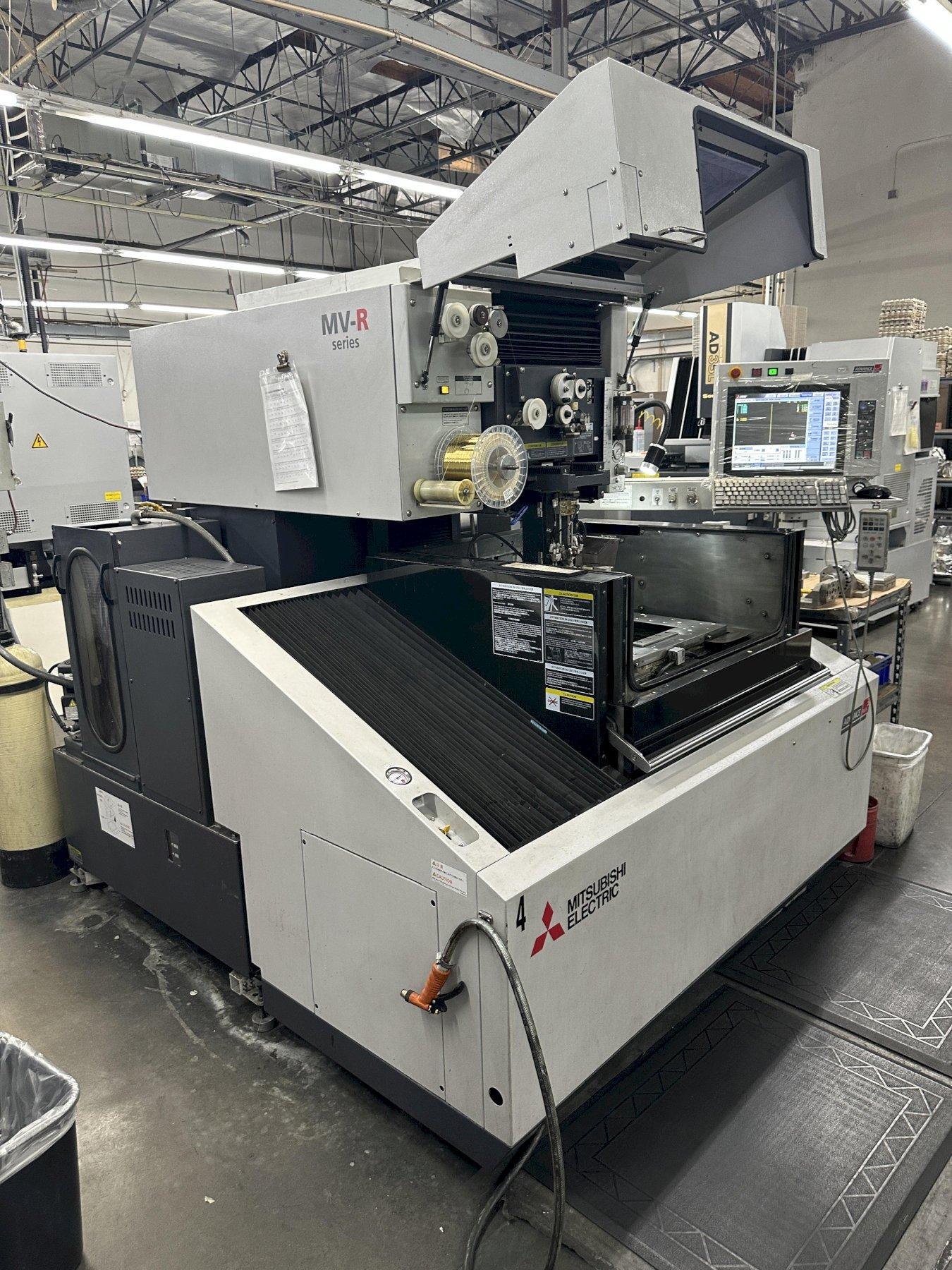

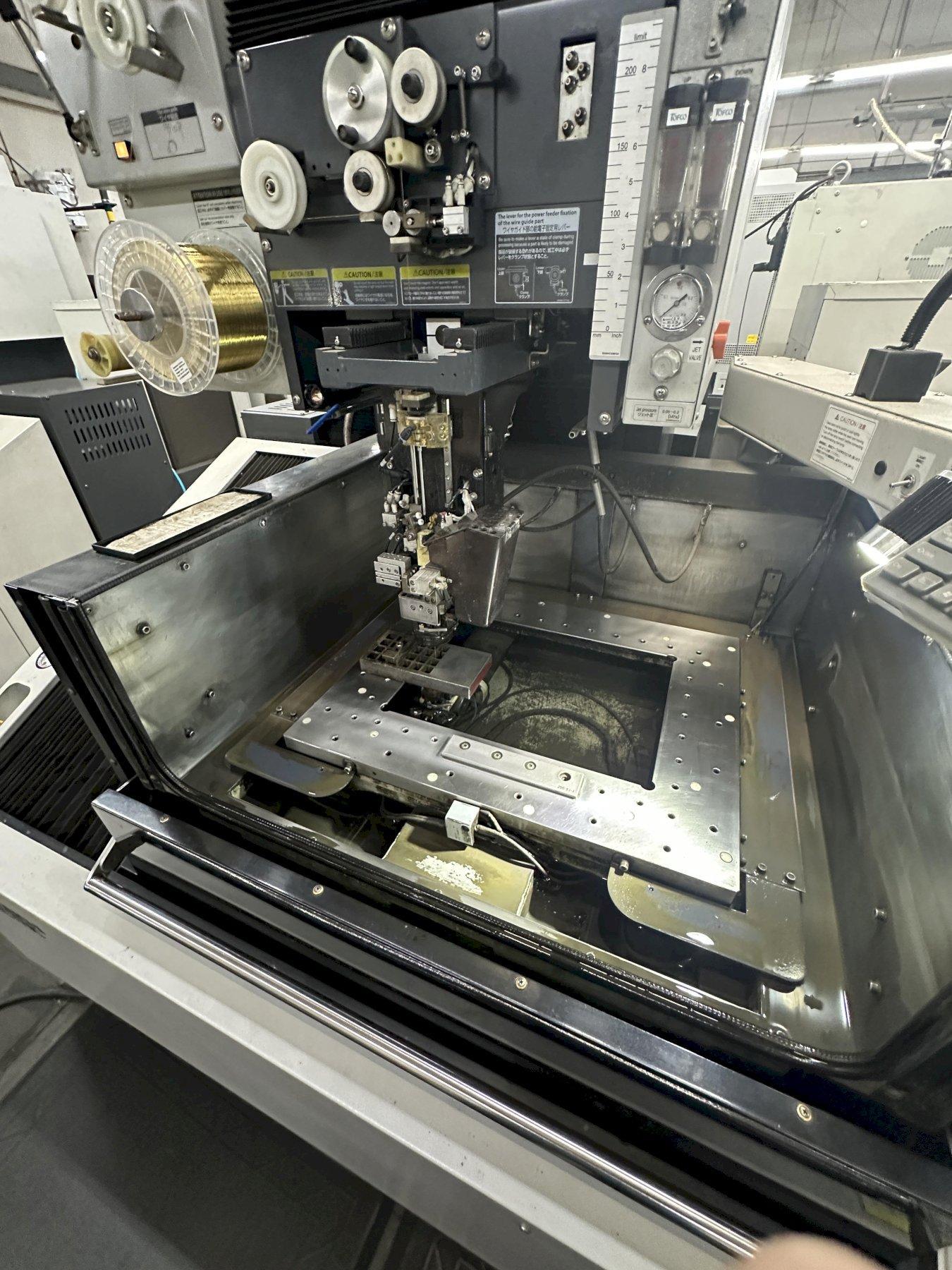

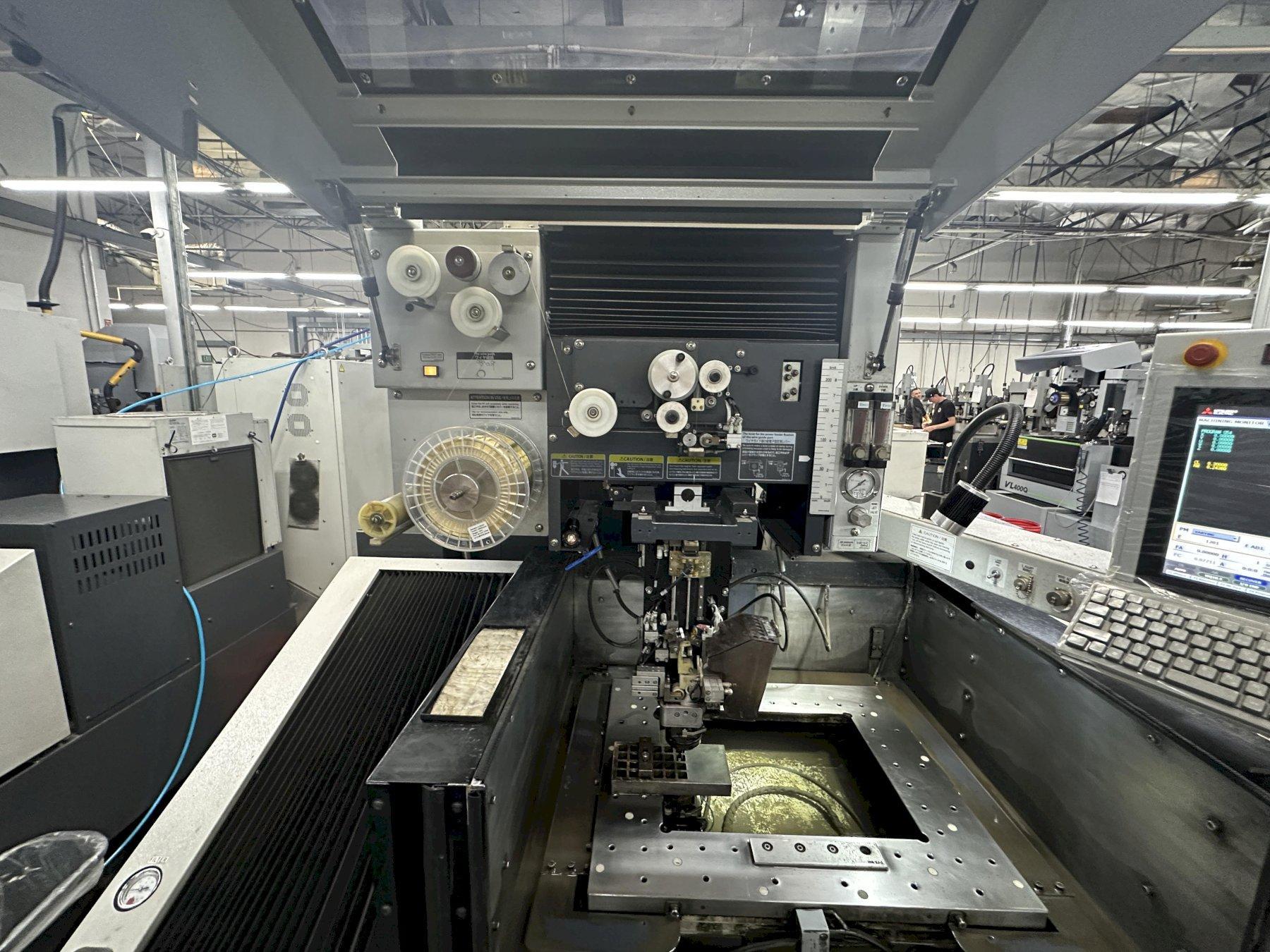

Mitsubishi EDM MV1200-R Advance Plus w/ 4,300 Machining Hours
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery 2424 Cypress Way, Fullerton, Ca 92831
Financing Available / Se Habla Español
Before buying, let us know if you need shipping quotes
