| Manufacturer | Pro Edge Technology |
| MAXIMUM LENGTH OF PART (USING 1 ZONE) | 96 inches |
| MAXIMUM THICKNESS OF PART | 2 inches |
| 4 INDEPENDENT ZONES | 23.6 inches |
| CENTER STOP FOR ZONES 2 & 3 | Raised and lowered by CNC |
| ELECTRO SPINDLE | 4,000 - 24,000 RPM |
| SPEEDS FOR X/Y/Z | X = 131 fpm / Y = 32 fpm / Z = 32 fpm |
| PROGRAMMABLE LIMITS FOR X/Y/Z | X = 96” / Y = 3.15” / Z = 2” |
| 4 INDEPENDENT VIBRATOR FEEDERS | 5mm spring pin, 5mm mini barbed channel lock, 8mm spring pin, 8mm barbed channel lock |
| AUTOMATIC LASER MEASUREMENT SYSTEM | Selectable on/off through program |
| 4 HORIZONTAL EDGE INJECTORS | 5mm spring pin, 5mm mini barbed channel lock, 8mm spring pin, 8mm barbed channel lock |
| CYCLE SPEED | 60 cycles per minute (drills or dowel inserts) |
| FIBER OPTIC SENSORS | For Lockdowel fasteners present to prevent misfires |
| 4 PHOTO SAFETY EYES | 1 in each zone for part placement |
| OFFLINE PROGRAMMING | Software can be install on another computer for offline programming |
| VOLTAGE | 10 kW / 220 V / 1 Ph |
| AMPS | 40 |
| APPROXIMATE DIMENSIONS {LxWxH} | 157” x 113” x 82” |
| APPROXIMATE WEIGHT | 6600 pounds |

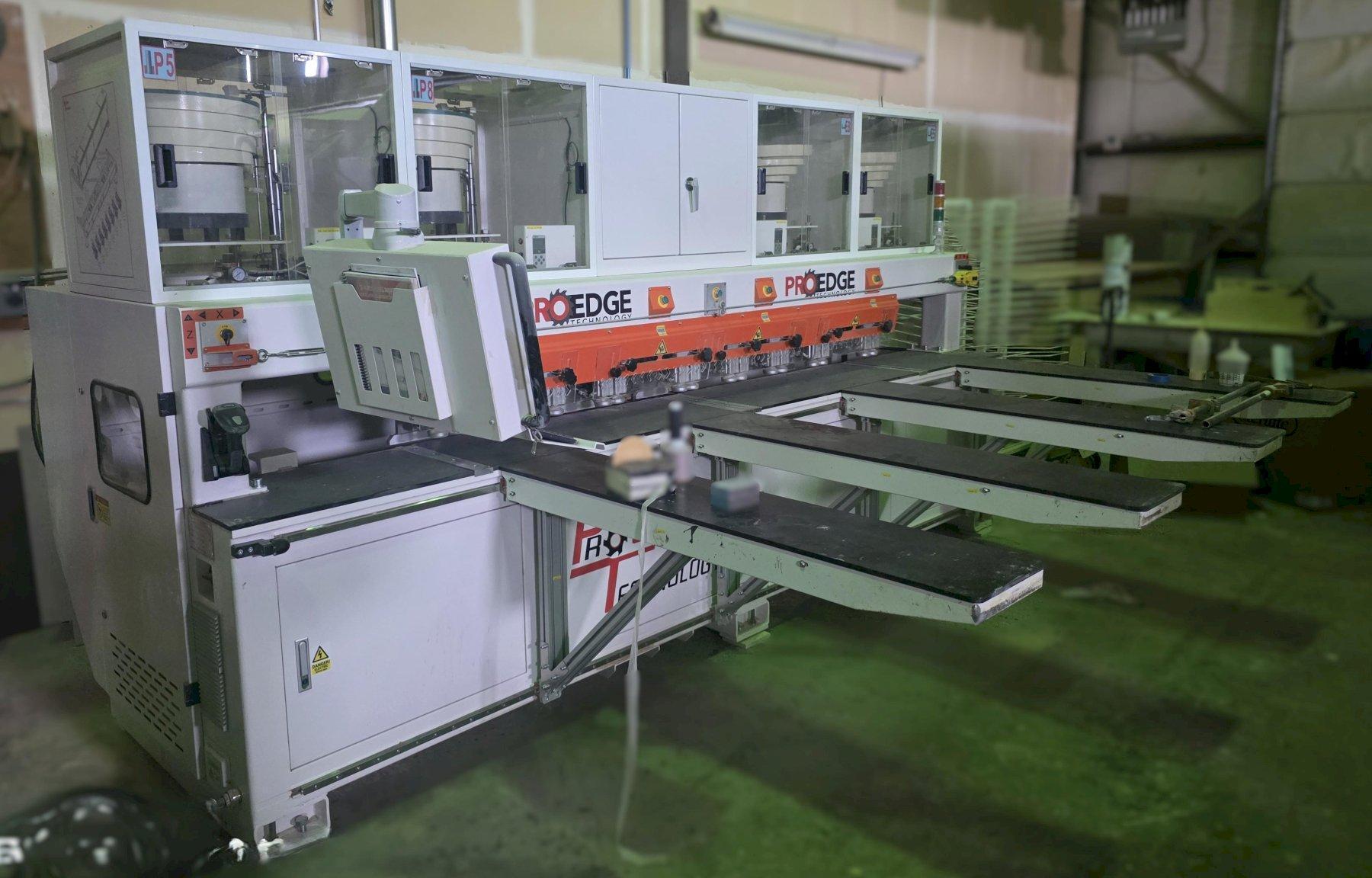

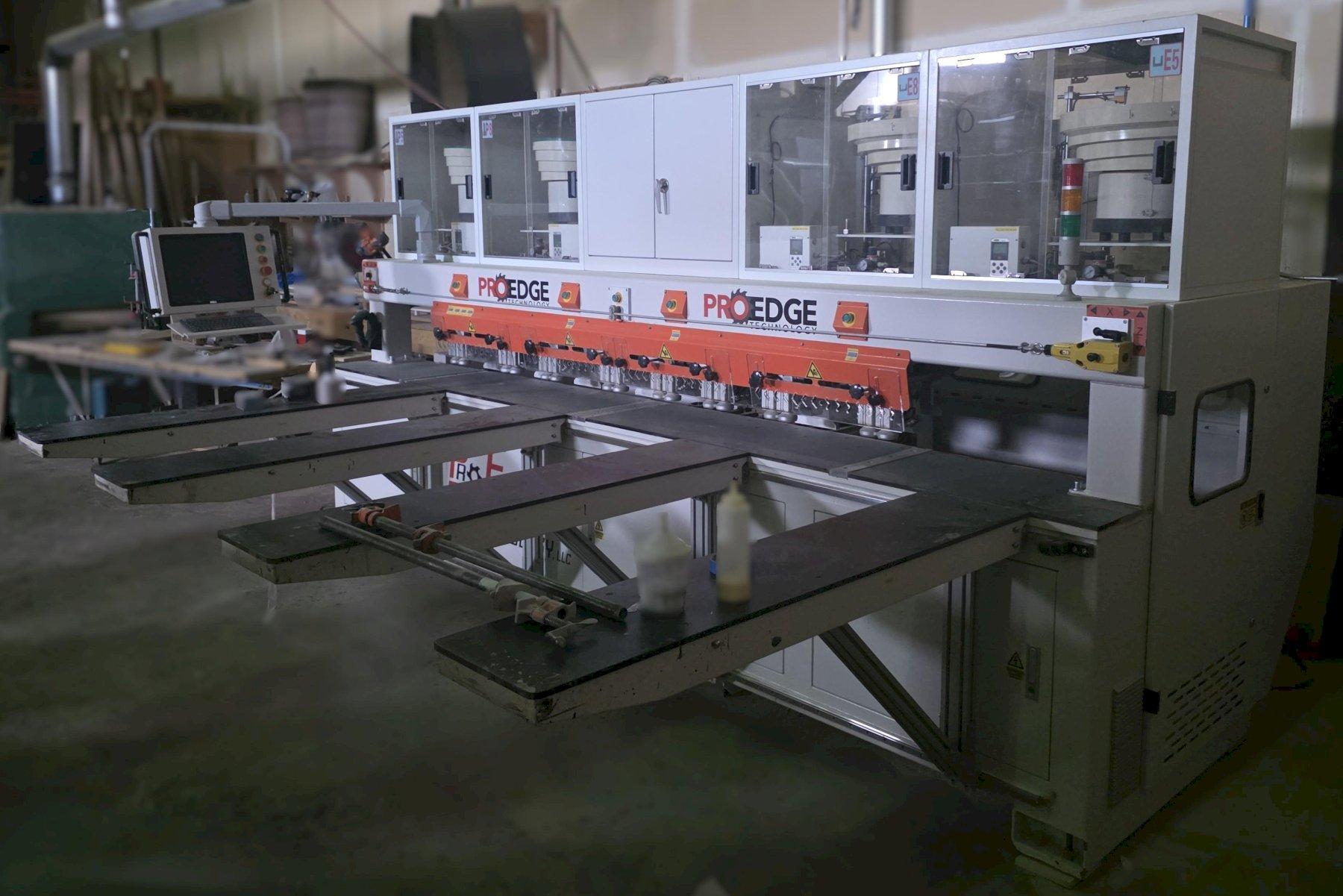

Pro Edge 3-Axis CNC Router & Lockdowel Insertion Machine PET2440-LD 2024
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
BANK REPO – OPEN TO ALL OFFERS
