| Max Weight on Platter (w/support) | 170 lb |
| Max Weight on Platter (unsupported) | 85 lb |
| Spindle Max. Speed | 100 °/sec |
| Torque (Continuous) | 210 ft-lbf |
| Runout Max | 0.0005 in |
| Center Height | 6.000 in |
| Backlash | 30 arc-sec |
| Brake Torque @ 100 psi/6.9 bar | 200 ft-lbf |
| Gear Ratio | 90:1 |
| Timing | 2:1 |
| Tooling | A1-6 Spindle |
| Accuracy (±) | ± 15 arc-sec |
| Repeatability | 10 arc-sec |
| Resolution | 0.001 ° |
| Worm Gear Dia | 6.3 in |
| Max Rotation/Step (with rotary control) | 999.999 ° |
| Power Requirement | 115 VAC ±10% @ 15 A |
| Operating Temp (max ambient) | 100 °F |
| Air Pressure Max | 150 psi |

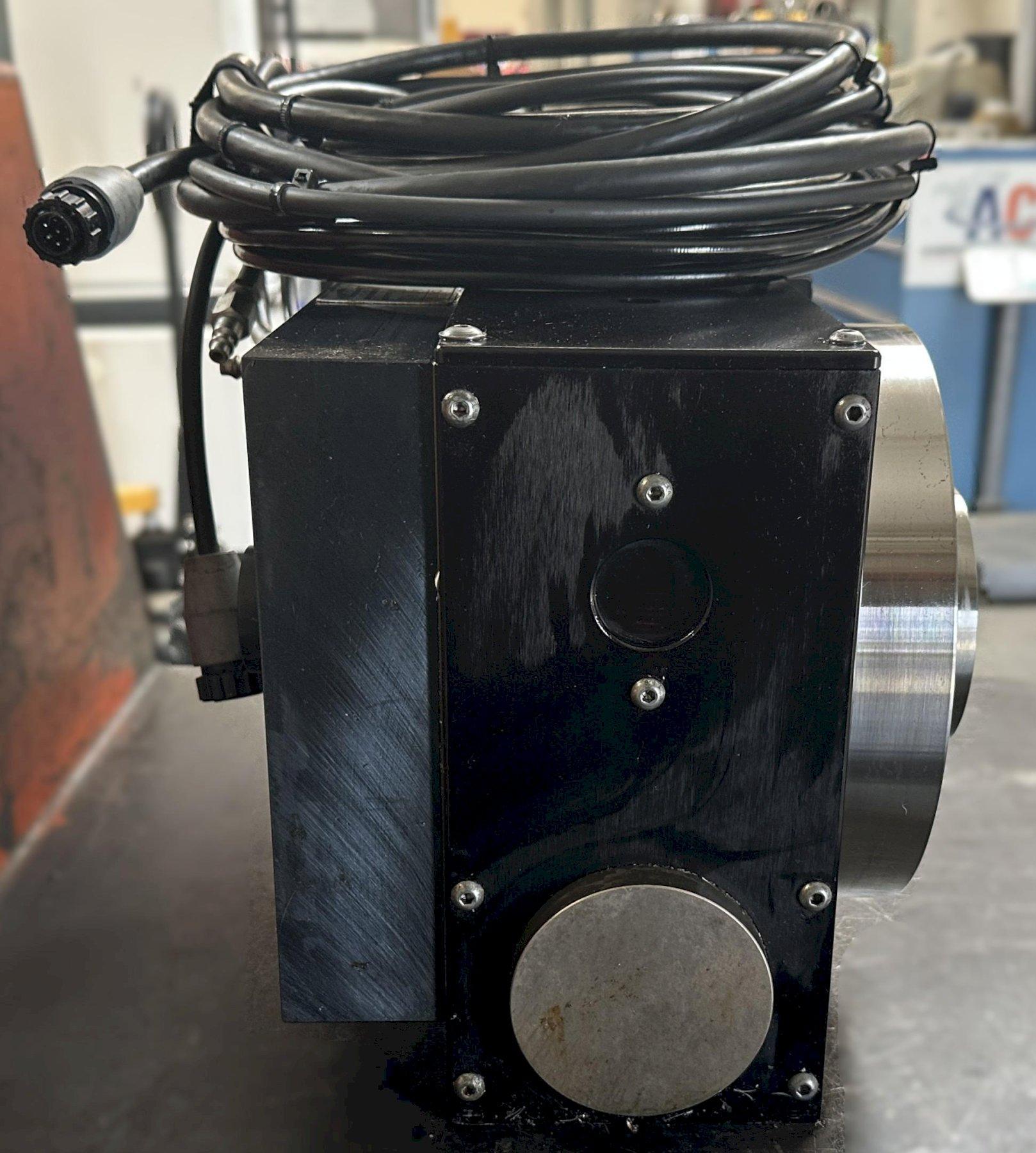

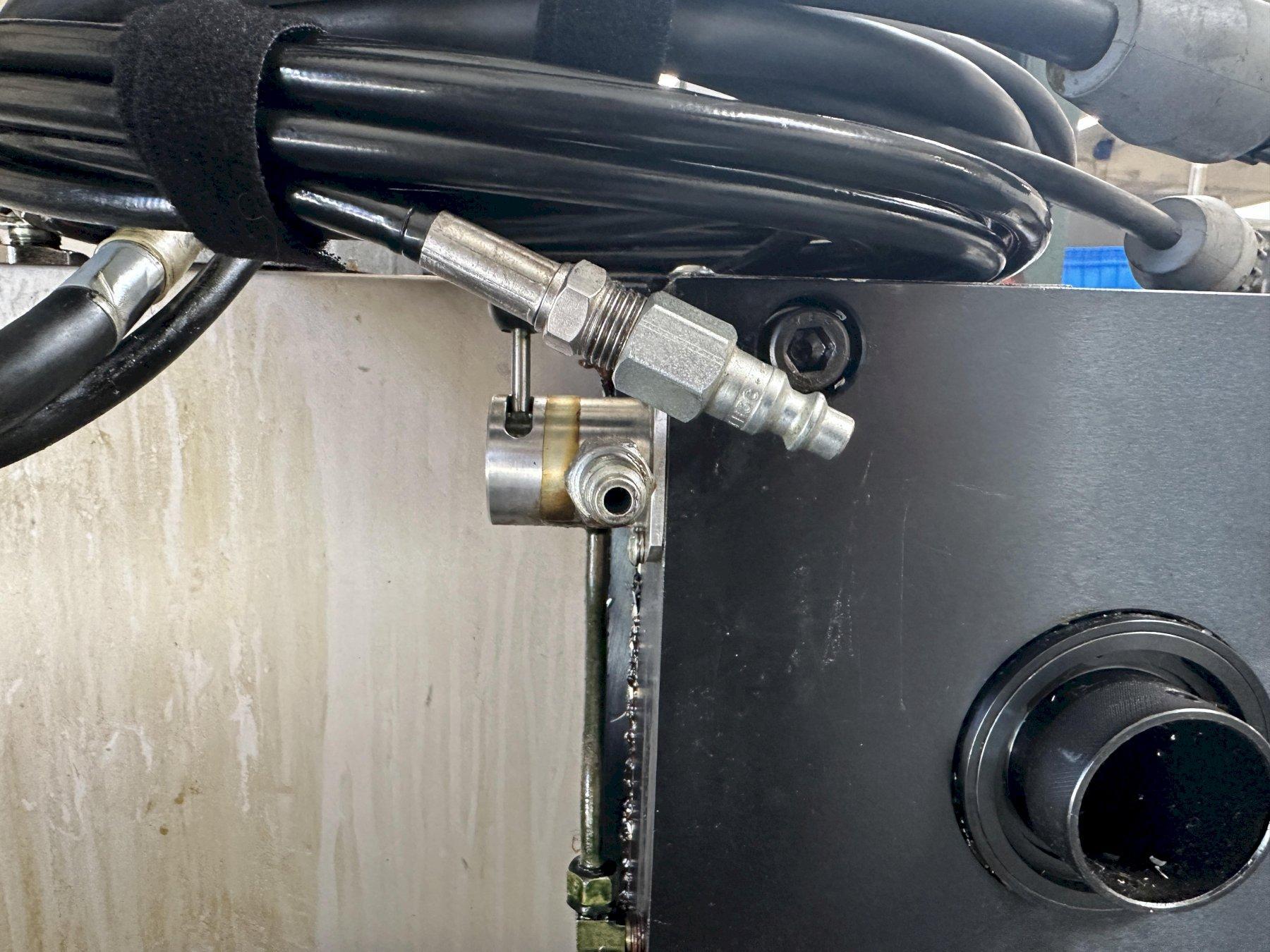

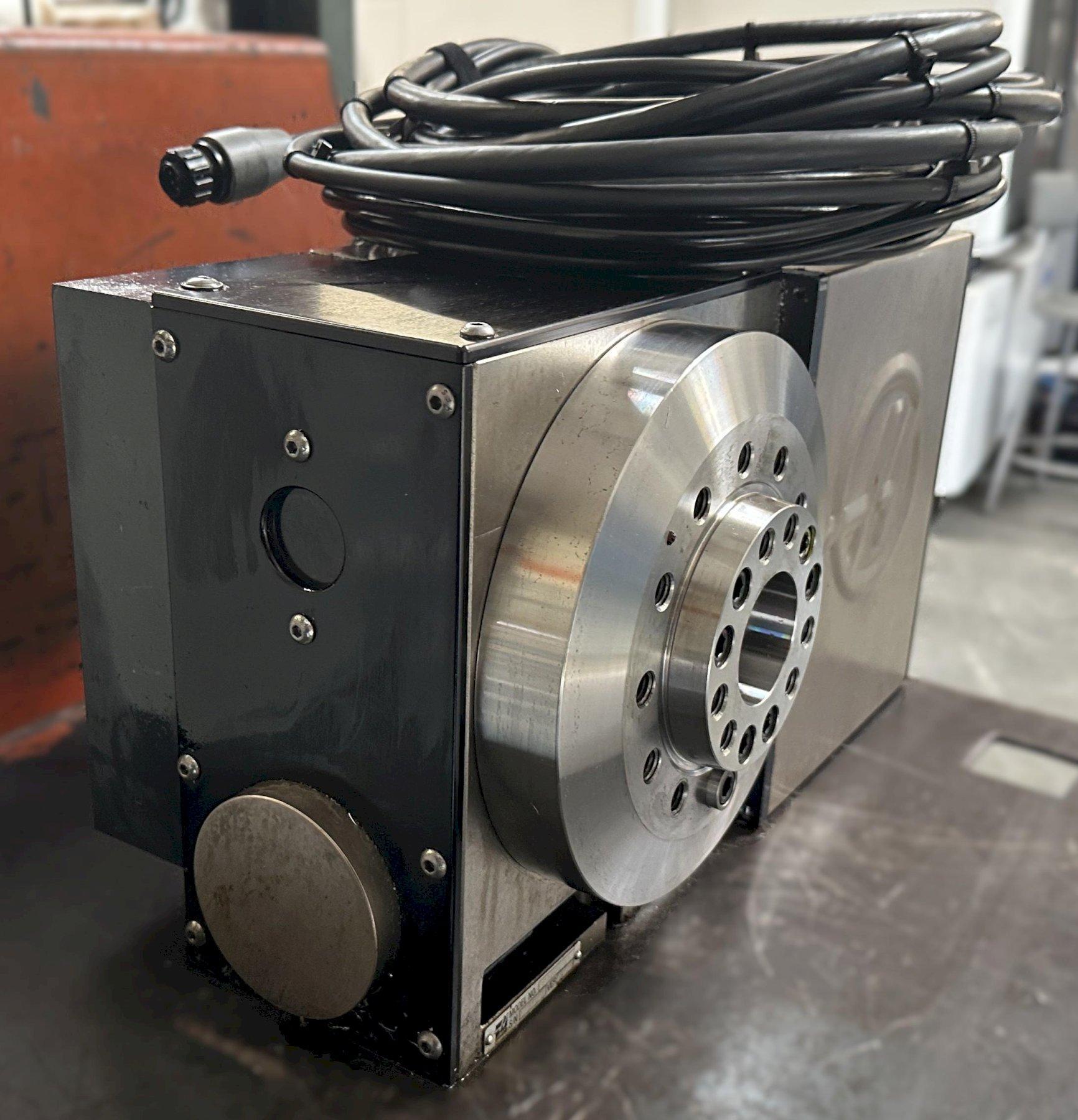

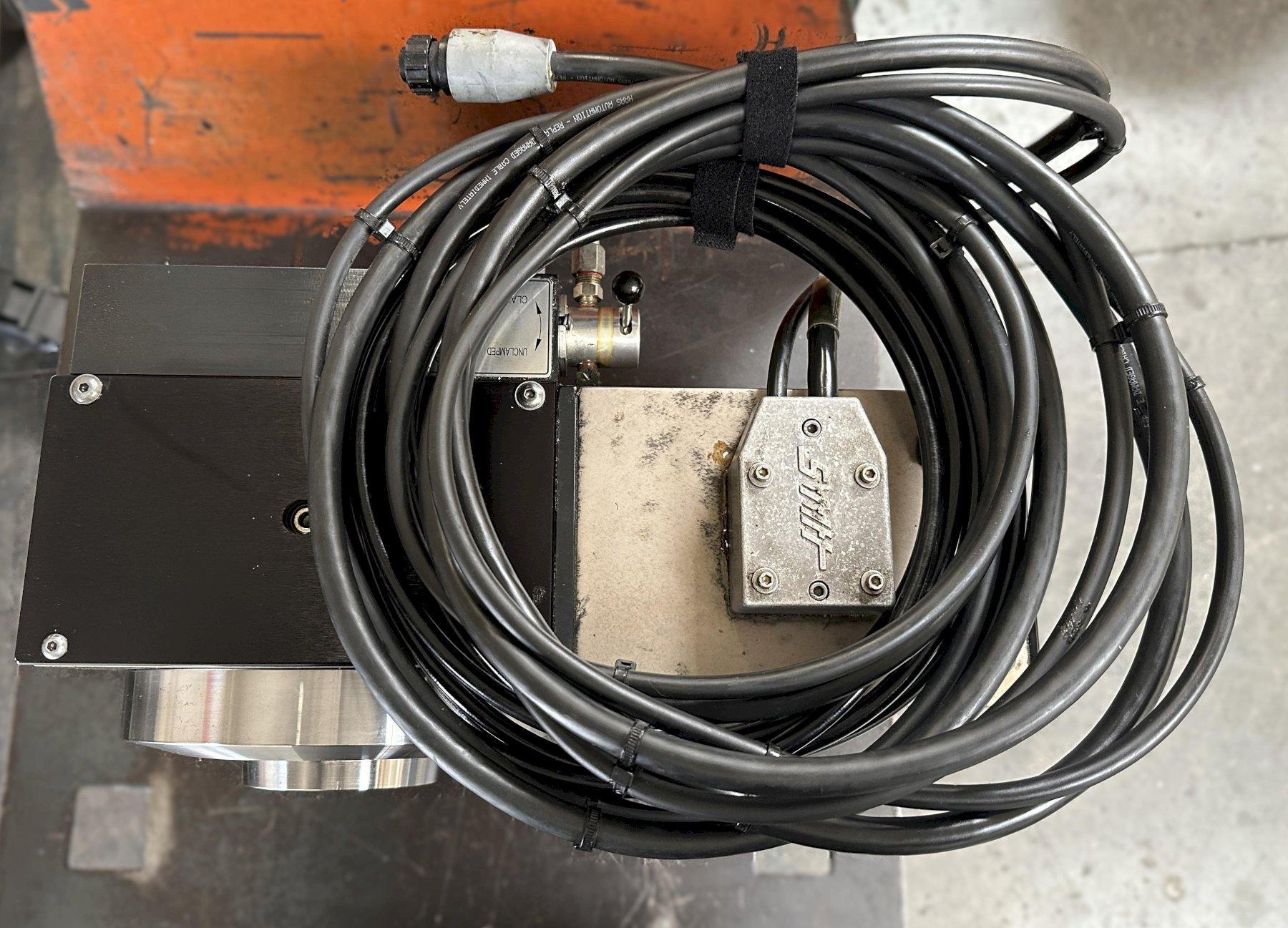

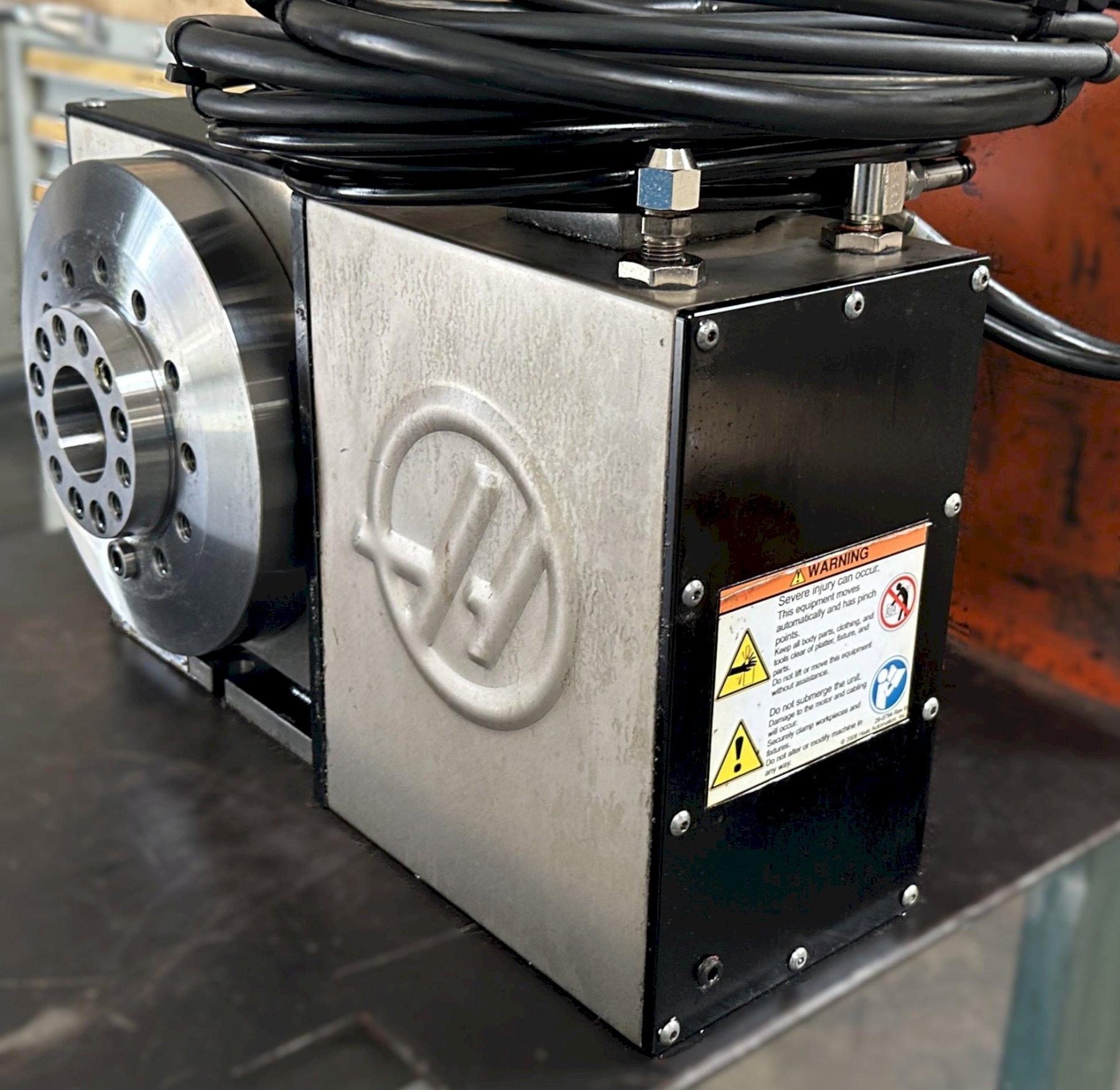

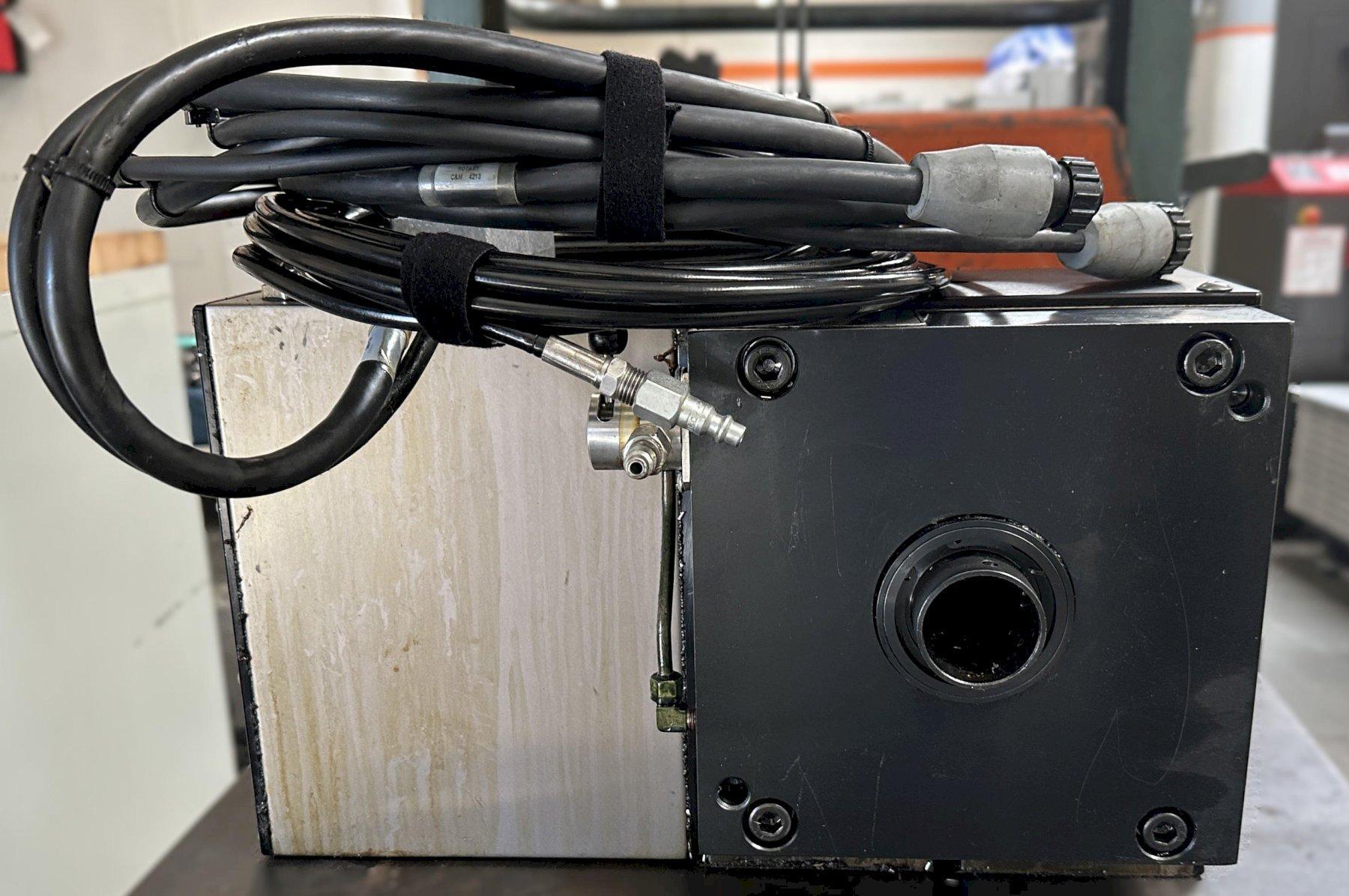

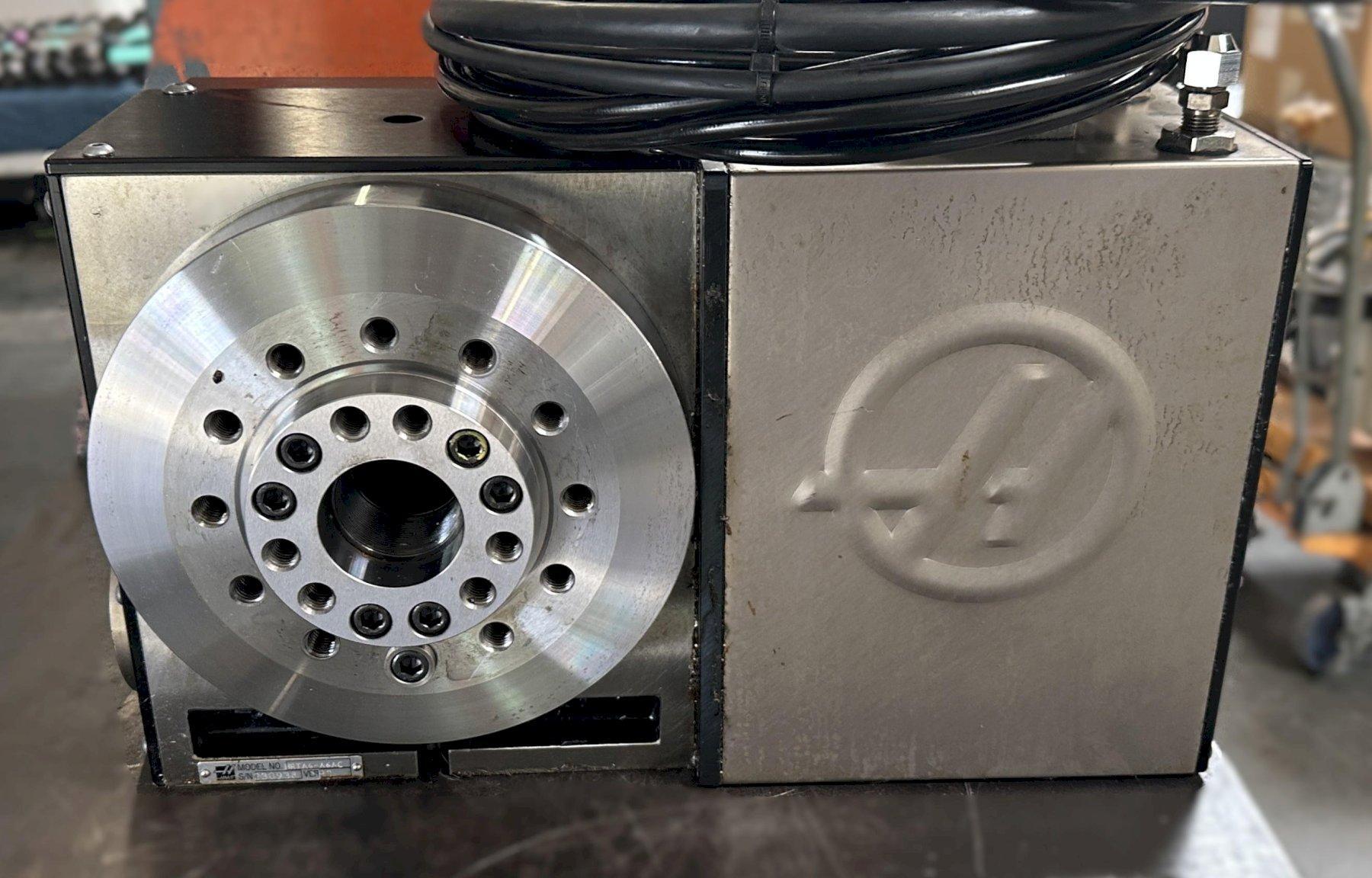

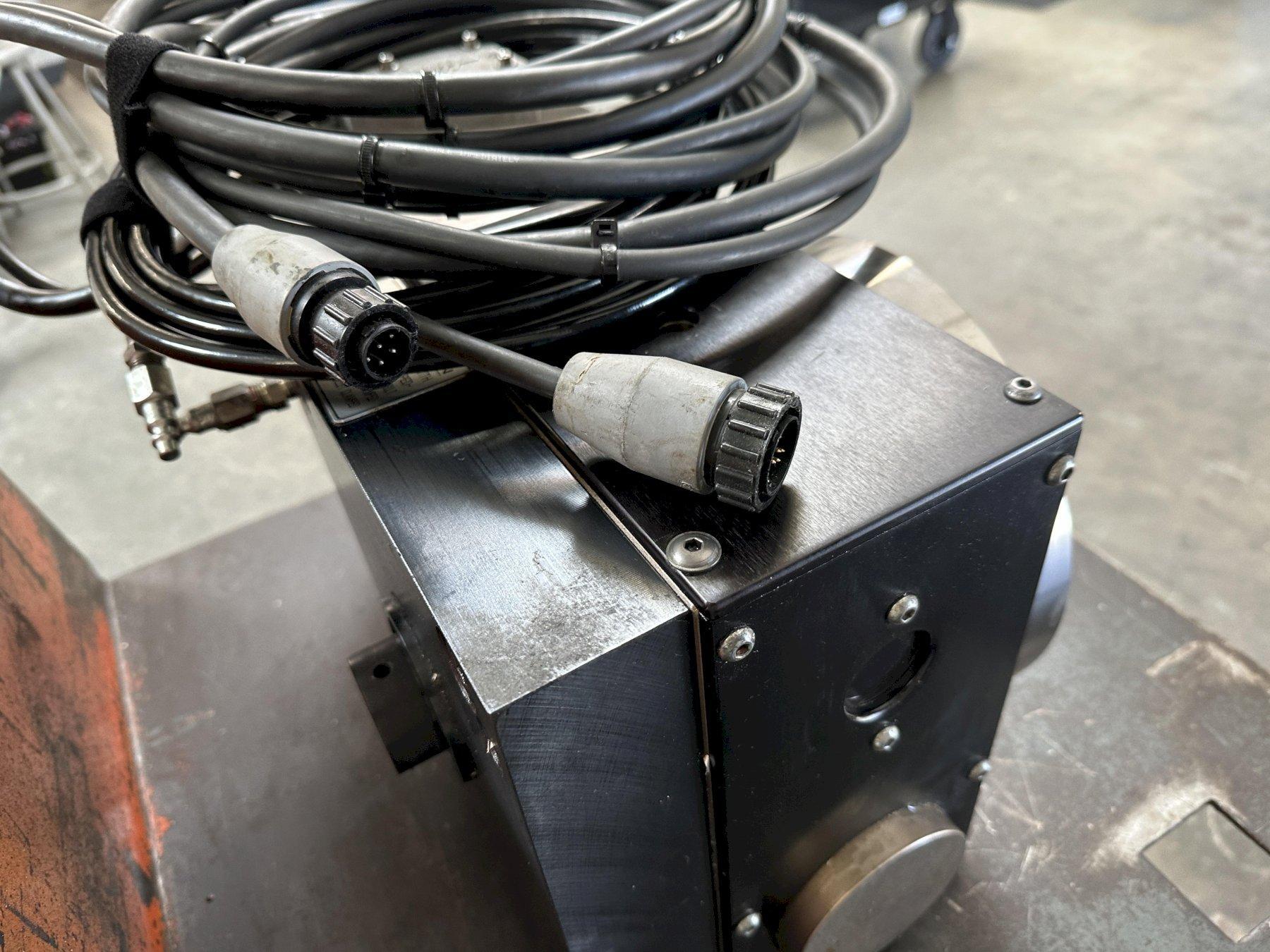

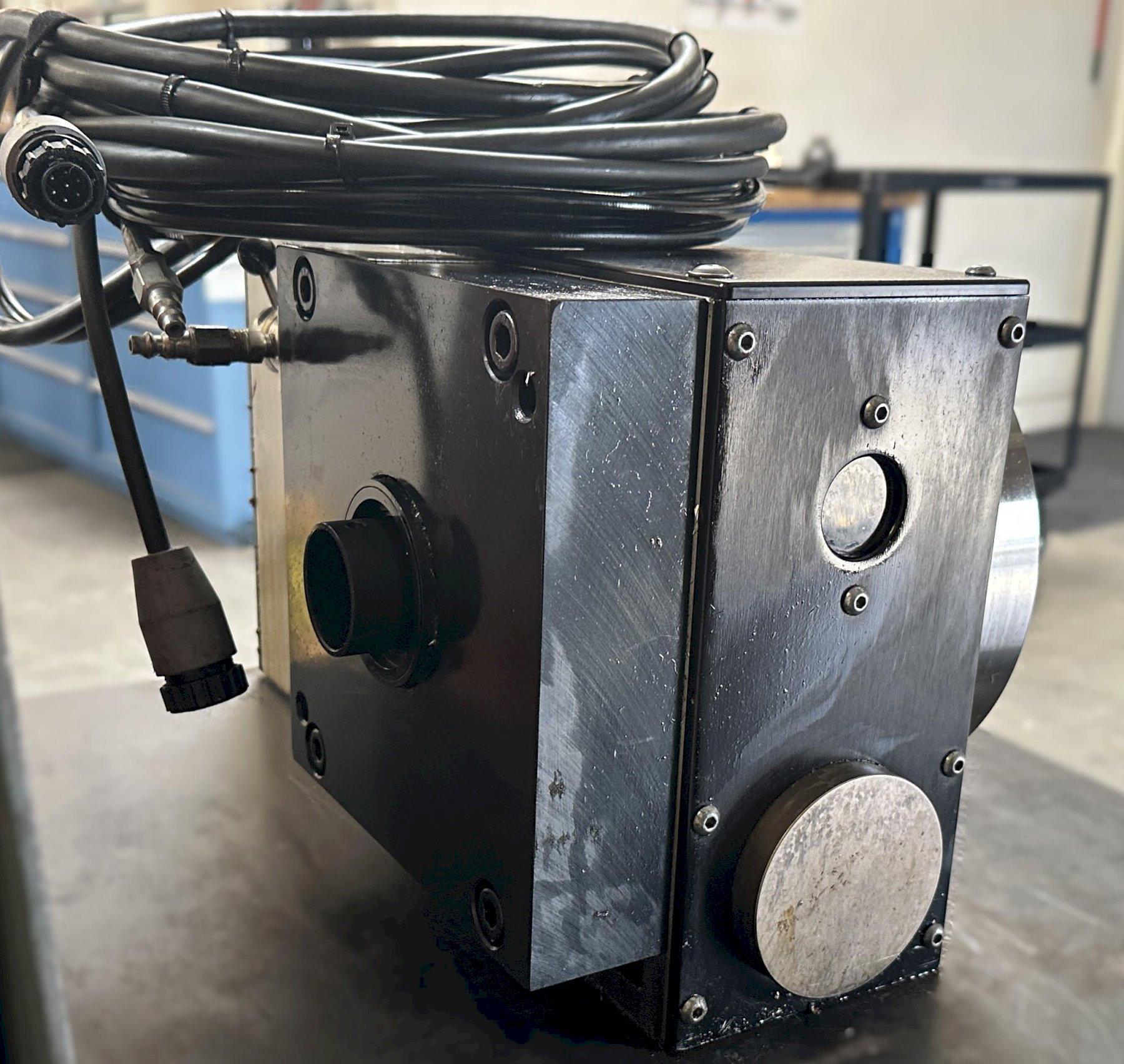

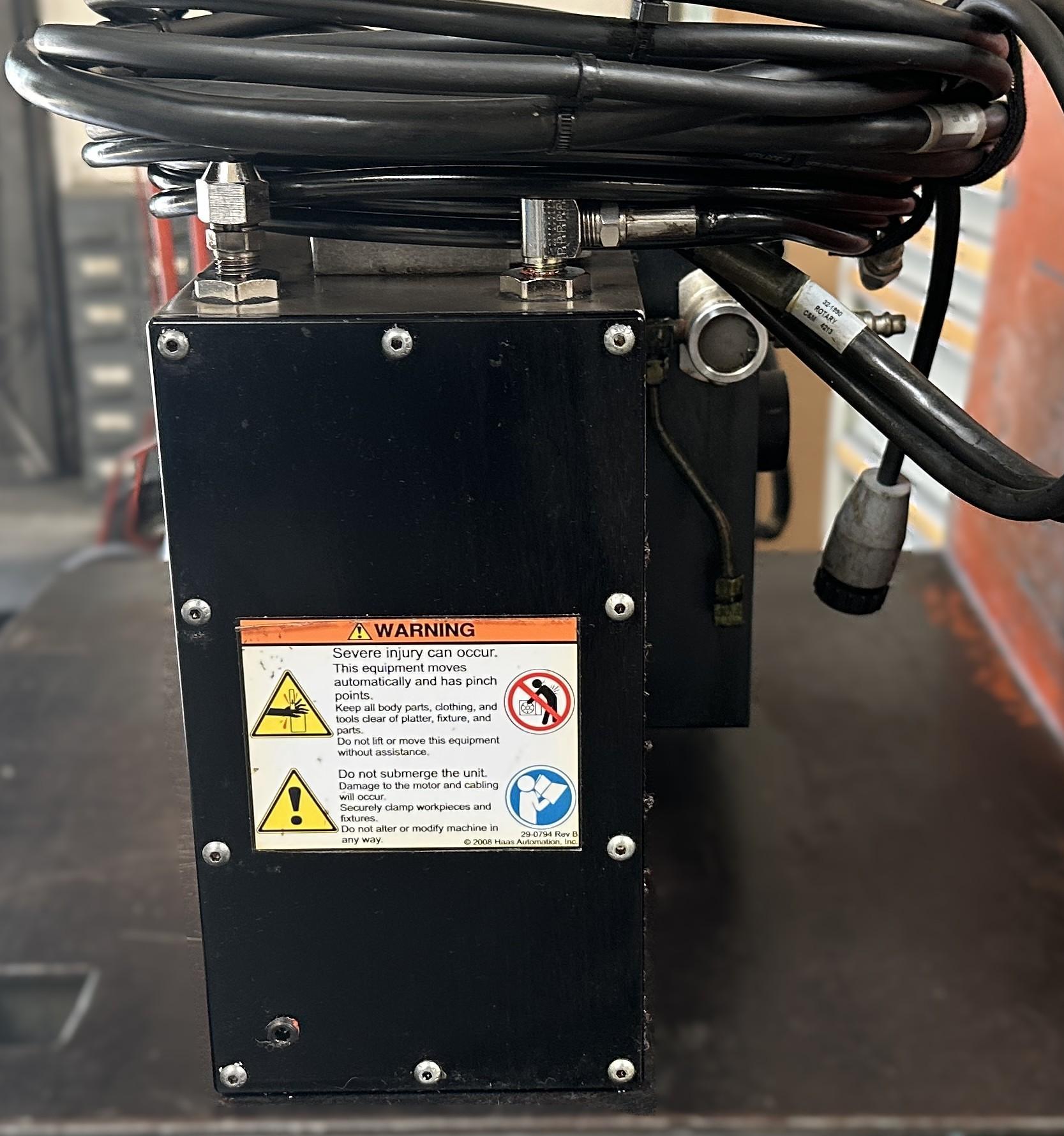

HAAS HRTA6 HRT210 Type 4th-Axis Rotary Table with A1-6 Platter Size Pneumatic Collet Closure
