| Table Size | Ø6.7" |
| Maximum Table Load | 44 Lbs. |
| Maximum Workpiece Diameter | Ø9.1" with Limitation |
| Maximum Workpiece Height | 6.9", 4.6" with Optional 12 or 24APC Systems |
| X-Axis Travel | 10.0" |
| Y-Axis Travel | 13.0" |
| Z-Axis Travel | 13.0" |
| A-Axis Travel | 240 Degrees (- 120 to +120 Degree) |
| C-Axis Travel | 0 to 360 Degree |
| Distance from Table Surface to Spindle Nose | 2.0" to 15.0" |
| Distance from Table Center to Spindle Center | -6.1" to 6.9" |
| Spindle Taper | HSK-E40 |
| Spindle Speed | 300 to 30,000min^-1 |
| Drive Method | Integral Drive |
| Spindle Motor | 24.5 HP AC/2 Min., 20HP AC/Cont. |
| Spindle Torque | 10.8ft.lbs |
| Rapid Feed X,Y | 2,362 ipm |
| Rapid Feed Z | 1,969 ipm |
| Rapid Feed (A Axis) | 100 min^-1 |
| Rapid Feed (C Axis) | 200 min^-1 |
| Cutting Feed | 1,969 ipm |
| Tool Storage Capacity | 40 Tools |
| Tool Holder Style | HSK-E40 |
| Max. Tool Diameter | Ø2.0" |
| Max. Tool Length | 7.9" |
| Max. Tool Weight | 4.4 Lbs. |
| Floor Space (WxD) | 47.2 x 80.5" |
| Machine Height | 87.7" |
| Machine Net Weight | 8,300 Lbs. |
| Control | Arumatik-Mi |

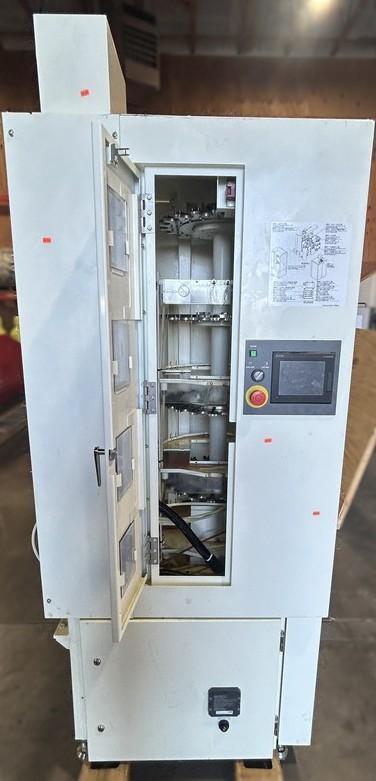

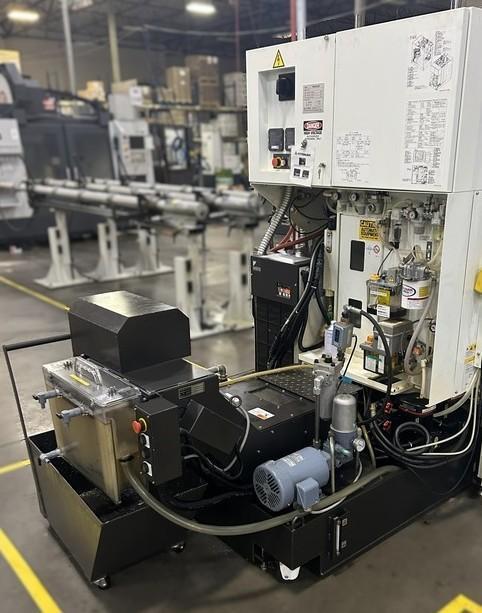

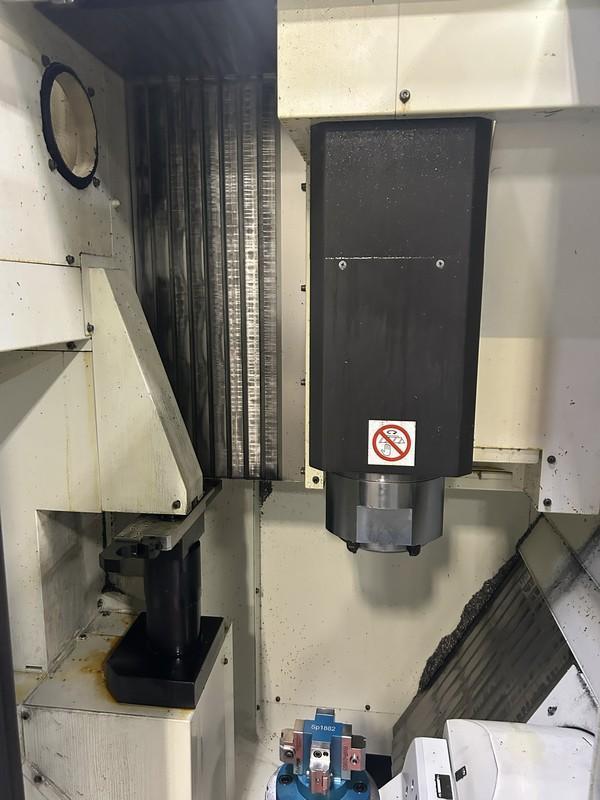

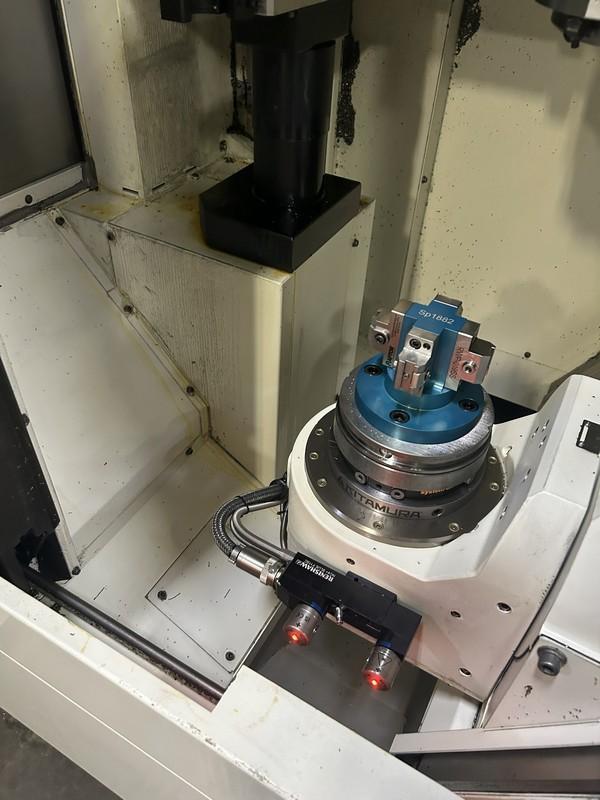

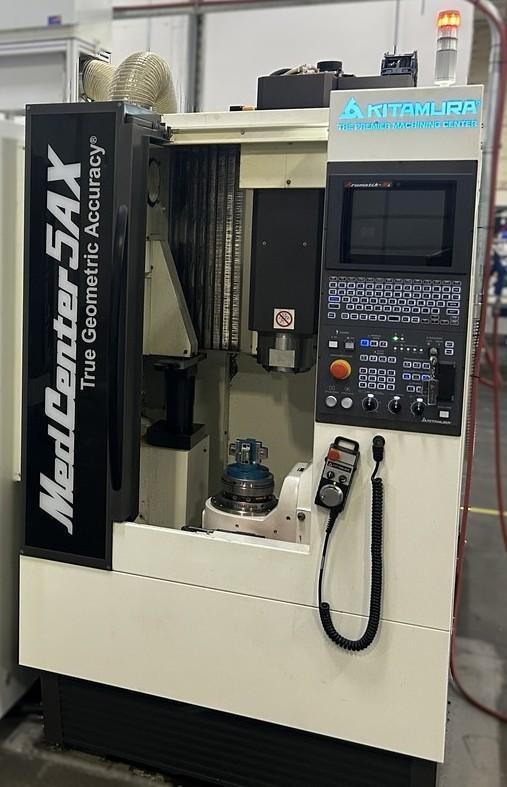

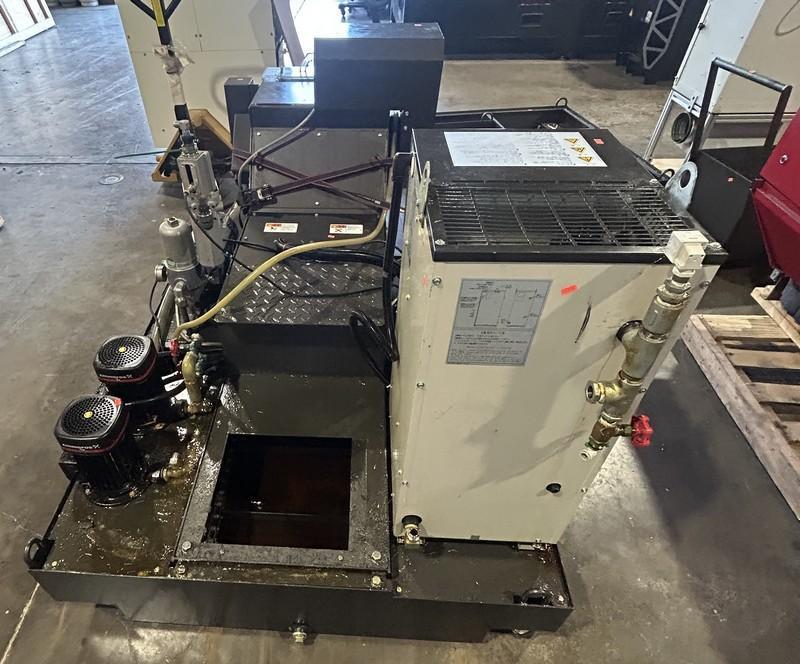

Kitamura Medcenter5AX Vertical Machining Center w/ Arumatik Mi Control, 300-30,000 RPM Direct Drive Spindle, Spindle Oil Cooler, Renshaw NC4+ Blue F115C Probe, High Capacity 40 Tool ATC w/ 120 ATC Upgrade, Raptor SP1882 Tombstone w/ (4) Raptor Vices RWP019SS, Scraper Type Chip Conveyor
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery 2424 Cypress Way, Fullerton, Ca 92831
Financing Available / Se Habla Español
Before buying, let us know if you need shipping quotes
