| Working Table Size | 5' x 12' |
| Voltage | Voltage: 380–415 V |
| Table | Phenolic Work Table w/ 2 Rear Pneumatic Stops + 1 left side stop + 3 Front Stops |
| Spindle Motor | 13.2 kw - (17.7hp) |
| Spindle Speed | Programmable Speeds (0-24,000 rpm) |
| Spindle Info | Prearranged for add-on C-axis, Has 4 blowing nozzles |
| Tool Changer Capacity | 12 position ride-along tool change capacity |
| Tool Measurement | Automatic Tool Length Measurement System |
| Drill Block | 18-Spindle Drill Block |
| X-Axis Speed | 60 m/min |
| Y-Axis Speed | 60 m/min |
| Z-Axis Speed | 25 m/min |
| X/Y Vectorial Speed | 85 m/min |
| Specs | 8 zones Multizone vacuum system |
| Vacuum | 2- Becker Vacuum Pumps |
| Dimensions (LxWxH) | 16’ x 8.4’ x 8’ |
| Approx. Weight | 6,000 lbs |
BANK OWNED – OPEN TO ALL OFFERS

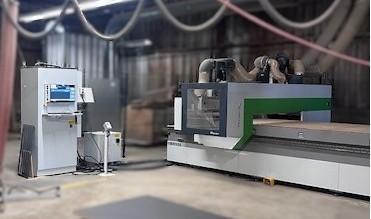

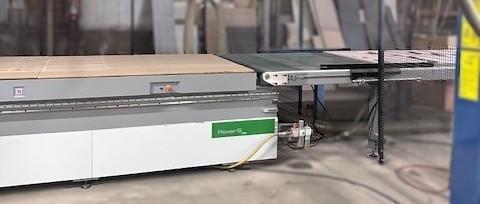

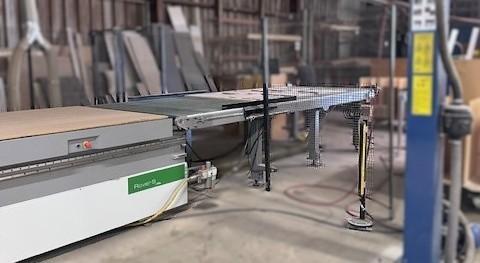

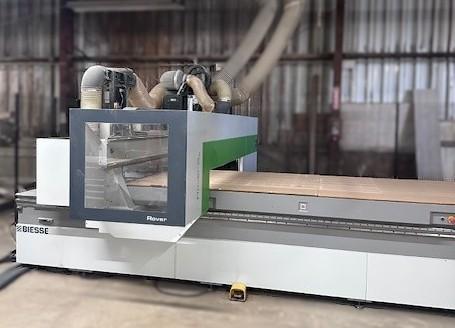

Biesse Rover S 1536, 2- Becker Vacuum Pumps, Conveyor
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery 2424 Cypress Way, Fullerton, Ca 92831
Financing Available / Se Habla Español
Before buying, let us know if you need shipping quotes
