| # Axis | 5 |
| Swing | 20.47" |
| Machining Length | 17.72" |
| Chuck Size | 10" |
| Bar Capacity | 2.54" |
| Power | 20 hp |
| Max RPM | 3,000 RPM |
| Turning Diameter | 11.81" |
| Tailstock | No |

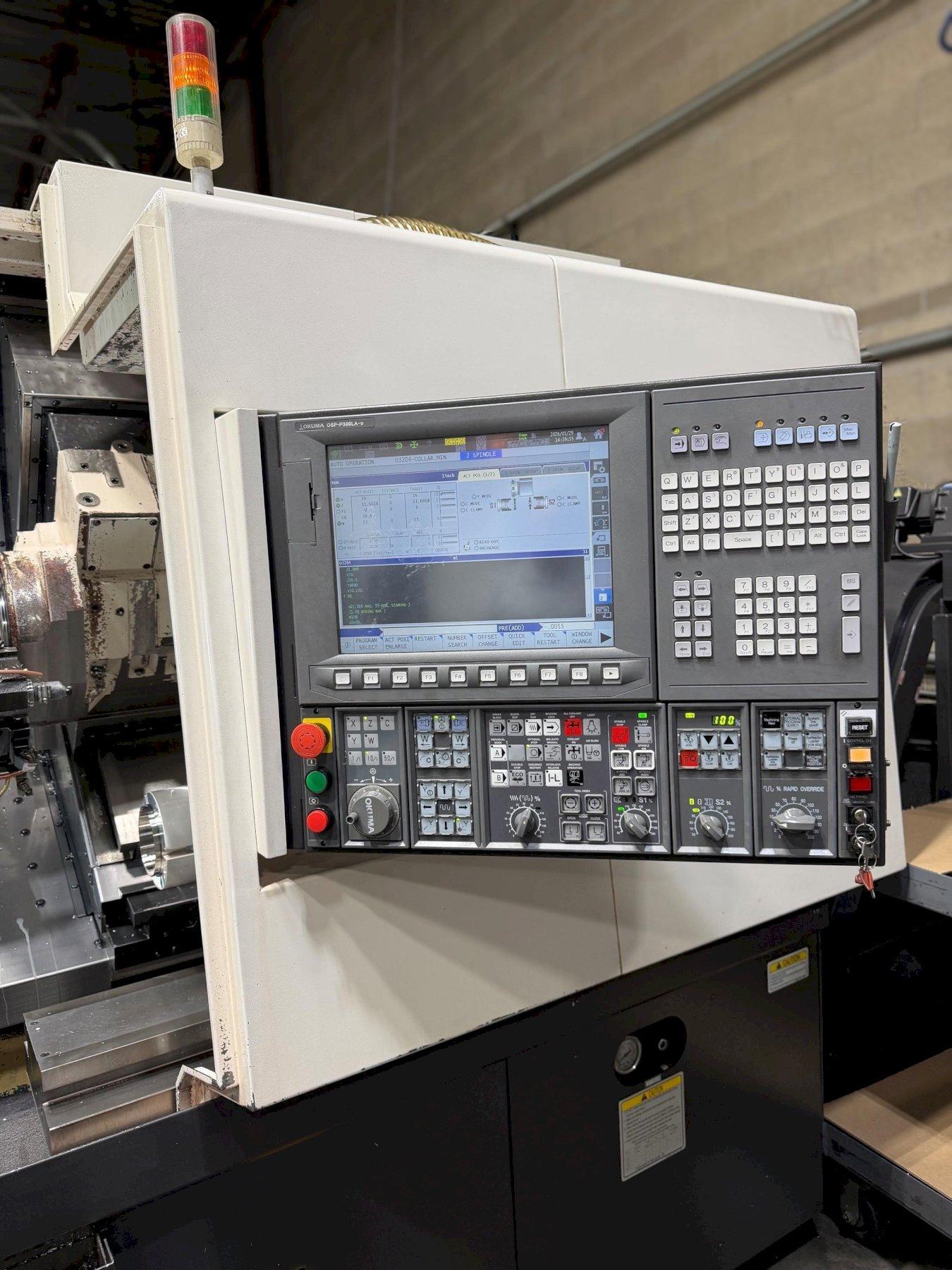

| Control | CNC (Okuma OSP-P300LA-e One-Touch IGF CNC Control) |
| X Axis Travel | 9.25" |
| Z Axis Travel | 17.72" |
| Y Axis Travel | 3.94″ (±1.97″) |
| W Axis Travel (Sub Spindle) | 20.47″ |
| C Axis Rotation | 360º (0.001º) |
| Rapid Traverse X Axis | 787 IPM |
| Rapid Traverse Z Axis | 984 IPM |
| Rapid Traverse Y Axis | 394 IPM |
| Rapid Traverse W Axis | 984 IPM |

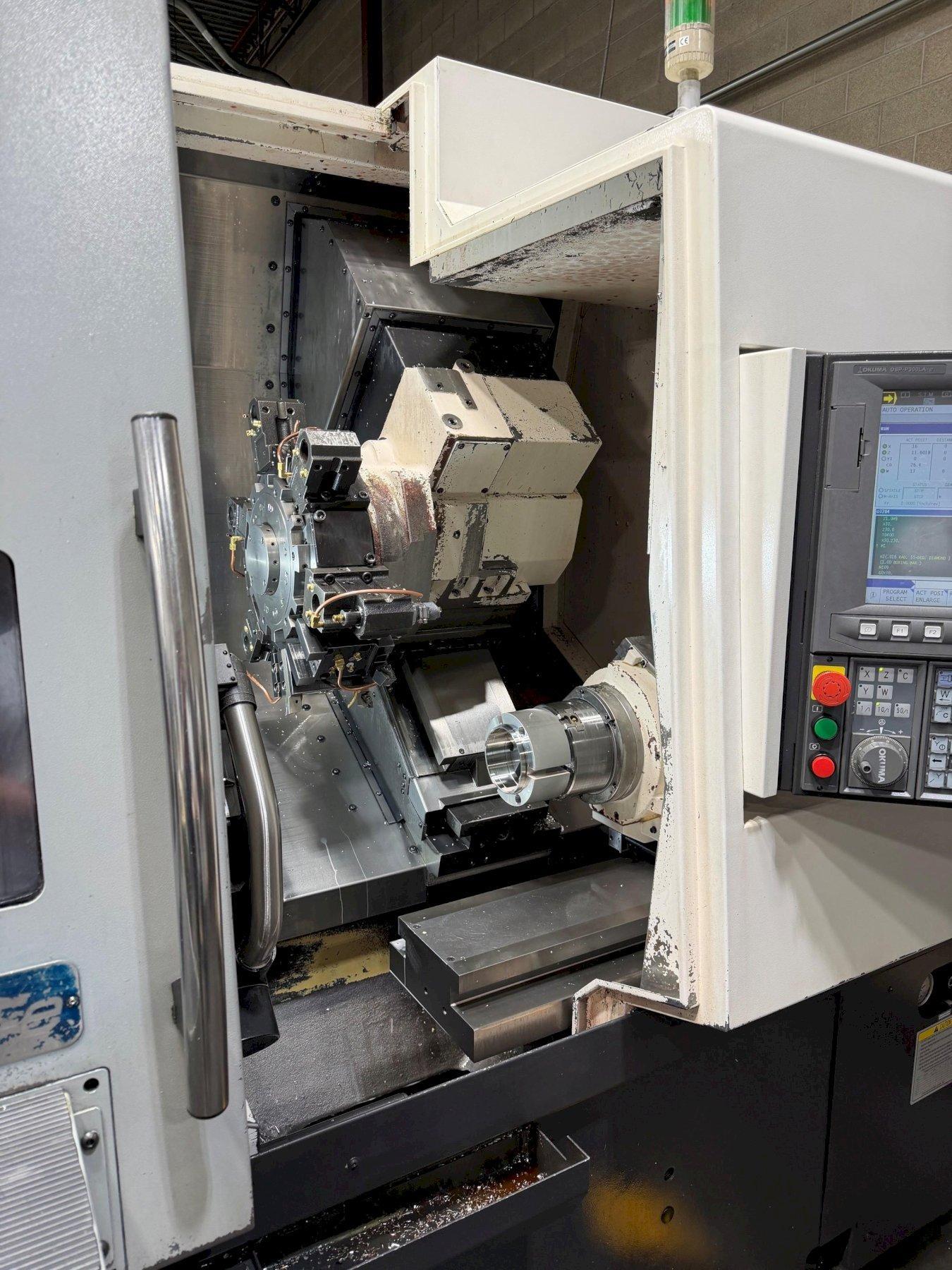

| Turret Capacity | 12 Stations |
| Dimensions | 119″ × 85″ × 87″ |
| Weight | 13,640 lbs |

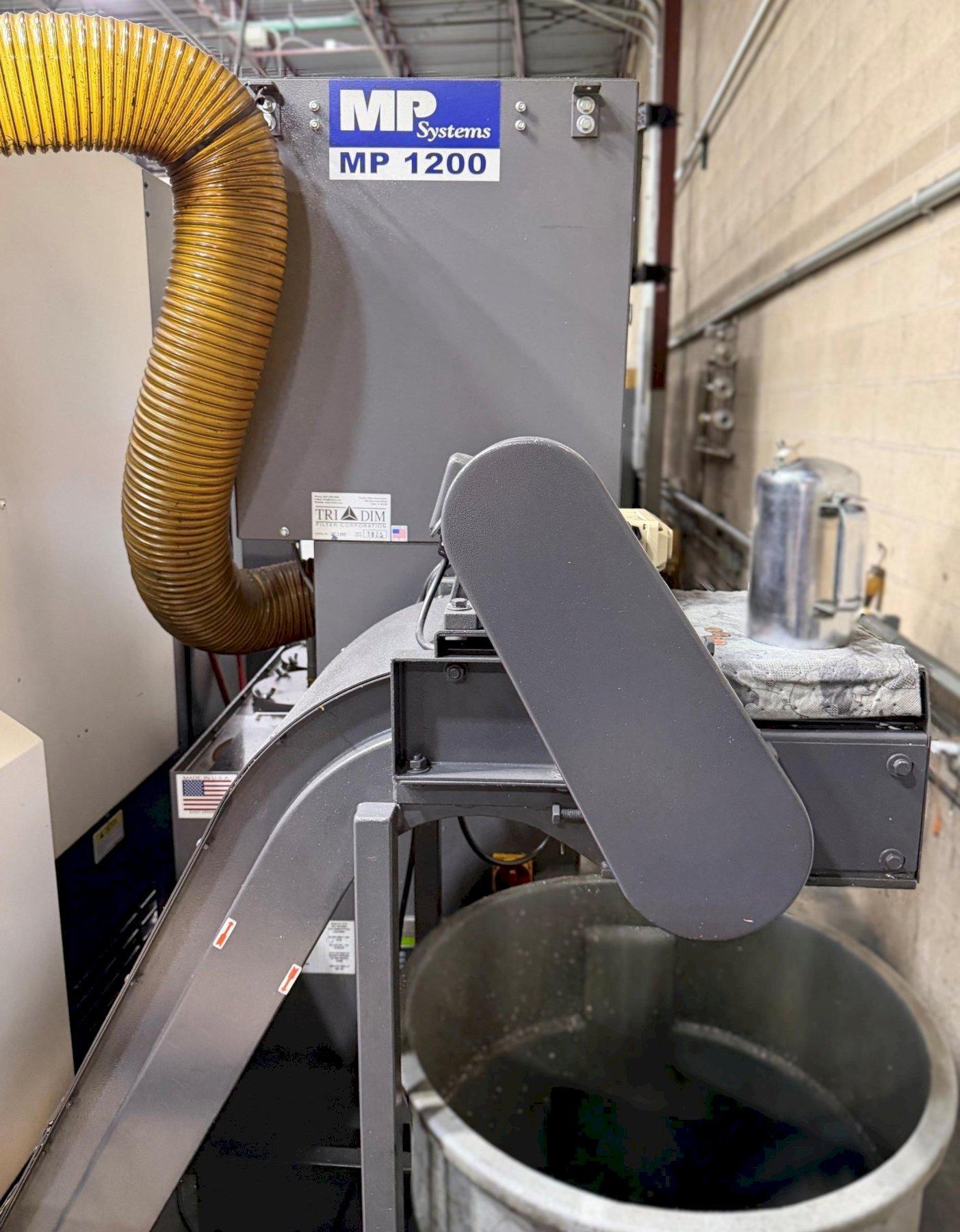

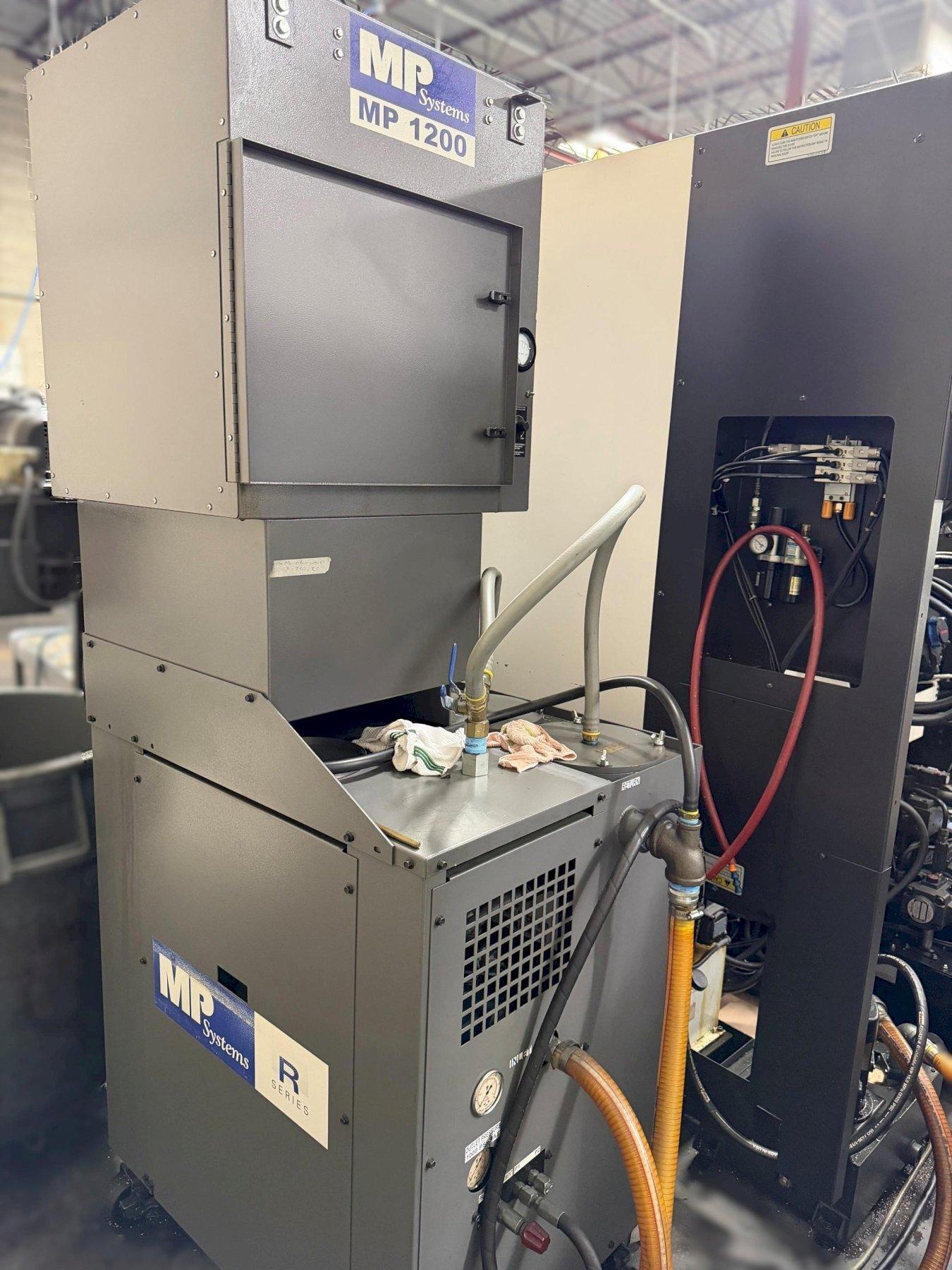

10" Chuck Main Spindle, 6" Chuck Sub Spindle, Y Axis, High Pressure Pump, Mist Collector, Parts Catcher
Turn Blocks
1ea. Turn Block
1ea. Double Turn Block (Front & Back)
2ea. Face Block (Front & Back)
1ea. Double Turn Block (Front & Back)
Bore Block
1 ea. 1.50 Dia. Double Bore Block (Front & Back)
2ea. 1.50 Dia. Bore Block (Front)
2ea. 1.50 Dia. Bore Block (Back)
Live Tools
4 ea. X Axis live Tools
2ea. Z live Tools
2ea. Z Double Live Tools (Front & Back)
