BrandHAEGER
Model618-MSP-He
Stock #7182
ConditionNot specified
Year2020
LocationFullerton, California
United States
| Ram Force | 900 lbs (4kN) to 12,000 lbs (53.4kN) |
| Repeatability | +/-2% of force setting |
| Throat Depth | 18" (457mm) |
| Stroke Length | 0 to 8.0" (0 to 200mm) |
| Adjustable Up Stroke | 3/8" - 6" (10 - 200mm) |
| Oil Tank Reservoir | 10 Gallons (39 Liters) |
| Hydraulic Pump Motor | 2 HP Electrical 200v to 575v 3 pgase 50 or 60hz |
| Weight | 1560 lbs. (7100Kg) |
| Dimensions Footprint (LxWxH) | 44" x 34" x 92" (1143mm x 467mm x 2338mm) |
| Fastener Ranger | M2 to M8 |
| Clinching Capability | 1mm to 6mm combined thickness |
BANK OWNED – OPEN TO ALL OFFERS

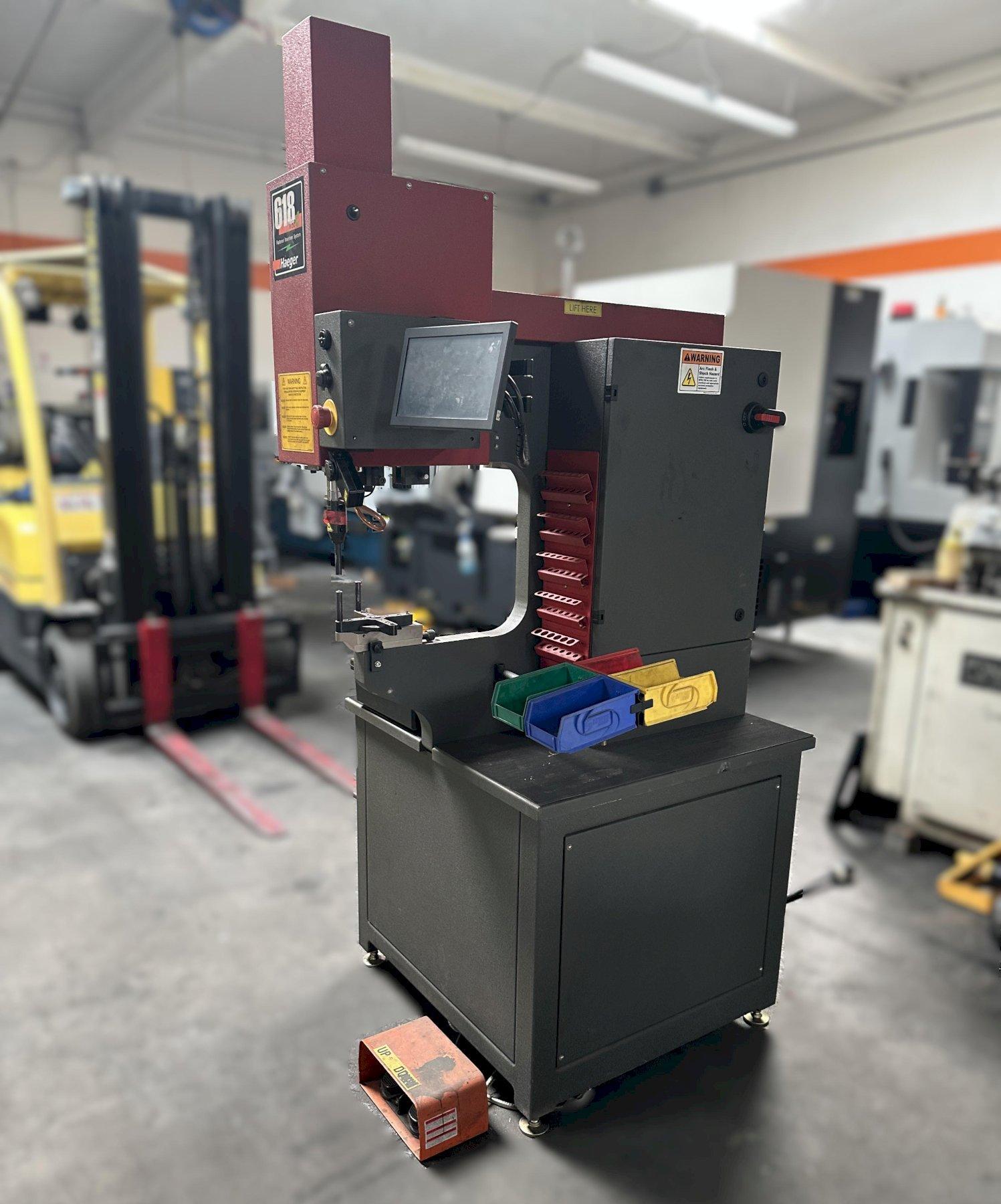

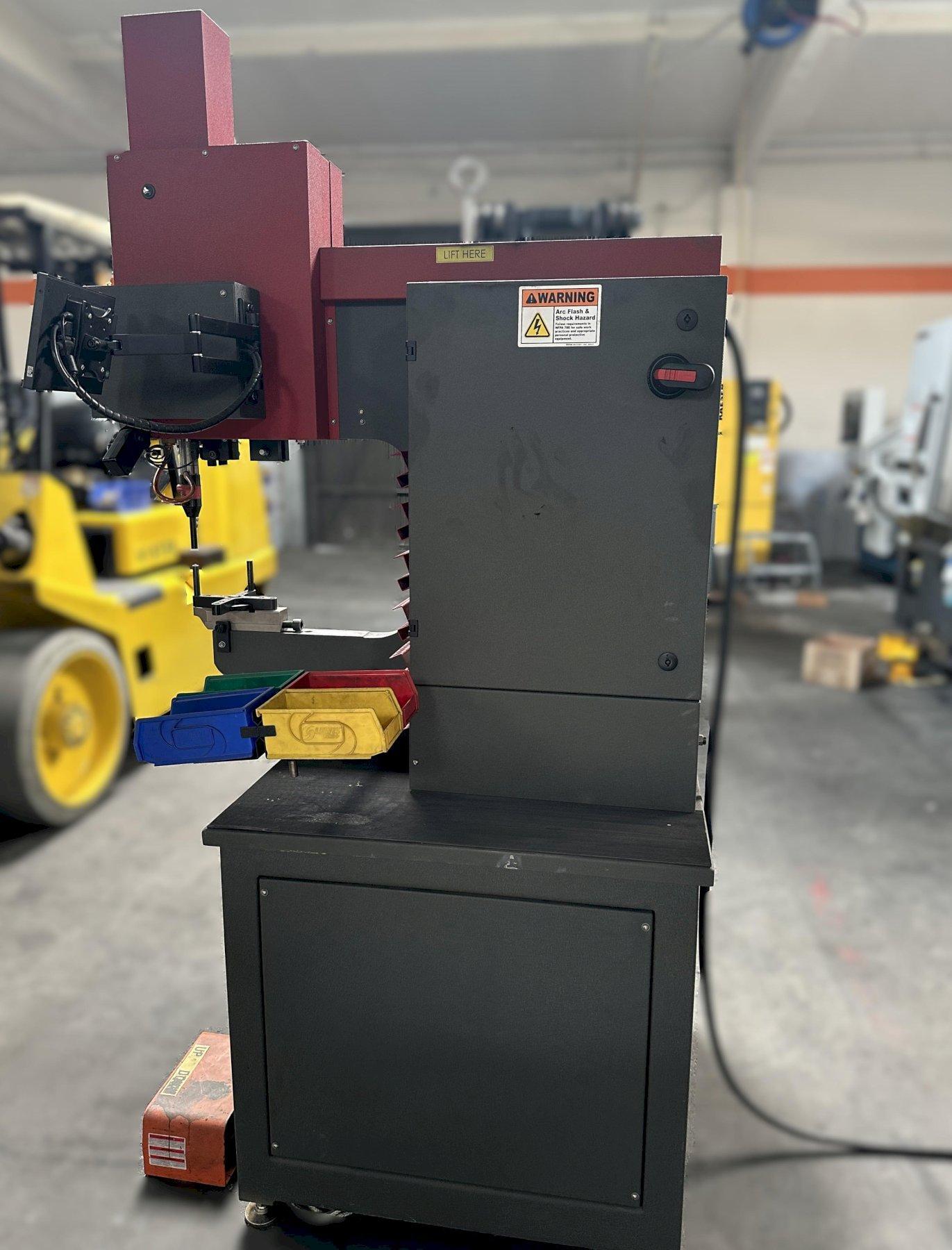

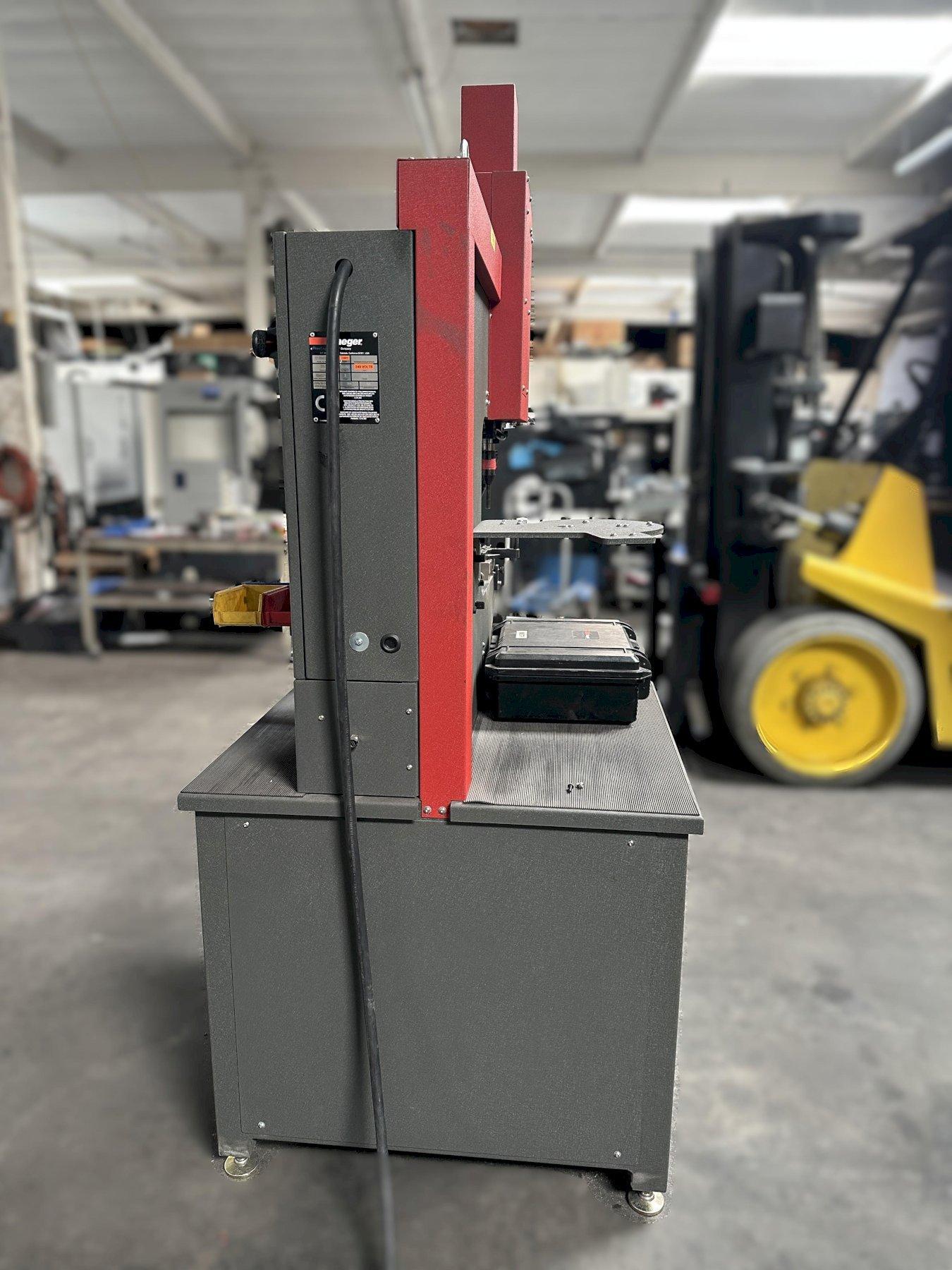

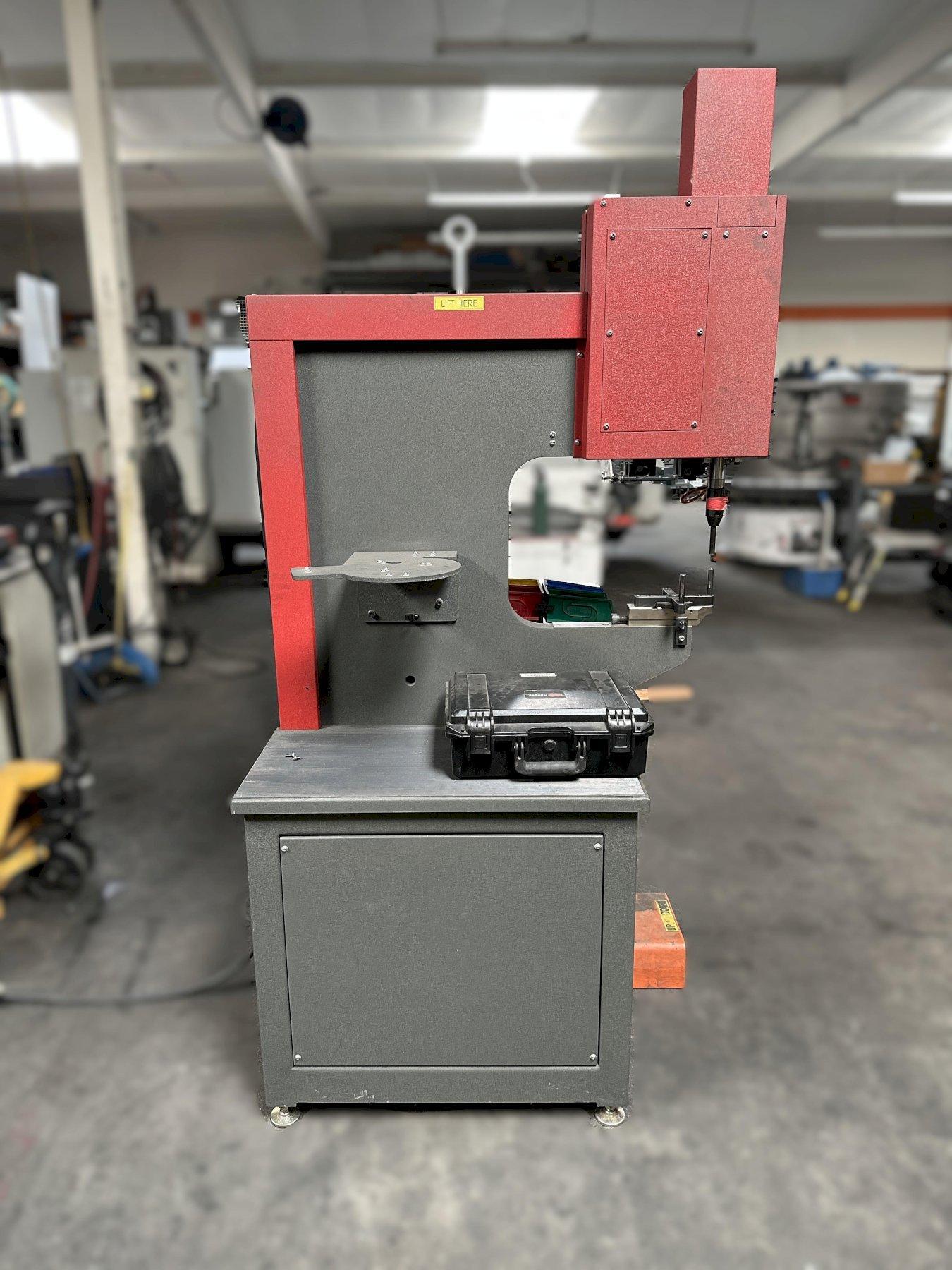

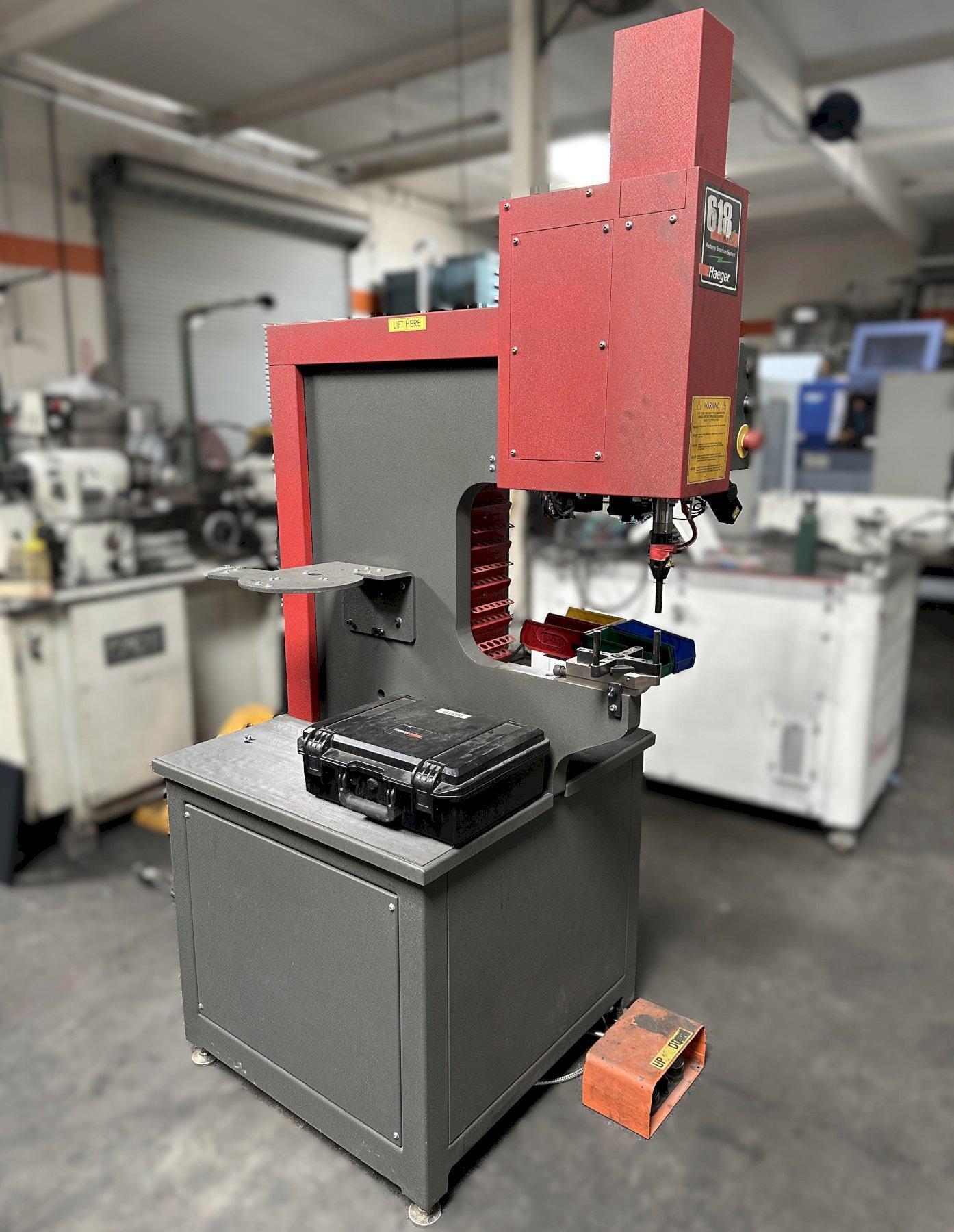

Haeger 618-MSP-He w/ TPS-Tooling Protection System Integrated, Integrated Batch Counter, Robust Hydraulics with in-tank hydraulic filter system, Variable dwell timer for use with hard material, and Adjustable Stroke 10 to 200mm
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery 2424 Cypress Way, Fullerton, Ca 92831
Financing Available / Se Habla Español
Before buying, let us know if you need shipping quotes
