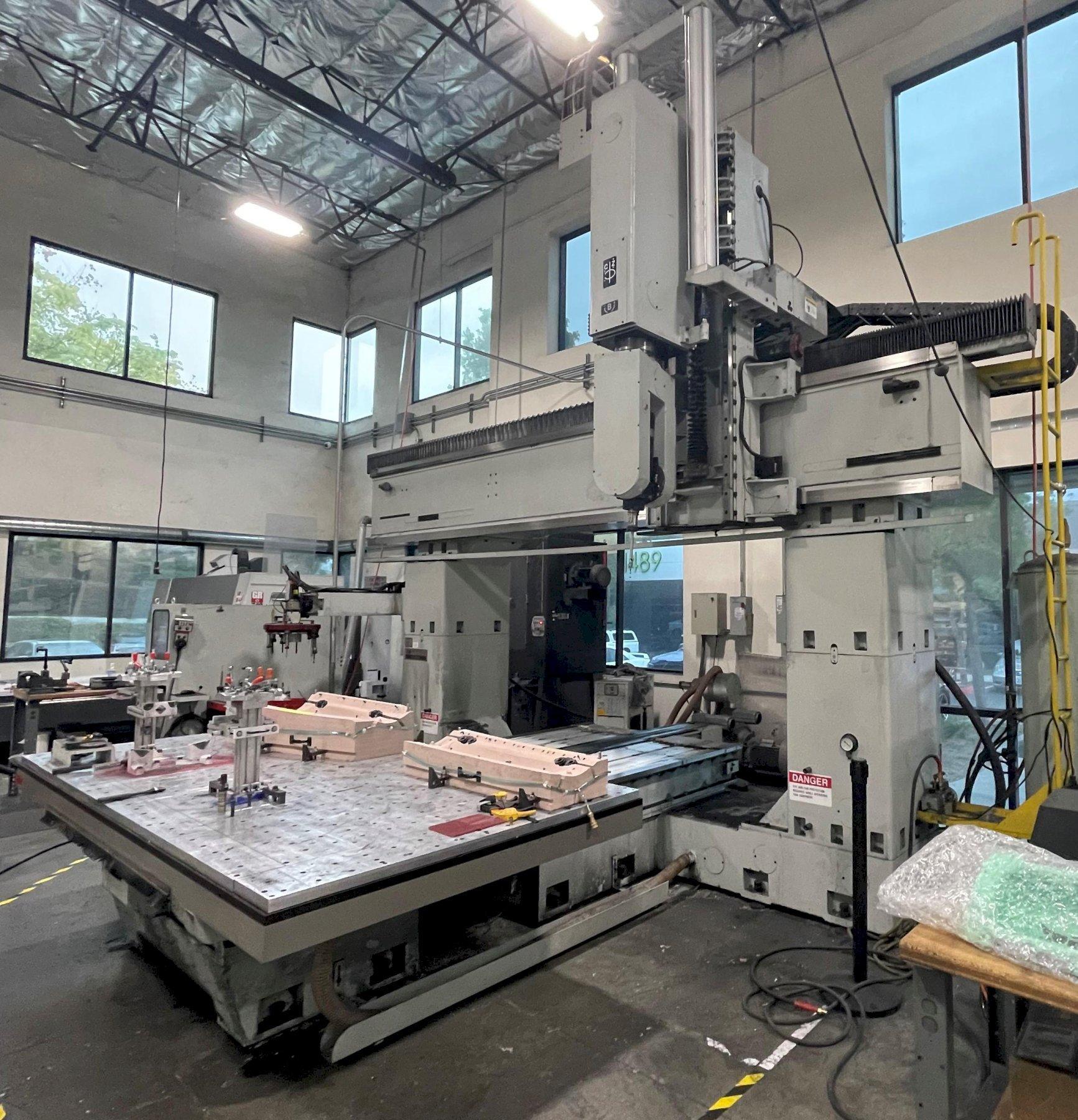

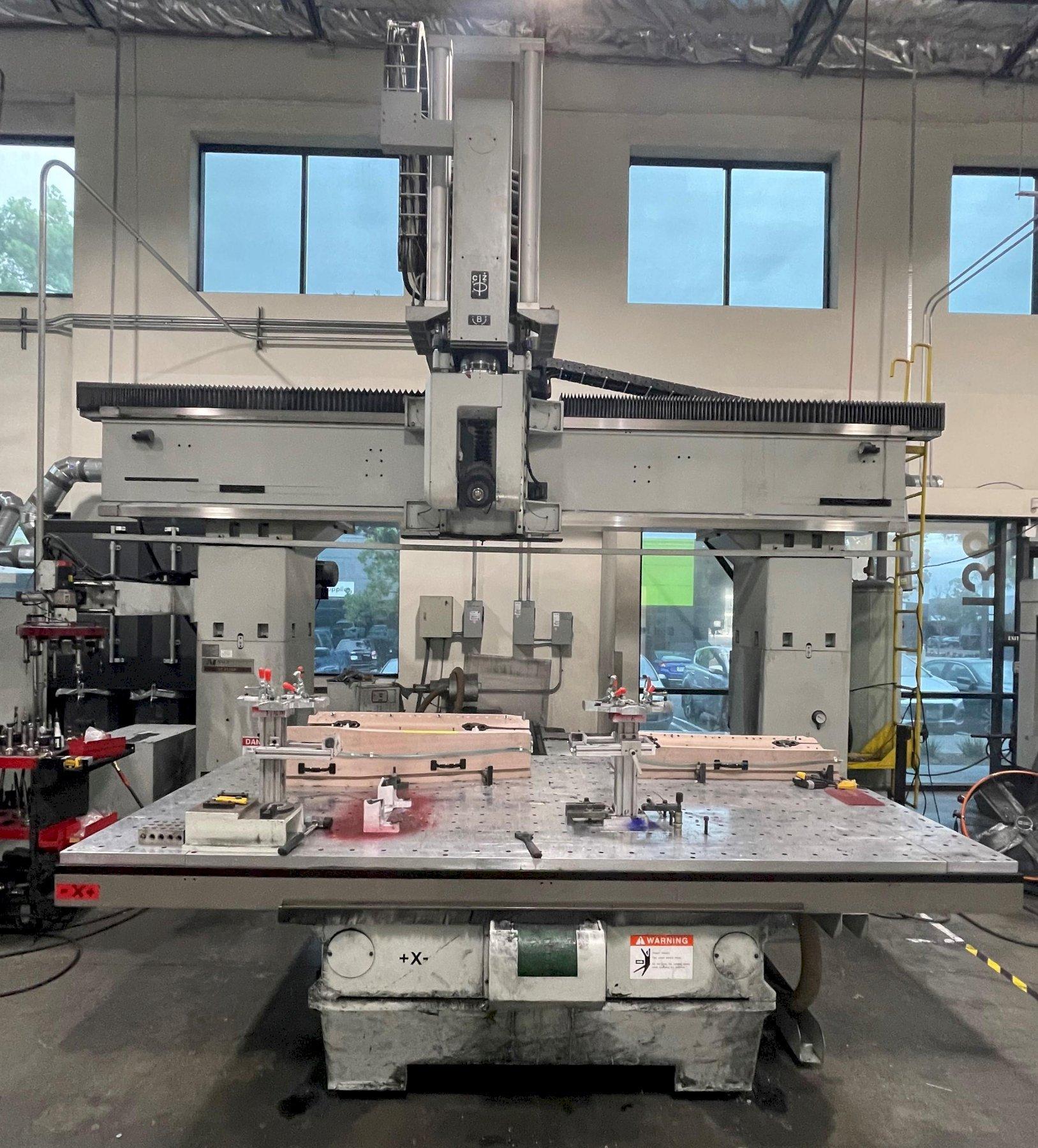

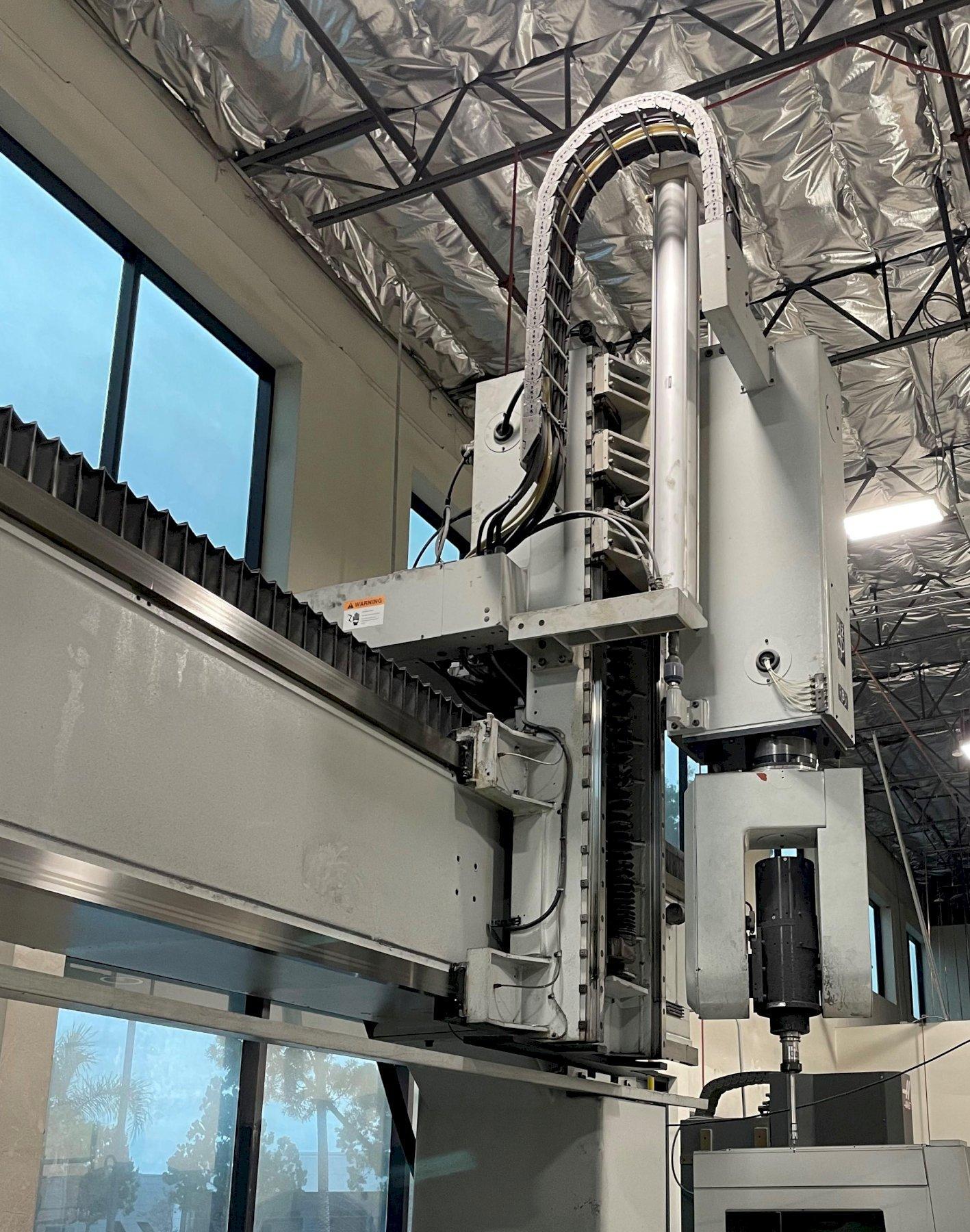

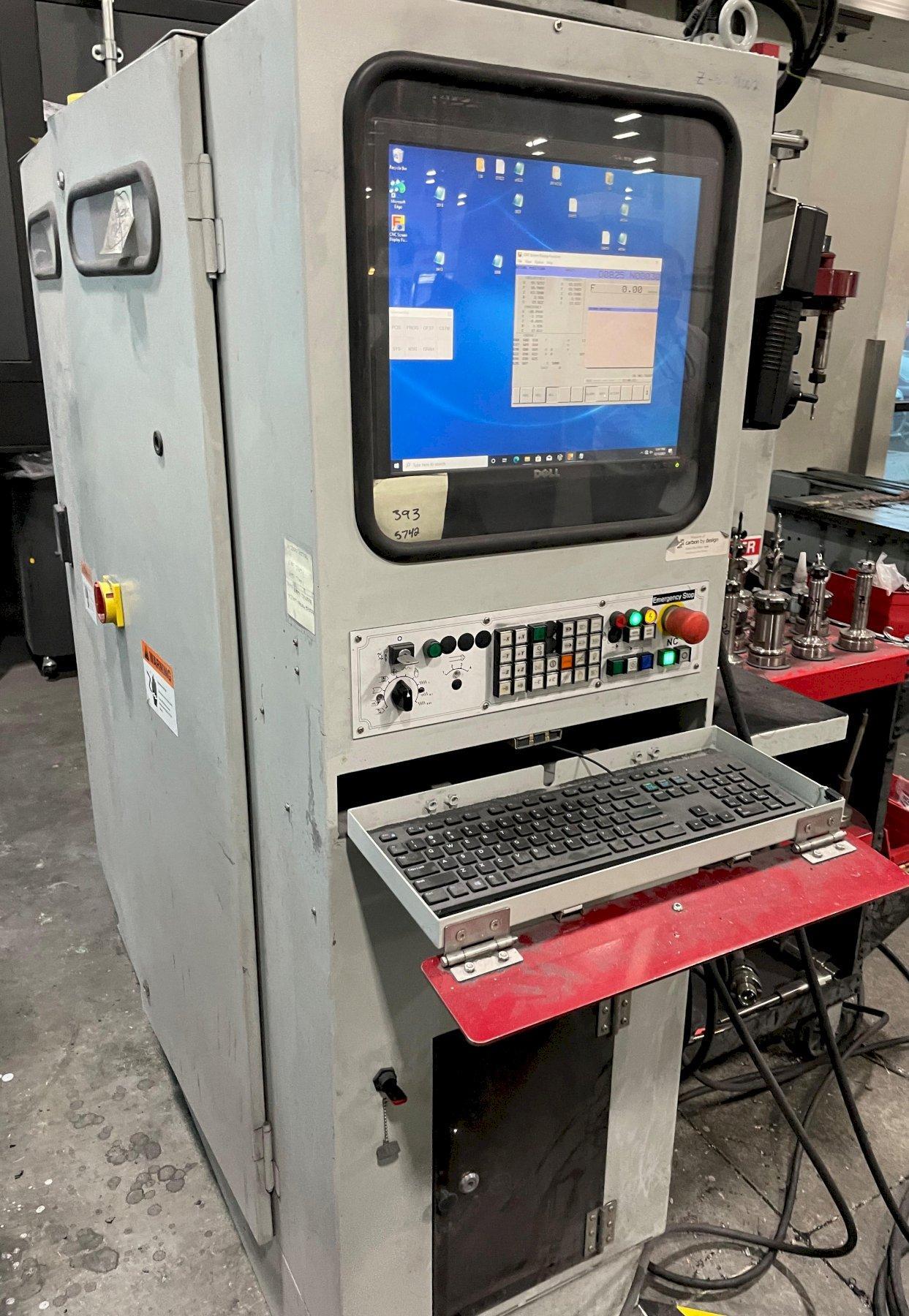

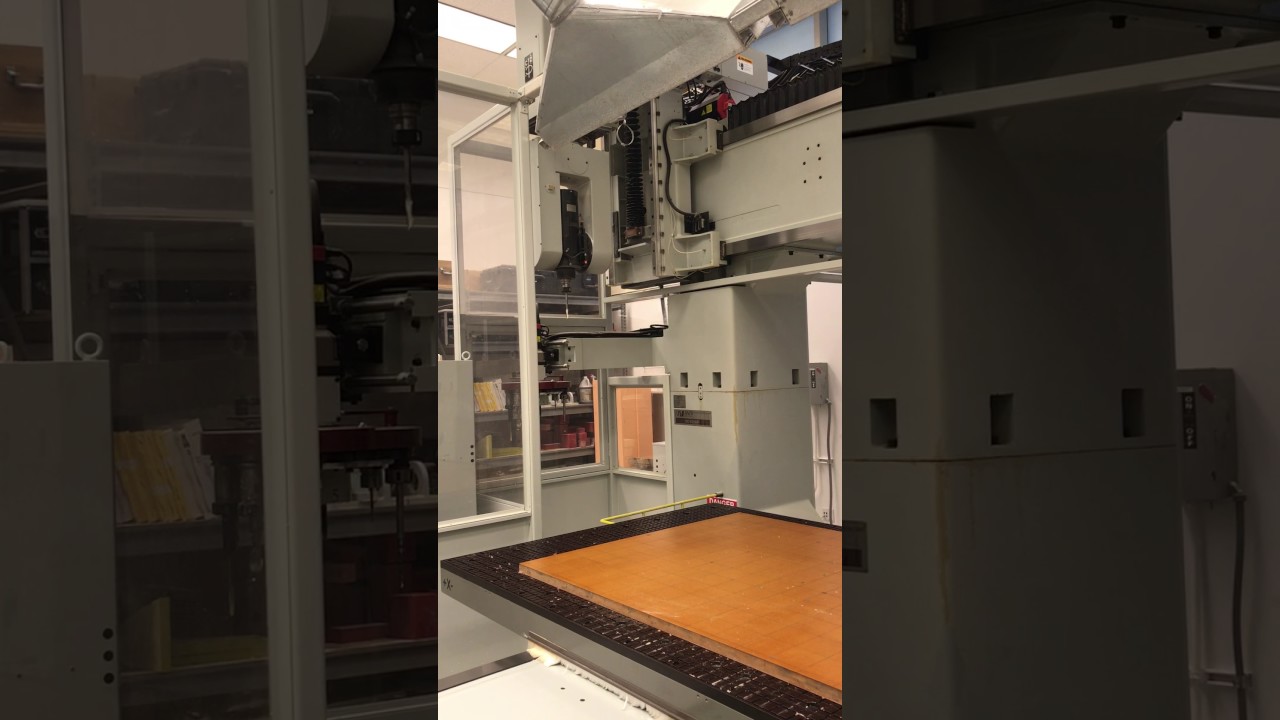

Anderson Maxxis 3116 NC 5-Axis CNC Router 2011 Fanuc 31iB5 CNC Control 63" x 122" Table 9-HP Vacuum System

Manufacturer
ANDERSON

Condition
Used

Model
Maxxis 3116

Stock #
5775

Year
2011

Equipped With

Table Size: 63" x 122" X-Axis: 173.2" Y-Axis: 78.74" Z-Axis: 47.24" B-Axis: +/- 105 Deg. C-Axis: +/- 200 Deg. Max. Rapid Rate on X&Y Axis: 2,340 IPM Max. Rapid Rate on Z Axis: 780 IPM Max. Rapid Rate on B&C Axis: 180 Deg./Sec. Max. Feedrate on X&Y Axis: 944 IPM Max. Feedrate on Z Axis: 780 IPM Spindle Type: HSK 63 F Speed: 1,000-18,000 RPM Motor: 15 HP Liquid Cooled Nose: HSK 63F Taper HSK Tool Holders: 20 Holders & 20 Collets Vacuum Hold Down System: 1 Pump Power: 9 HP Capacity: 168 CFM Pressure: 21.5" Hg Zones: 1 Electrical: 240V / 3-PH / 60Hz Machine Footprint: 160" x 134.4" x 186" Weight: 24,000 lbs.
